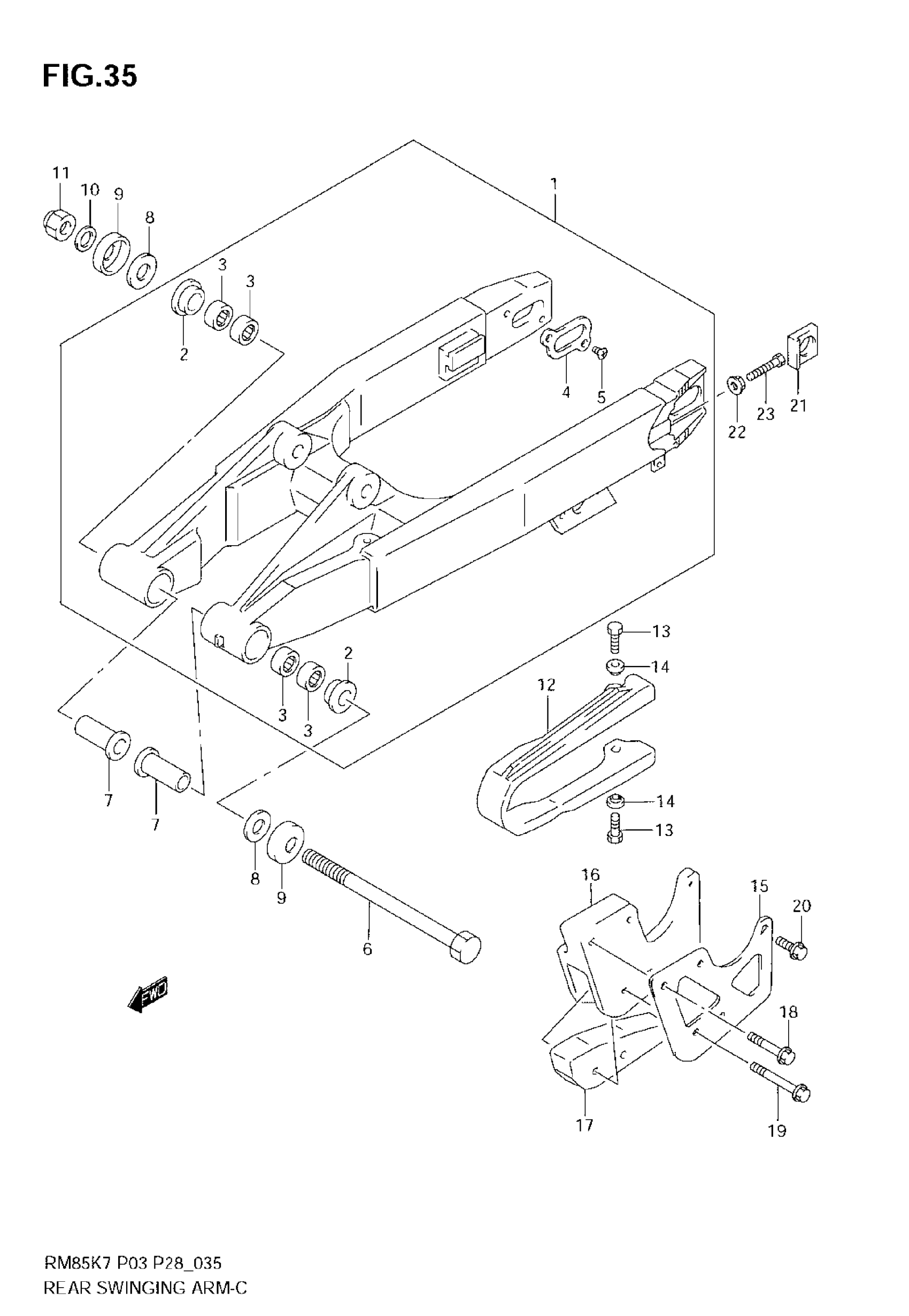

Suzuki RM85 (2008) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | RM85K7/K8

61000-03BB0

$1,361.40

1

SWINGING ARM ASSY, REAR | RM85LK7/LK8; Includes Item(s) 2 - 5 This part replaces 61000-03BC0.

61000-03BE0

$1,087.00

2

BUSHING

61261-02B00

$22.22

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

PLATE, SWINGINGARM REAR

61128-03B70

Unavailable

5

SCREW, PLATE

02122-0410B

$2.45

6

SHAFT, PIVOT

61211-02B40

$23.32

7

SPACER, PIVOT

61251-02B40

$32.88

8

THRUST WASHER

08211-12282

$2.65

9

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

$11.18

10

WASHER

08322-0112B

$2.62

11

NUT

08319-2112A

$3.76

12

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

$40.15

13

BOLT

09103-06234

$2.35

14

WASHER

09169-06057

$3.18

15

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

16

GUIDE, CHAIN

61343-02B40

$41.68

17

DEFENSE, CHAIN GUIDE

61348-02B20

$18.40

18

BOLT, UPPER (6X30)

09103-06251

$2.35

19

BOLT, LOWER (6X40)

09103-06241

$3.08

20

BOLT, REAR (6X16)

09103-06234

$2.35

21

WASHER, CHAIN ADJUSTER

61445-03B00

$35.35

22

NUT, ADJUSTER

09159-08034

$1.62

23

BOLT, ADJUSTER

09100-08301

$3.58
