2008 Suzuki RM85 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2008 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

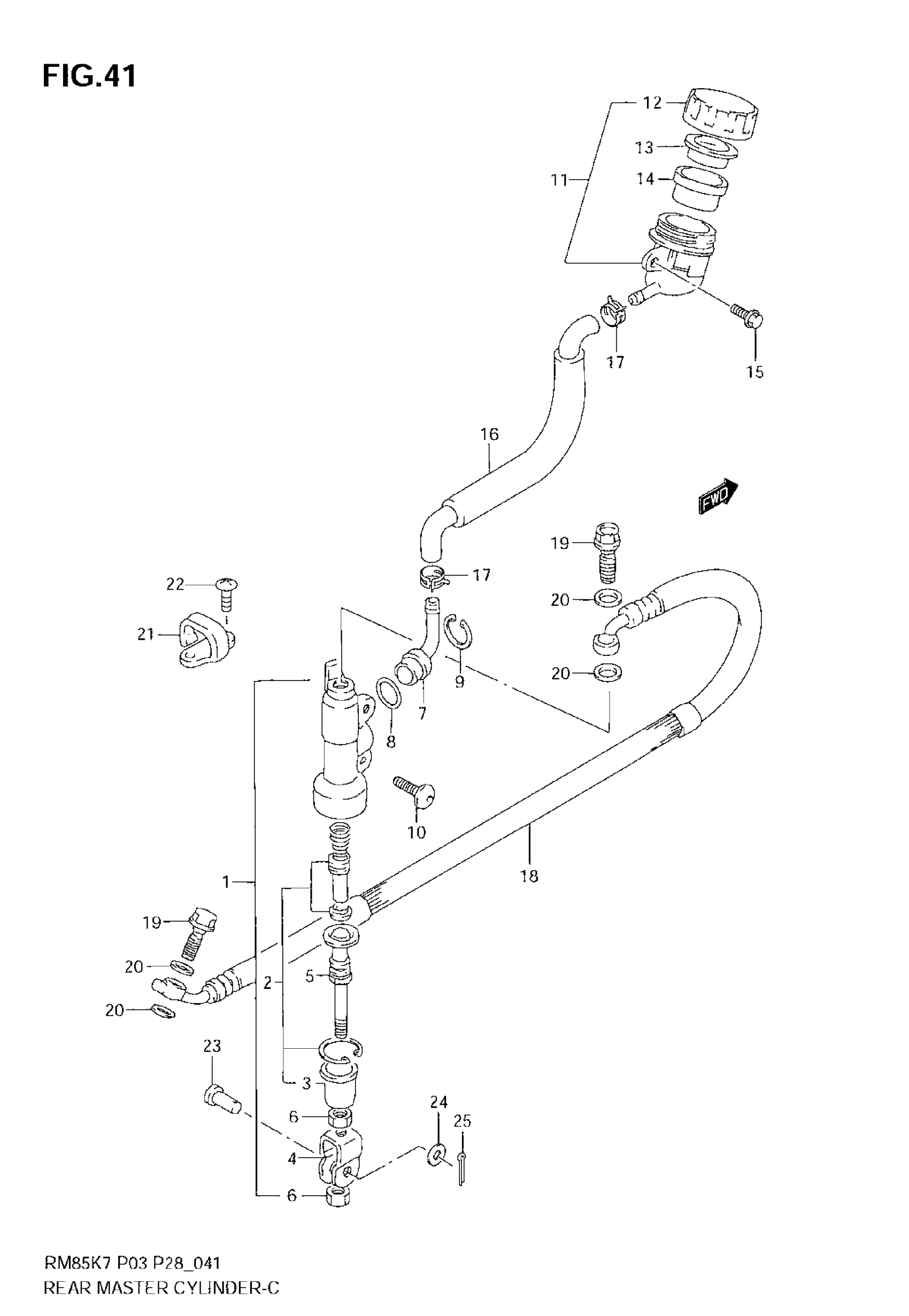

2008 Suzuki RM85 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-03B00

1
Out of stock

2

1

$32.18

In stock

3

.BOOT

69691-00A00

1
Out of stock

4

YOKE

69692-37F20

1
Out of stock

5

ROD, PUSH

69670-40A00

1
Out of stock

6

NUT

69693-05A00

2
Out of stock

7

CONNECTOR

69672-00B20

1
Out of stock

8

O RING

69686-34200

1
Out of stock

9

CIRCLIP

69674-00B20

1
Out of stock

10

BOLT

09139-06139

2
Out of stock

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-03D00

1
Out of stock

12

CAP

69669-03D00

1
Out of stock

13

PLATE

69668-00B20

1
Out of stock

14

DIAPHRAGM

69667-00B20

1
Out of stock

15

BOLT

09103-06233

1
Out of stock

16

HOSE, RESERVOIR TANK

69731-02B50

1
Out of stock

17

CLAMP

69735-00B20

2

$5.43

In stock

18

HOSE, REAR BRAKE | RM85K7/K8

69480-03B60

1
Out of stock

18

HOSE, REAR BRAKE | RM85LK7/LK8

69480-03B70

1
Out of stock

19

BOLT (10X1.25X22)

09360-10062

2
Out of stock

20

WASHER (10X15X1.5)

09161-10009

4
Out of stock

21

CLAMP, REAR BRAKE HOSE

61196-00B21

1
Out of stock

22

SCREW This part replaces 02142-0510A.

02142-0510B

2
Out of stock

23

PIN

09200-08048

1
Out of stock

24

WASHER This part replaces 09160-08119.

09160-08090

1
Out of stock

25

PIN, COTTER

04111-2015A

1
Out of stock
