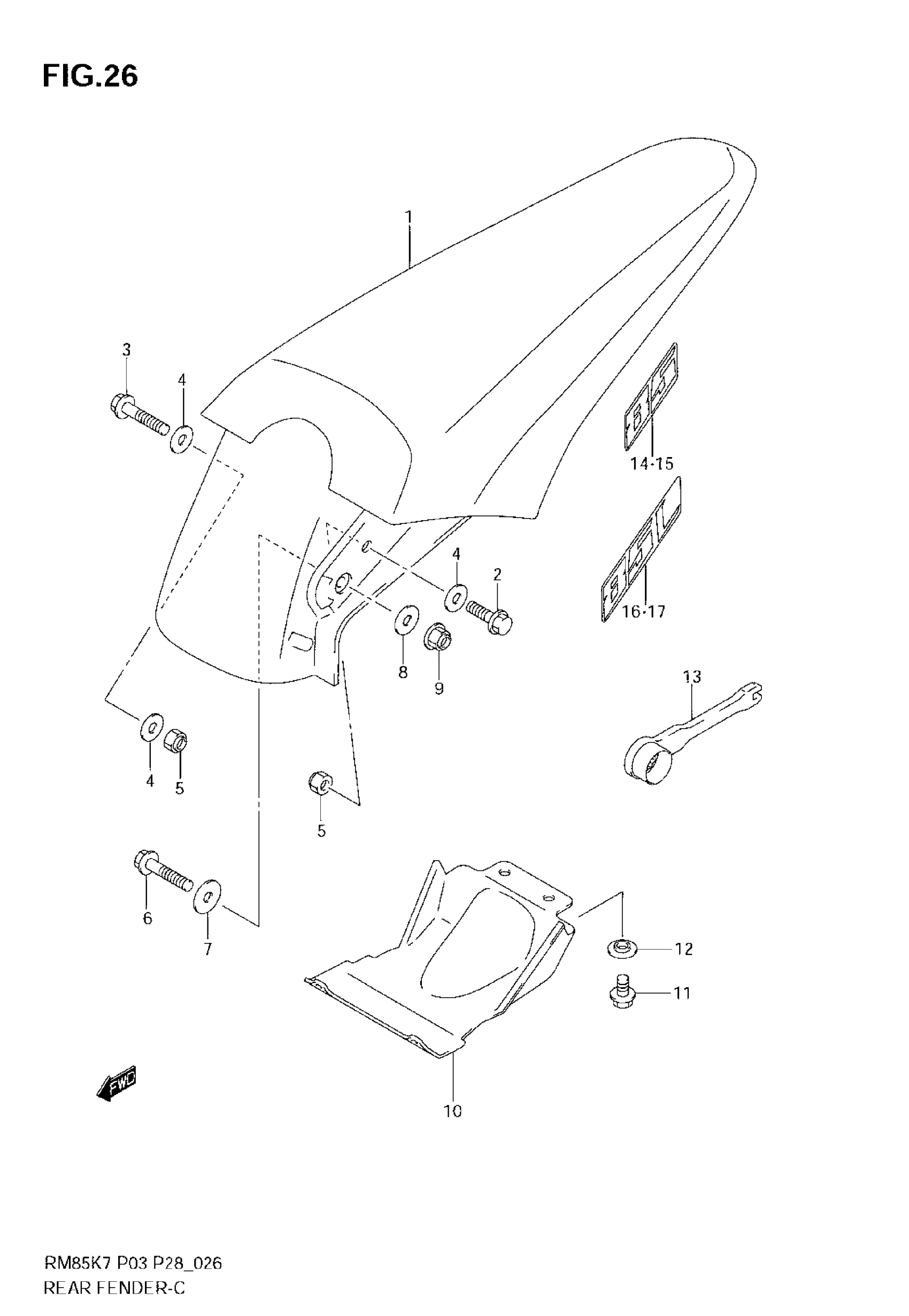

Suzuki RM85 (2008) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-03B60-YU1

$51.57

2

BOLT This part replaces 09103-06235.

01547-06207

$2.01

3

BOLT, RH

09103-06251

$2.35

4

WASHER

09160-06077

$1.91

5

NUT

08319-2106A

$1.91

6

BOLT, FRONT SIDE

09103-06251

$2.35

7

WASHER, INNER

09160-06135

$2.17

8

WASHER, OUTER

09160-06084

$1.78

9

NUT

08319-3106B

$2.45

10

MUD GUARD, REAR FENDER FRONT

63351-03B00

$34.87

11

BOLT

01547-0610B

$2.45

12

WASHER

09169-06010

$2.60

13

BOX SPANNER, 21

09816-00182

Unavailable

14

EMBLEM, RH | RM85

68175-03B50-GY8

$16.78

15

EMBLEM, LH | RM85

68176-03B50-GY8

$16.78

16

EMBLEM, RH | RM85L

68175-03B60-GY8

Unavailable

17

EMBLEM, LH | RM85L

68176-03B60-GY8

Unavailable
