2008 Suzuki RM85 Rear Cushion Lever Diagram

← All diagrams

Find the part on the Rear Cushion Lever diagram for your 2008 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

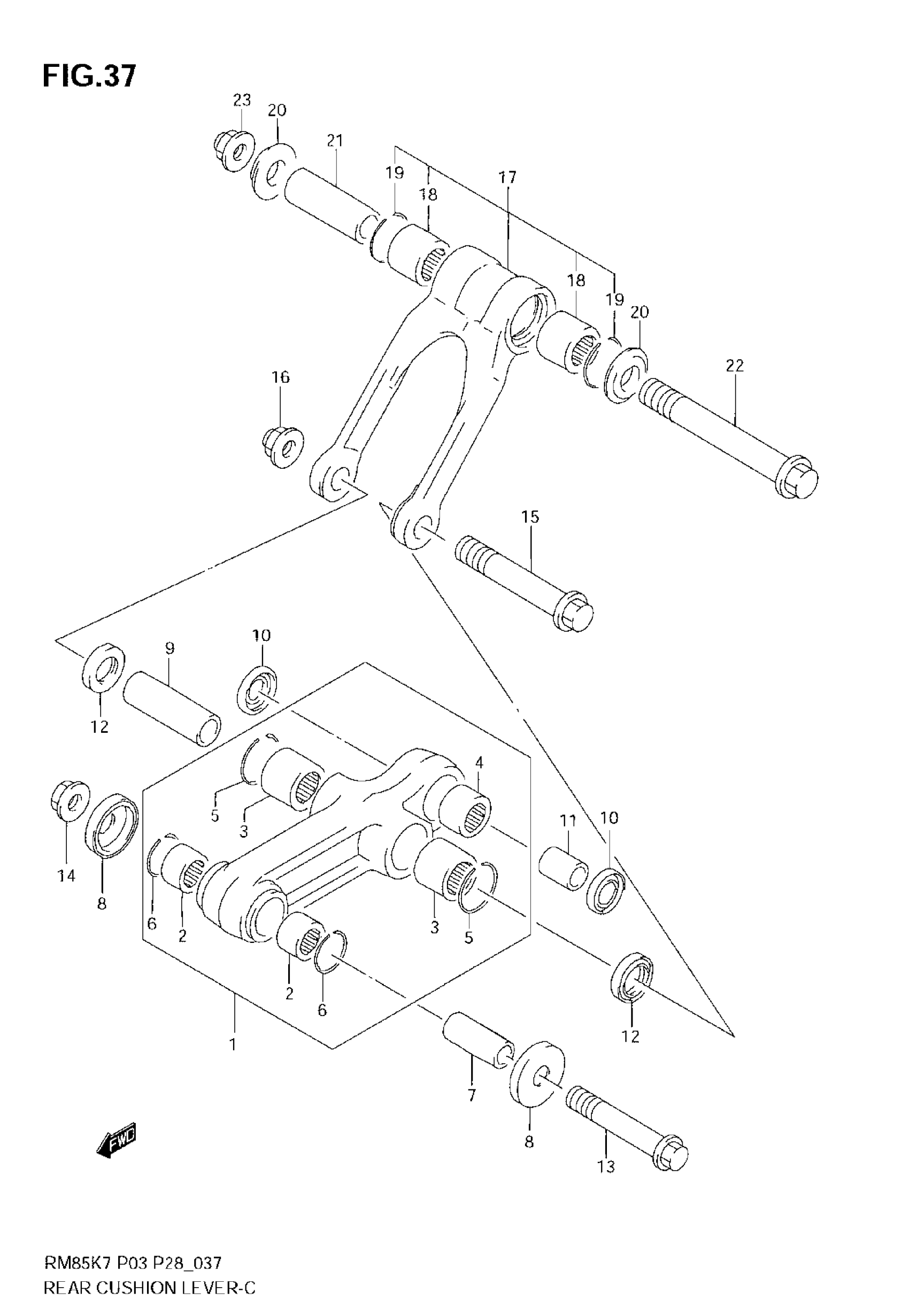

2008 Suzuki RM85 Rear Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 6

62600-03890

1
Out of stock

2

BEARING, FRONT (14X20X12)

09263-14027

2
Out of stock

3

.BEARING This part replaces 09263-17039.

09263-17058

2
Out of stock

4

BEARING, REAR (20X26X12)

09263-20083

1
Out of stock

5

RING, STOPPER

62657-34A01

2
Out of stock

6

RING, STOPPER FRONT

09381-20004

2
Out of stock

7

SPACER, RR CUSHION LEVER FR

62317-02B40

1
Out of stock

8

OIL SEAL This part replaces 62162-03B00.

62162-03B01

2
Out of stock

9

SPACER, CENTER (12X17X54)

62626-02B40

1
Out of stock

10

DUST SEAL, REAR

09284-20001

2
Out of stock

11

SPACER, REAR

62684-36E00

1
Out of stock

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

2
Out of stock

13

BOLT, FRONT (10X64)

62658-02B40

1
Out of stock

14

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

1
Out of stock

15

SHAFT, CENTER (12X87)

62621-02B40

1
Out of stock

16

NUT

08319-3112A

1
Out of stock

17

ROD SET, CUSHION LEVER | Includes Item(s) 18 - 19

62600-03880

1
Out of stock

18

.BEARING This part replaces 09263-17039.

09263-17058

2
Out of stock

19

RING, STOPPER

62657-34A01

2
Out of stock

20

SPACER, ROD (12X31X4)

62647-02B40

2
Out of stock

21

SPACER, ROD (12X17X50)

62646-02B40

1
Out of stock

22

BOLT (12X115)

62622-02B40

1
Out of stock

23

NUT

08319-3112A

1
Out of stock
