2008 Suzuki RM85 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2008 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

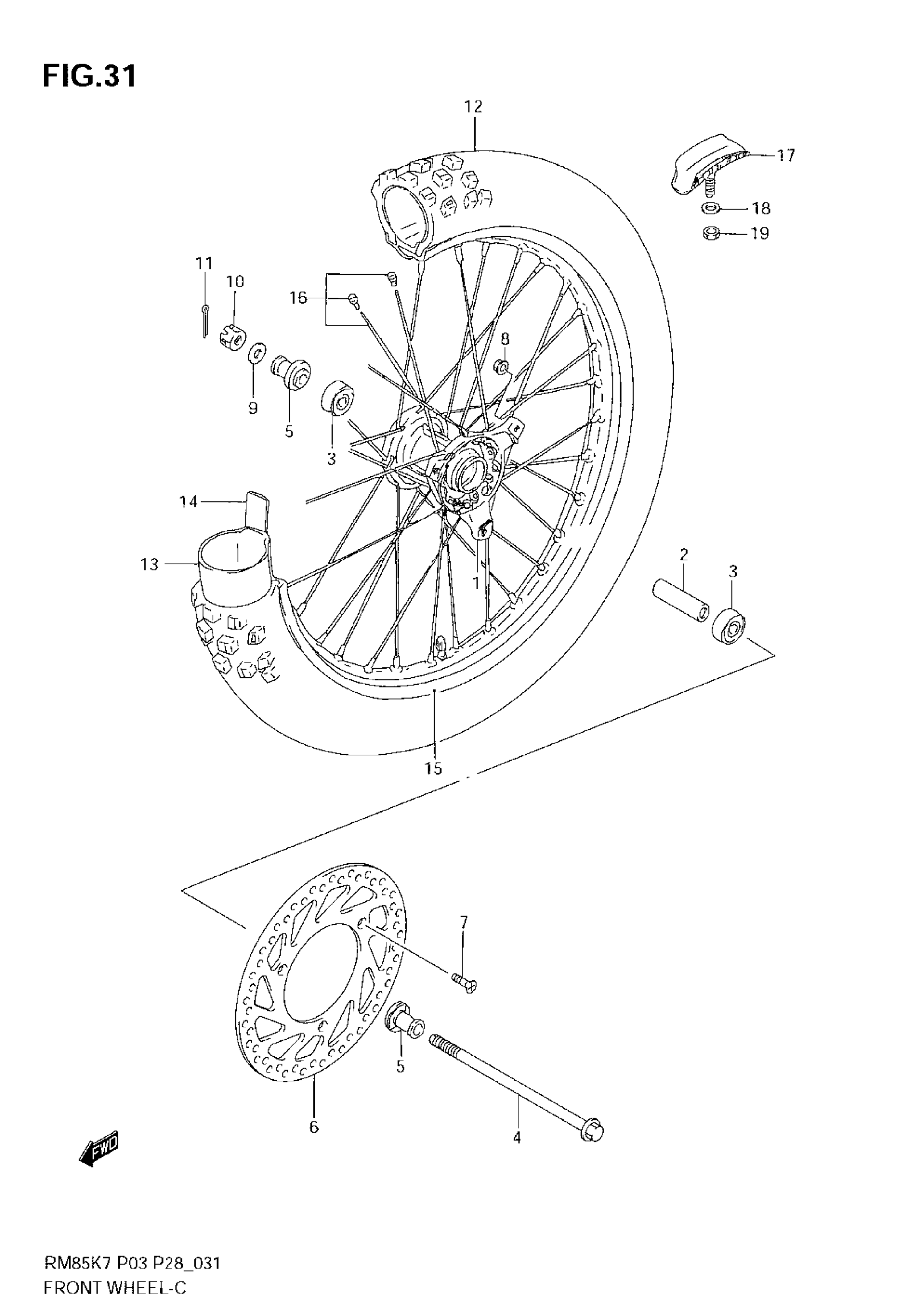

2008 Suzuki RM85 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FR WHEEL

54111-02B42

1
Out of stock

2

SPACER, FR HUB BEARING

54731-02B40

1
Out of stock

3

BEARING

08133-62017

2
Out of stock

4

AXLE, FRONT

54711-03B00

1
Out of stock

5

SPACER, FR AXLE

54740-02B40

2
Out of stock

6

DISC, FRONT BRAKE

59221-03B00

1
Out of stock

7

SCREW (6X22)

09126-06009

3
Out of stock

8

NUT

08319-3106A

3
Out of stock

9

WASHER

08211-12204

1
Out of stock

10

NUT

08314-4012B

1
Out of stock

11

COTTER PIN

04111-2020A

1
Out of stock

12

TIRE, FRONT (70/100-17 40M D737F)(DUNLOP)

55110-02B70

1
Out of stock

13

TUBE ASSY, INNER

55200-02B70

1
Out of stock

14

PROTECTOR, INNER TUBE

55261-02B40

1
Out of stock

15

RIM, FRONT WHEEL (1.40X17)

55311-02B10

1
Out of stock

16

SPOKE SET, FRONT WHEEL

55320-02B10

1
Out of stock

17

STOPPER, BEAD

65270-28600

1
Out of stock

18

WASHER

08322-0108B

1
Out of stock

19

NUT

08310-0008B

1
Out of stock
