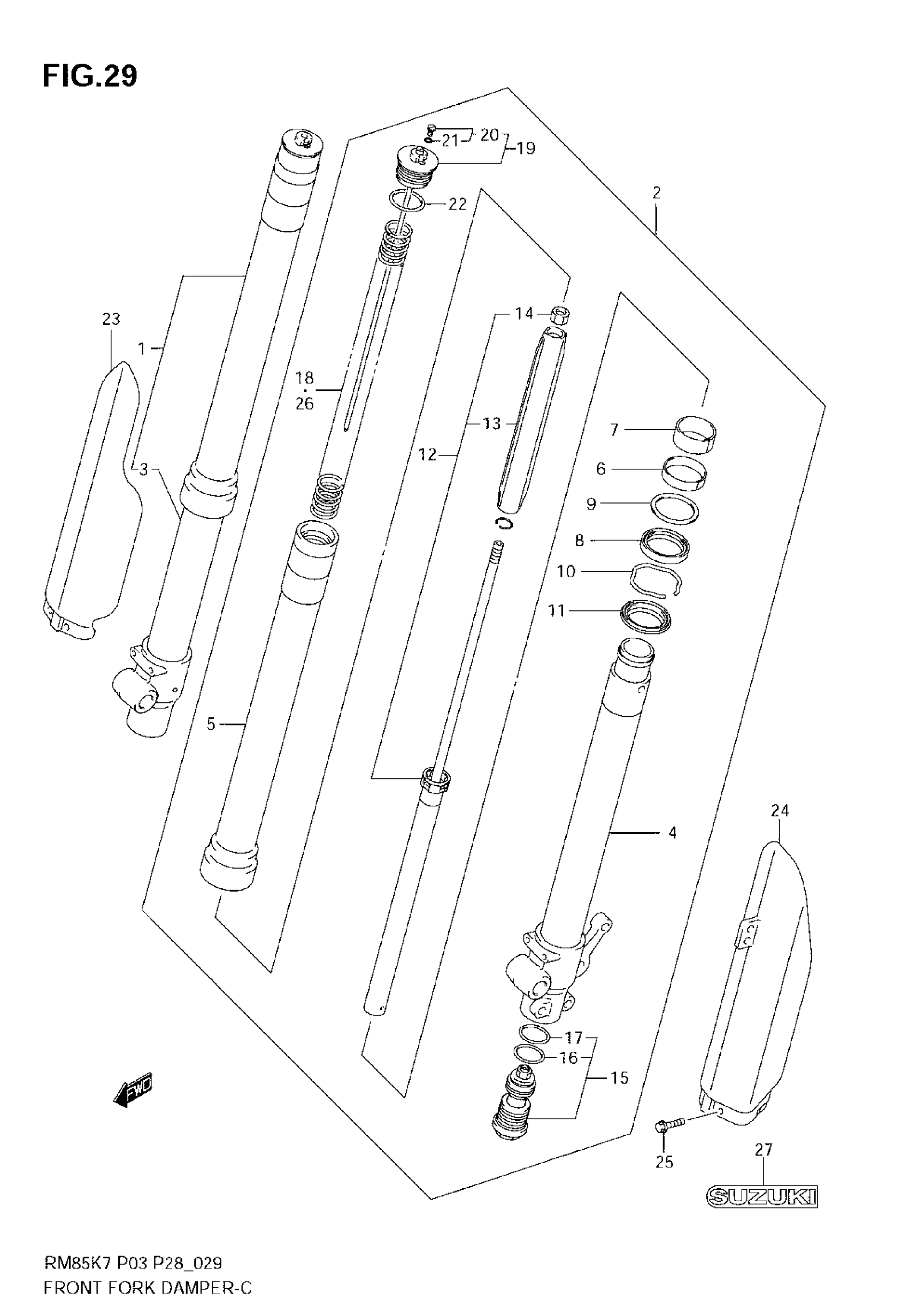

Suzuki RM85 (2008) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-03B70

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 22

51104-03B70

Unavailable

3

TUBE, INNER RH

51110-03B30

Unavailable

4

TUBE, INNER LH

51120-03B70

Unavailable

5

TUBE, OUTER

51130-03B30

$760.17

6

BUSH, GUIDE

51167-03B30

$20.80

7

BUSH, SLIDE

51121-03B30

$18.75

8

SEAL, OIL

51153-03B30

$18.51

9

SPACER, SEAL This part replaces 51158-03B30.

51168-38A00

$6.72

10

RING, STOPPER

51156-03B30

$6.17

11

SEAL, DUST

51173-03B30

$29.10

12

CYLINDER

51190-03B70

Unavailable

13

GUIDE, SPRING

51172-03B30

$29.33

14

NUT

51129-03B30

Unavailable

15

BOLT, CENTER

51170-03B70

Unavailable

16

O RING

51177-36E20

$4.10

17

O RING

51175-03B30

$6.05

18

SPRING, FRONT (K=0.28)

51171-03B50

Unavailable

19

BOLT, FORK

51351-03B70

$174.33

20

BOLT, PLUG

51357-27C40

$10.45

21

O RING

51117-19C10

$4.10

22

O RING

51117-29EA0

$4.90

23

PROTECTOR, RH

51501-03B10

Unavailable

24

PROTECTOR, LH

51511-03B20

Unavailable

25

BOLT

09103-06256

$2.28

26

SPRING, FRONT (K=0.26) | OPT,SOFT

51171-03B30

Unavailable

26

SPRING, FRONT (K=0.30) | OPT,HARD

51171-03B60

Unavailable

27

EMBLEM, "SUZUKI"

68111-03410-DSV

Unavailable
