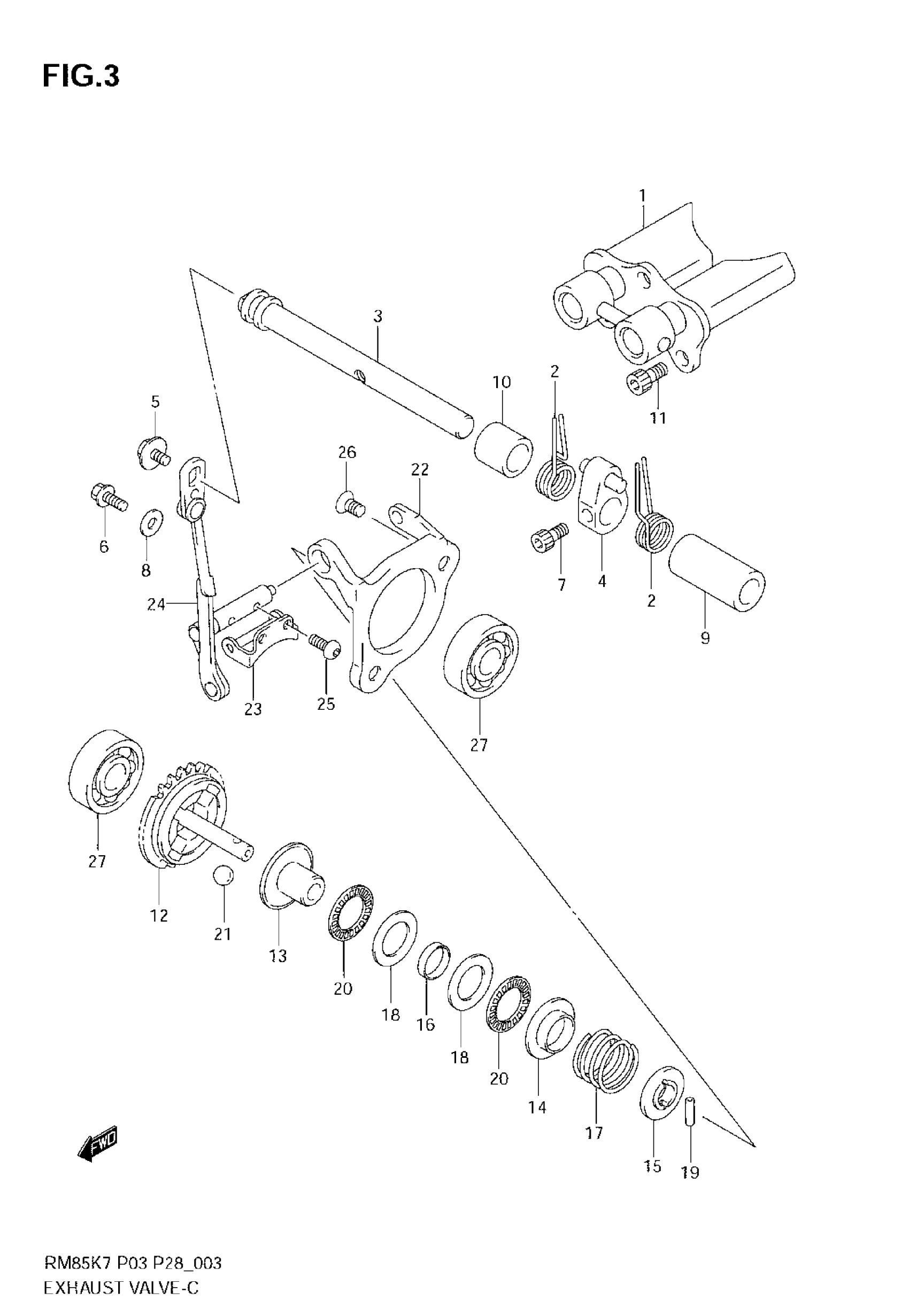

Suzuki RM85 (2008) EXHAUST VALVE Diagram

#

Description
Price

1

VALVE ASSY, EXHAUST

11250-03B10

$505.80

2

SPRING, EXHAUST VALVE SHAFT ARM

11257-36F11

$7.57

3

SHAFT, EXHAUST VALVE

11259-03B10

$69.38

4

ARM, EXHAUST VALVE

11270-36F10

$85.35

5

BOLT (5X10)

09103-05022

$1.86

6

BOLT (6X10)

09103-06256

$2.28

7

BOLT (4X8)

09106-04003

$2.07

8

WASHER (6.5X14X2.3)

09160-06127

$2.30

9

SPACER (8.2X15X1.6)

09180-08138

$2.63

10

SPACER (8.5X12X11)

09180-08189

$2.58

11

BOLT (5X12)

07130-0512B

$2.50

12

GOVERNOR SET, EXHAUST

12670-03810

$112.37

13

GOVERNOR, DRIVEN

12672-36F10

$38.55

14

STOPPER, GOVERNOR SPRING

12674-36F10

$28.27

15

STOPPER, GOVERNOR SPRING

12675-36F11

$21.03

16

SPACER, GOVERNOR

12676-36F10

$17.70

17

SPRING, GOVERNOR

12677-03B00

$5.10

18

SHIM (15X28X1)

09181-15223

$2.53

19

PIN (3X12.5)

09261-03017

$2.45

20

BEARING (15X25X2)

09263-15003

$8.29

21

BALL

06111-12004

$1.93

22

BASE, ACTUATOR

12681-03B00

$159.76

23

ARM, ACTUATOR

12682-36F21

$9.55

24

ACTUATOR, EXHAUST

12689-03B10

$60.18

25

BOLT (4X8)

09106-04004

$2.15

26

SCREW (5X10)

09120-05003

$1.91

27

BEARING (8X22X7)

09262-08005

$12.67
