2008 Suzuki RM85 Crankcase Cover- Water Pump Diagram

← All diagrams

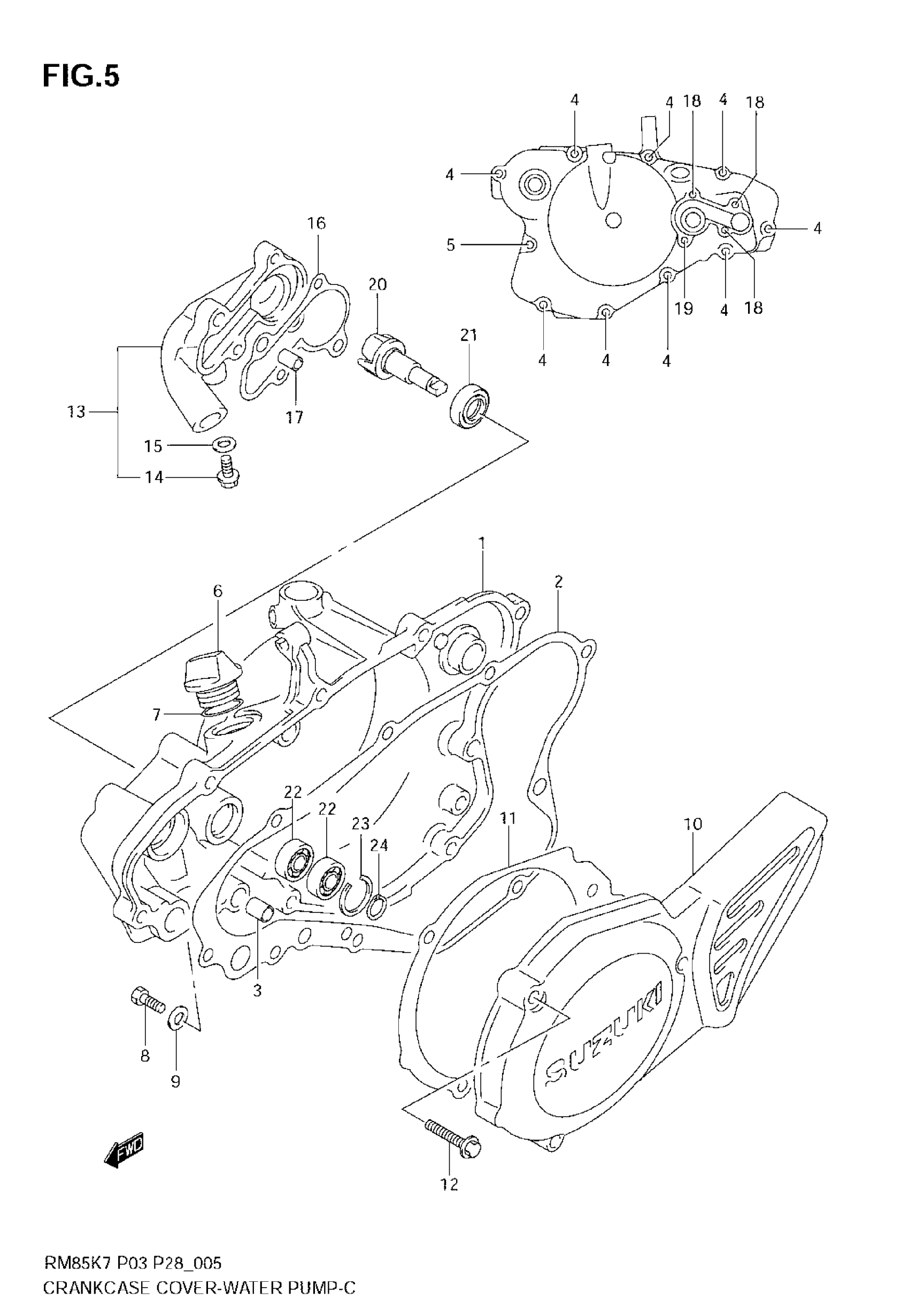

Find the part on the Crankcase Cover- Water Pump diagram for your 2008 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki RM85 Crankcase Cover- Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-03B00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-27C02

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

BOLT

09103-06250

9
Out of stock

5

BOLT

09103-06252

1
Out of stock

6

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

7

O RING, OIL FILLER PLUG

09280-17003

1
Out of stock

8

SCREW, OIL LEVEL (6X10)

07120-0610B

1
Out of stock

9

GASKET

09168-06004

1
Out of stock

10

COVER, MAGNETO

11351-03B00

1
Out of stock

11

GASKET, MAGNETO COVER

11483-03B00

1
Out of stock

12

BOLT

09103-06250

3
Out of stock

13

CASE, WATER PUMP | Includes Item(s) 14 - 15

17410-03B00

1
Out of stock

14

BOLT, DRAIN

17415-43D00

1
Out of stock

15

GASKET

17413-28C10

1
Out of stock

16

GASKET, WATER PUMP CASE

17431-02B42

1
Out of stock

17

PIN (L:12)

04211-09129

2
Out of stock

18

BOLT

01547-06207

2
Out of stock

19

BOLT

09103-06251

2
Out of stock

20

IMPELLER, WATER PUMP

17491-02B41

1
Out of stock

21

OIL SEAL, WATER PUMP

17461-03B00

1
Out of stock

22

BEARING (8X19X6)

08113-06980

2
Out of stock

23

CIRCLIP

09381-19003

1
Out of stock

24

CIRCLIP This part replaces 08331-31086.

08331-31089

1
Out of stock
