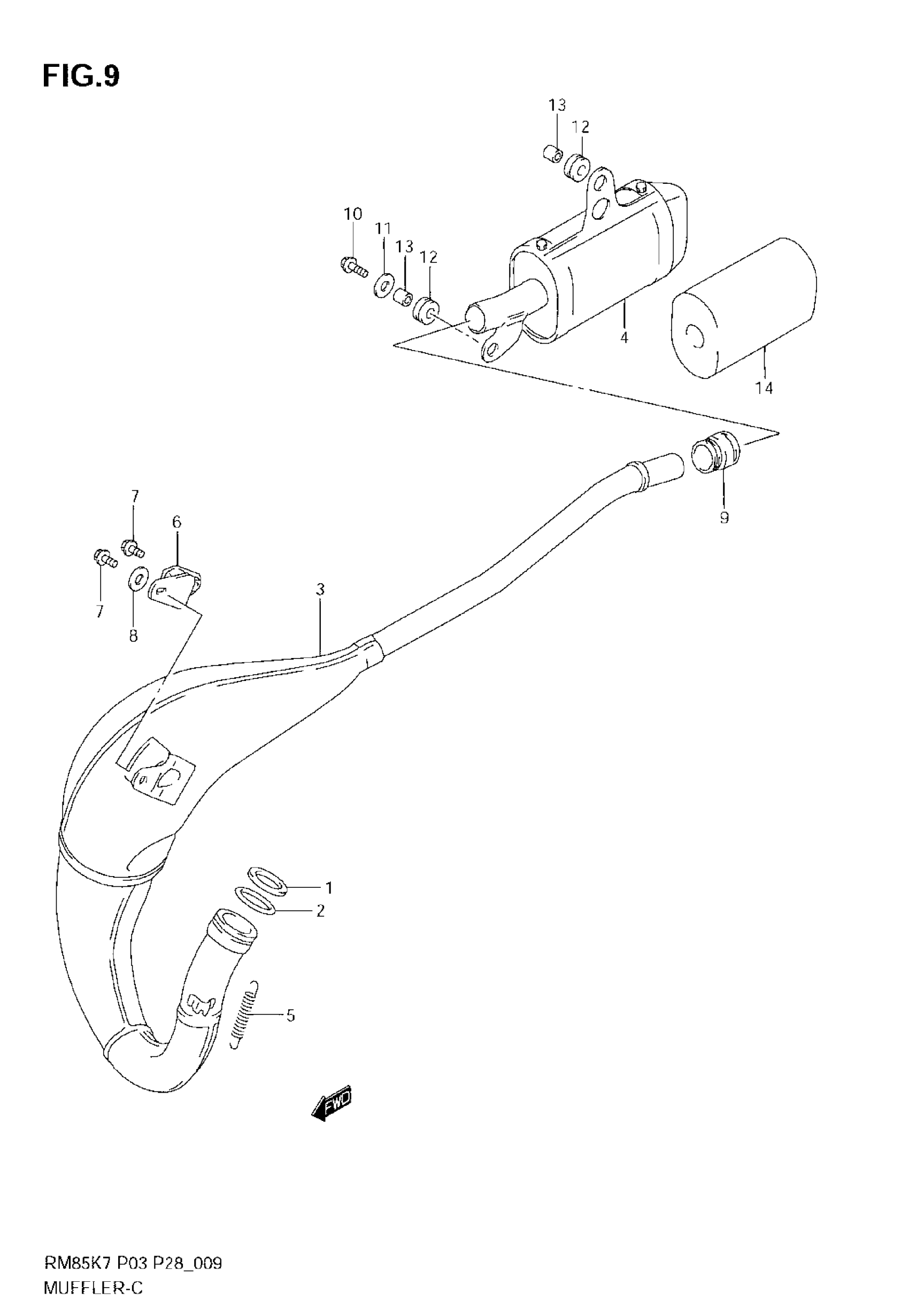

Suzuki RM85 (2008) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-40C00

$6.61

2

O RING, EXHAUST PIPE

14171-03B00

$19.50

3

MUFFLER, 1ST

14310-03B01

$405.57

4

MUFFLER, 2ND

14330-03B10

$335.37

5

SPRING

09443-11027

$6.59

6

DAMPER,MUFFLER This part replaces 14770-20401.

14770-20402

$10.75

7

BOLT

09103-06233

$2.18

8

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.45

9

CONNECTOR, 2ND MUFFLER

14771-17300

$14.77

10

BOLT

01547-06207

$2.01

11

WASHER (6.5X20X1.2)

09160-06077

$1.89

12

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

13

SPACER (6.5X9X8.5)

09180-06261

$1.89

14

SILENCER, MUFFLER | OPT

14351-03B10

$91.90
