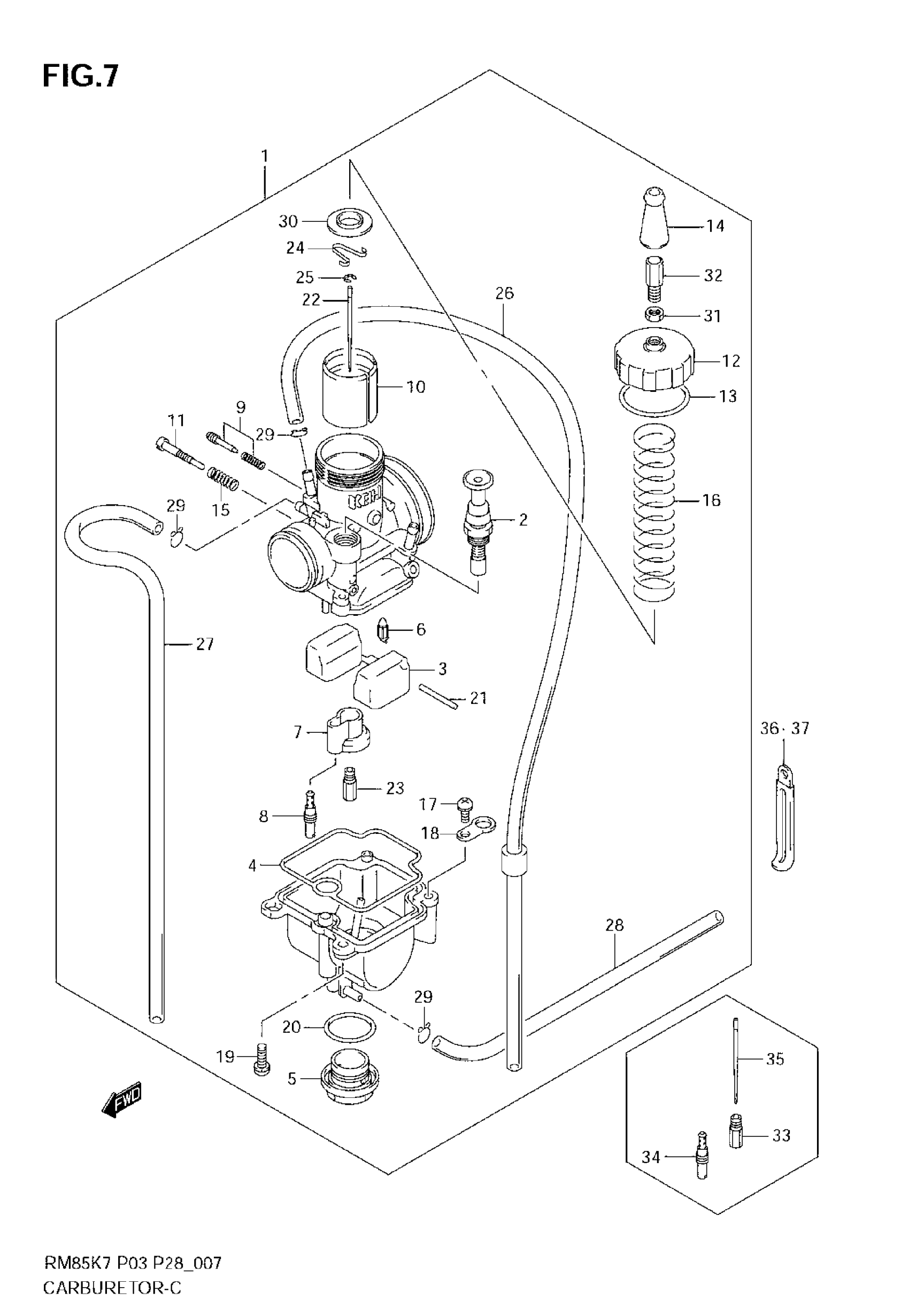

Suzuki RM85 (2008) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 2 - 32 This part replaces 13200-03B30.

13200-03B31

$196.62

2

VALVE ASSY, STARTER

13410-03B00

$92.80

3

FLOAT ASSY

13252-03B00

$35.40

4

GASKET

13251-03B00

$26.83

5

BOLT, DRAIN

13247-28E00

$21.90

6

VALVE ASSY, NEEDLE This part replaces 13370-03B00.

13370-03B01

$55.22

7

HOLDER, JET

13331-03B00

$25.20

8

JET, PILOT (50)

09492-50023

$17.37

9

ADJUST SCREW SET

13269-03B00

$36.88

10

THROTTLE VALVE

13551-03B00

$110.28

11

STOP SCREW

13267-03B00

$15.08

12

COVER

13261-03B00

$36.17

13

GASKET

13266-03B00

$6.23

14

CAP

13681-03B00

$5.77

15

SPRING

13268-03B00

$8.18

16

SPRING

13573-03B00

$16.93

17

SCREW

02112-14087

$2.38

18

PLATE

13693-28E00

$8.18

19

SCREW This part replaces 13253-03B00.

13601-14F80

$3.58

20

O RING

13246-28E00

$5.17

21

PIN, FLOAT

13254-92311

$2.07

22

NEEDLE (24NAAH)

13383-03B20

$19.72

23

JET, MAIN (#128)

09491-25020

$17.68

24

CLIP

13398-03B00

$8.60

25

CLIP, NEEDLE

13394-28E00

$5.25

26

.PIPE ASSY This part replaces 13686-03B00.

13686-03B01

$7.67

27

HOSE, 4X7X620 | L:620!380

13686-36E00

$10.28

28

HOSE, 4X7X620 | L:620!300

13686-36E00

$10.28

29

CLIP

09401-06101

$2.03

30

VALVE PLATE

13629-03B00

$5.58

31

NUT

13661-03B00

$5.32

32

ADJUST BOLT

13577-03B00

$8.53

33

JET, MAIN (115) | OPT

09491-23027

$18.02

33

JET, MAIN (118) | OPT

09491-23028

Unavailable

33

JET, MAIN (120) | OPT

09491-24030

$18.02

33

JET, MAIN (122) | OPT

09491-24031

$18.02

33

JET, MAIN (125) | OPT

09491-25019

$18.02

33

JET, MAIN (128) | OPT

09491-25020

$17.68

33

JET, MAIN (130) | OPT

09491-26017

$18.02

33

JET, MAIN (132) | OPT

09491-26018

$18.02

33

JET, MAIN (135) | OPT

09491-27016

Unavailable

33

JET, MAIN (138) | OPT

09491-27017

Unavailable

33

JET, MAIN (140) | OPT

09491-28019

Unavailable

33

JET, MAIN (142) | OPT

09491-28020

$18.02

33

JET, MAIN (145) | OPT

09491-29014

$17.00

34

JET, PILOT (45) | OPT

09492-45032

$17.37

34

JET, PILOT (48) | OPT

09492-48013

$17.37

34

JET, PILOT (50) | OPT

09492-50023

$17.37

34

JET, PILOT (52) | OPT

09492-52011

$17.68

34

JET, PILOT (55) | OPT

09492-55017

$18.02

34

JET, PILOT (58) | OPT

09492-58001

$18.02

35

NEEDLE (24NAAF) | OPT

13383-03B00

Unavailable

35

NEEDLE (24NAAG) | OPT

13383-03B10

Unavailable

35

NEEDLE (24NAAH) | OPT

13383-03B20

$19.72

35

NEEDLE (24NAAJ) | OPT

13383-03B30

$20.45

35

NEEDLE (24NAAK) | OPT

13383-03B40

$20.45

35

NEEDLE (24NCDF) | OPT

13383-03B50

Unavailable

35

NEEDLE (24NCDG) | OPT

13383-03B60

Unavailable

35

NEEDLE (24NCDH) | OPT

13383-03B70

Unavailable

35

NEEDLE (24NCDJ) | OPT

13383-03B80

Unavailable

35

NEEDLE (24NCDK) | OPT

13383-03B90

Unavailable

36

CLAMP

09404-06429

$1.83

37

CLAMP

09404-08206

$3.72
