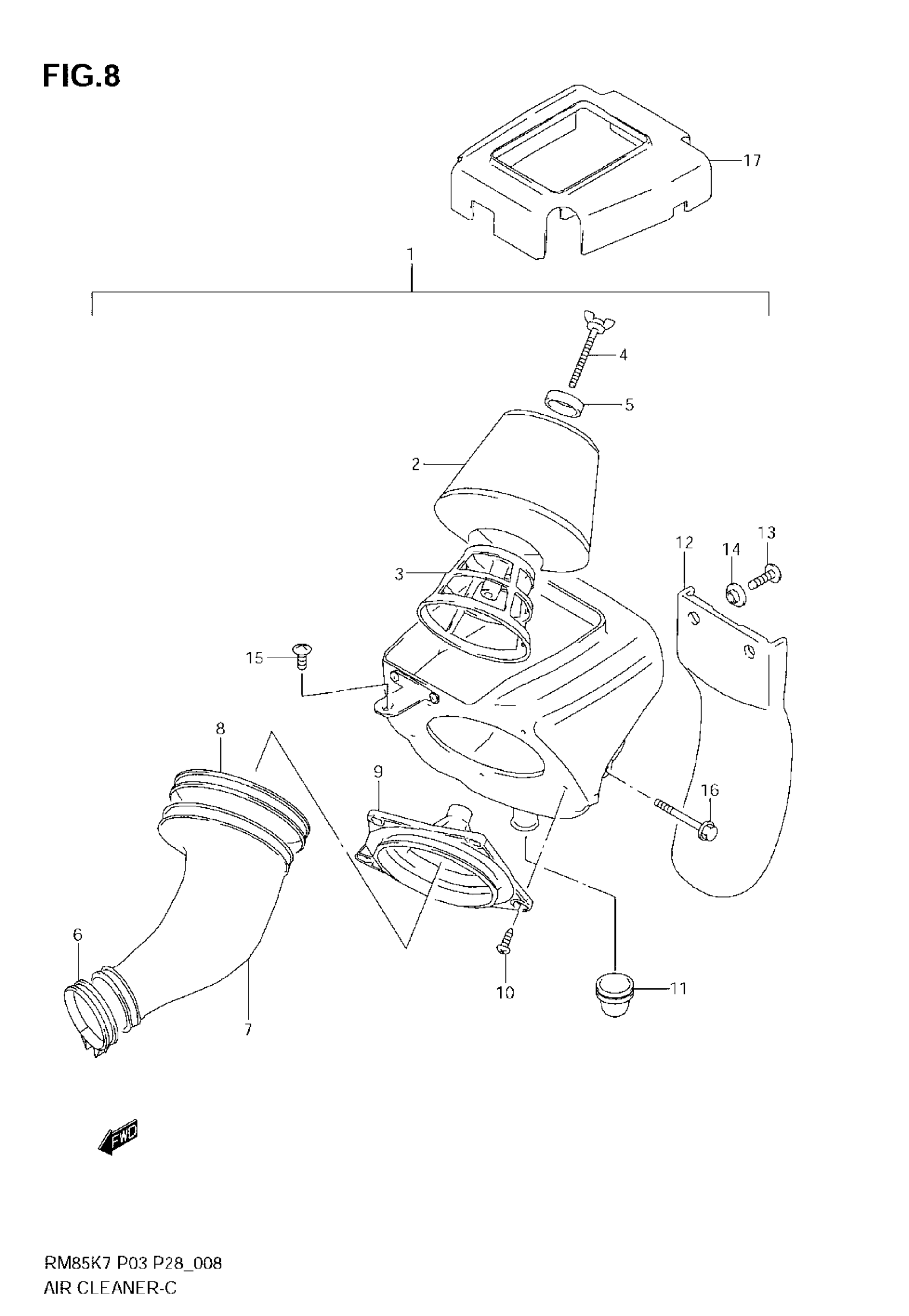

Suzuki RM85 (2008) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR | Includes Item(s) 2 - 14 This part replaces 13700-03B00.

13700-03B01

$255.98

2

FILTER

13780-02B00

$41.15

3

HOLDER, FILTER

13791-02B00

$18.20

4

BOLT, WING

13831-02B00

$5.80

5

WASHER

13792-13A01

$4.34

6

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

7

.TUBE,OUTLET This part replaces 13881-03B00.

13881-03B01

$31.16

8

CLAMP

09402-00303

$5.76

9

BASE, FILTER

13790-02B10

$24.42

10

SCREW This part replaces 03242-05123.

03241-0512A

$1.49

11

TUBE, DRAIN

13873-18900

Unavailable

12

MUD GUARD

13738-02B00

$19.43

13

SCREW

02142-06167

$1.49

14

WASHER

13838-02B00

$3.56

15

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

16

BOLT

09103-06242

$2.76

17

MUD GUARD,B

13739-02B20

$32.88
