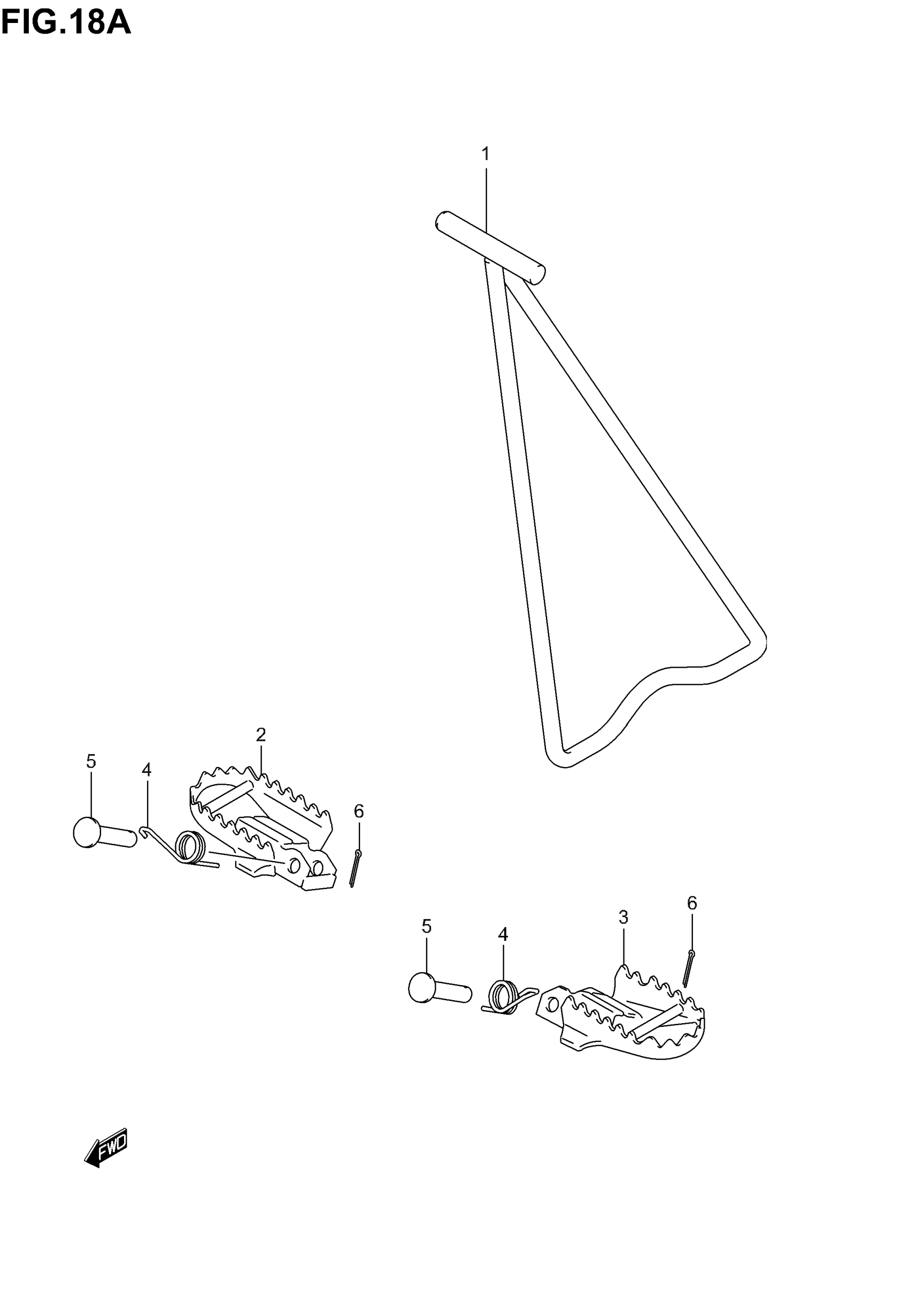

Suzuki RM85 (2006) STAND (MODEL K4/K5/K6) Diagram

#

Description

Price

1

STAND, PROP | RM85K4/K5/K6

42310-03B10

$110.55

1

STAND, PROP | RM85LK4/LK5/LK6

42310-03B20

Unavailable

2

FOOTREST, FR RH (BLACK) | MODEL K4

43550-03B00-019

$46.15

2

FOOTREST, FRONT RH | MODEL K5/K6 This part replaces 43551-14D21-019.

43551-14D21

Unavailable

3

FOOTREST, FR LH (BLACK) | MODEL K4

43560-03B00-019

$47.05

3

FOOTREST, FRONT LH | MODEL K5/K6 This part replaces 43561-14D21-019.

43561-14D21

$191.77

4

SPRING | MODEL K4

09448-15004

$2.33

4

SPRING | MODEL K5/K6

09448-16032

$4.45

5

PIN

09200-10013

$2.78

6

PIN

09204-01002

$1.56
