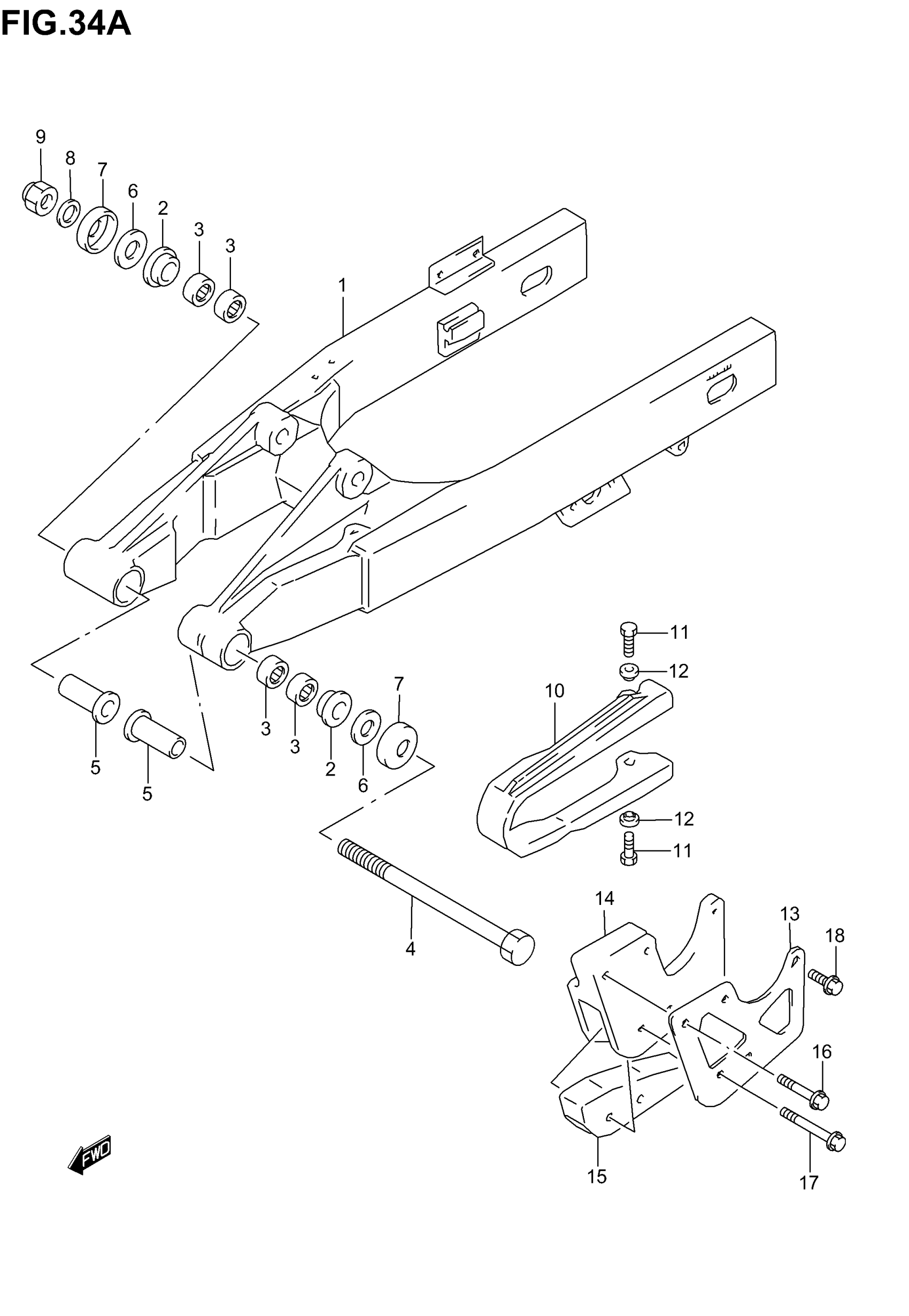

Suzuki RM85 (2006) REAR SWINGING ARM (MODEL K3) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | RM85K3

61000-03B30

Unavailable

1

SWINGING ARM ASSY, REAR | RM85LK3; Includes Item(s) 2 - 3

61000-03B60

Unavailable

2

BUSHING

61261-02B00

$22.22

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

SHAFT, PIVOT

61211-02B40

$23.32

5

SPACER, PIVOT

61251-02B40

$32.88

6

THRUST WASHER

08211-12282

$2.65

7

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

$11.18

8

WASHER This part replaces 08322-01123.

08322-0112B

$2.62

9

NUT This part replaces 08319-21128.

08319-2112A

$3.76

10

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

$40.15

11

BOLT

09103-06234

$2.35

12

WASHER

09169-06057

$3.18

13

PLATE, GUIDE CHAIN OUTER

61342-02B40

$33.93

14

GUIDE, CHAIN

61343-02B40

$41.68

15

DEFENSE, CHAIN GUIDE

61348-02B20

$18.40

16

BOLT, UPPER (6X30)

09103-06251

$2.35

17

BOLT, LOWER (6X40)

09103-06241

$3.08

18

BOLT, REAR (6X16)

09103-06234

$2.35
