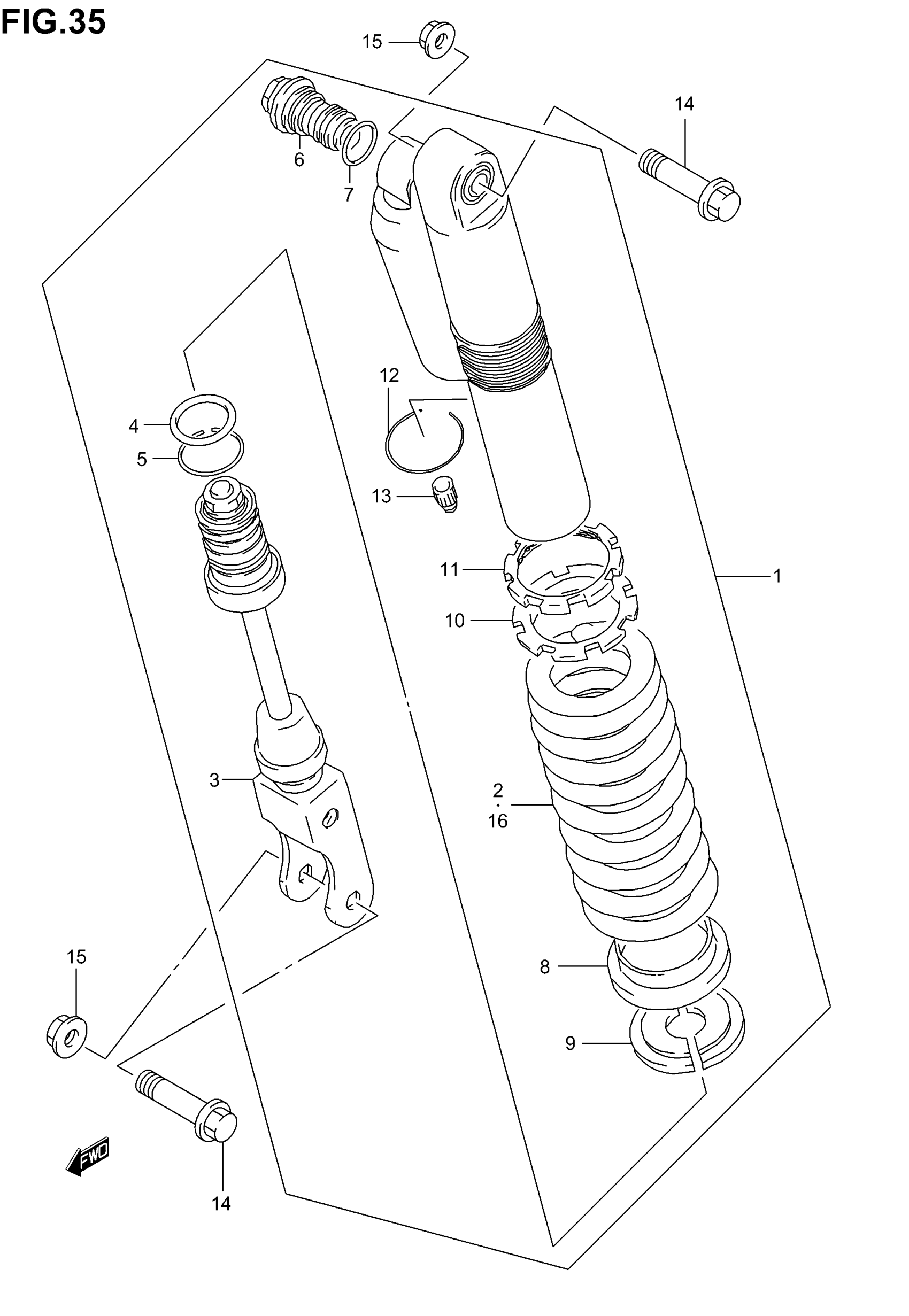

Suzuki RM85 (2006) REAR SHOCK ABSORBER (MODEL K2/K3) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | RM85K2/K3 E3

62100-03B50-37W

Unavailable

1

ABSORBER ASSY, REAR SHOCK | RM85K2/K3 E28

62100-03B40-37W

Unavailable

1

ABSORBER ASSY, REAR SHOCK | RM85LK3 E3,E28; Includes Item(s) 2 - 13

62100-03B30-37W

Unavailable

2

SPRING, REAR (K=4.9)

62211-03B30

Unavailable

3

ROD, PISTON

62120-03B30

Unavailable

4

O RING

62153-03B30

$8.60

5

RING, ROD STOPPER

62279-03B30

Unavailable

6

BOLT, PLUG

62130-03B30

Unavailable

7

O RING

51177-36E20

$4.10

8

SEAT, SPRING

62249-17C00

$29.83

9

SEAT STOPPER, SPRING

62225-17C00

$32.67

10

ADJUSTER, SPRING

62191-20400

Unavailable

11

NUT, SPRING ADJUSTER

62194-20400

Unavailable

12

RING, STOPPER

62278-03B30

Unavailable

13

CAP

51294-20400

$7.37

14

BOLT

62648-14500

$4.34

15

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

16

SPRING, REAR (K=4.6) (SOFT) | OPT

62211-SHOWA-001

Unavailable

16

SPRING, REAR (K=4.7) (SOFT) | OPT

62211-03B00

Unavailable

16

SPRING, REAR (K=5.1) (HARD) | OPT

62211-03B10

Unavailable

16

SPRING, REAR (K=5.2) (HARD) | OPT

62211-SHOWA-002

$216.60
