Description

Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-03B00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-37F20

$21.35

5

ROD, PUSH

69670-40A00

$25.62

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW

09139-06139

$3.23

11

TANK ASSY, RESERVOIR | MODEL K5

69740-03D10

$75.90

11

TANK ASSY, RESERVOIR | MODEL K6; Includes Item(s) 12 - 14

69740-03D00

$75.90

12

CAP | MODEL K5

69669-03D10

$22.65

12

CAP | MODEL K6

69669-03D00

$22.65

13

PLATE

69668-00B20

$7.67

14

DIAPHRAGM

69667-00B20

$15.68

15

BOLT

09103-06233

$2.11

16

HOSE, RESERVOIR TANK

69731-02B50

$36.08

17

CLAMP

69735-00B20

$4.10

18

HOSE, REAR BRAKE | RM85K5/K6

69480-03B60

$113.64

18

HOSE, REAR BRAKE | RM85LK5/LK6

69480-03B70

$133.70

19

UNION This part replaces 09360-10042.

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

CLAMP, REAR BRAKE HOSE

61196-00B21

$6.79

22

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

23

PIN

09200-08048

$2.92

24

WASHER This part replaces 09160-08119.

09160-08090

$2.39

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

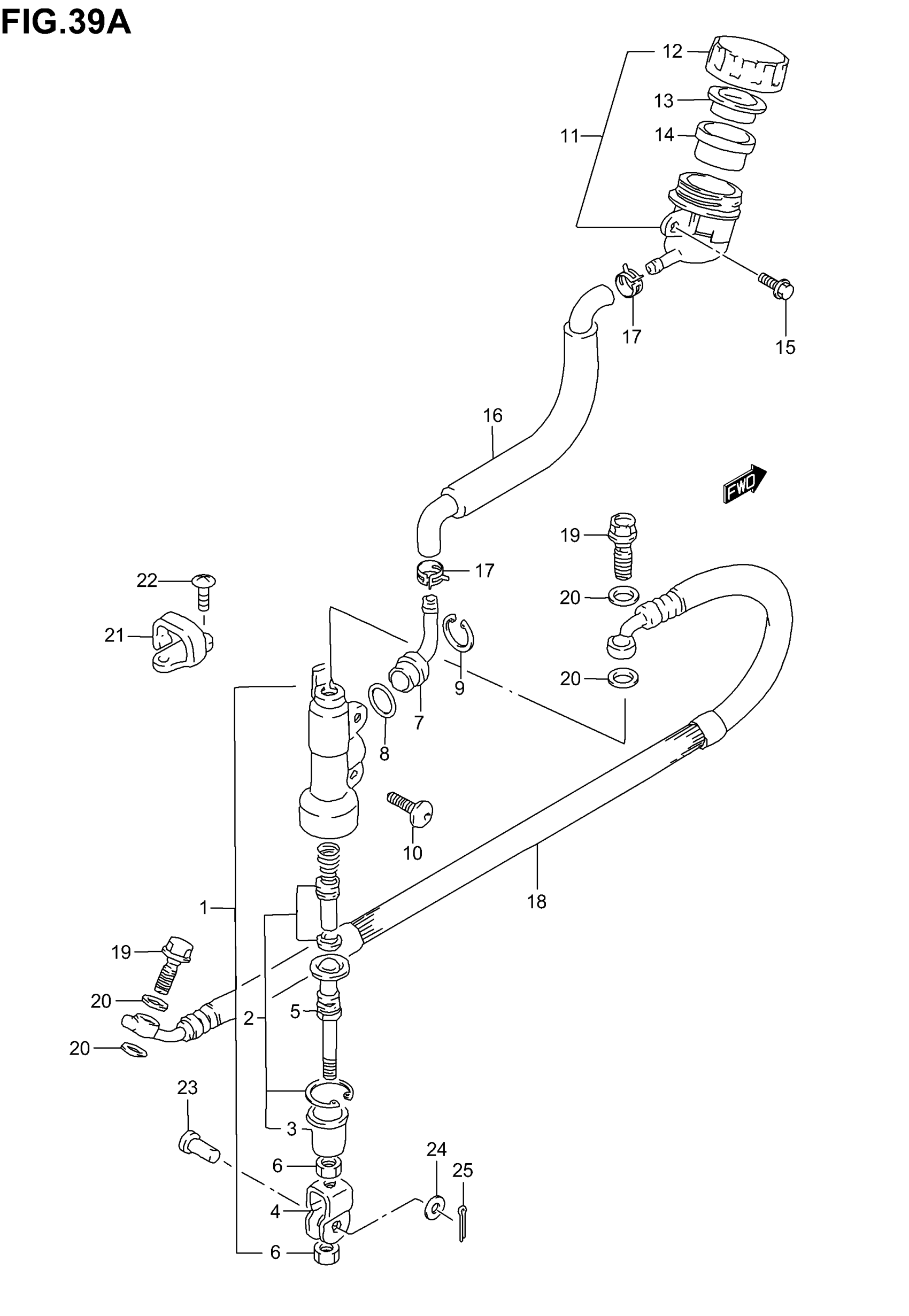

Suzuki RM85 (2006) REAR MASTER CYLINDER (MODEL K5/K6) Diagram
