Description

Price

1

MAGNETO ASSY | Includes Item(s) 2 - 3 This part replaces 32100-02B31.

32100-02B32

Unavailable

2

STATOR This part replaces 32101-02B31.

32101-02B32

$436.10

3

ROTOR This part replaces 32102-02B30.

32102-02B31

Unavailable

4

KEY

09420-04008

$3.42

5

NUT This part replaces 08316-10103.

08316-1010B

$2.66

6

BOLT This part replaces 09103-06235.

01547-06207

$2.01

7

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

8

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:165)

09407-18402

$2.19

9

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

10

CLAMP

09407-15401

$2.60

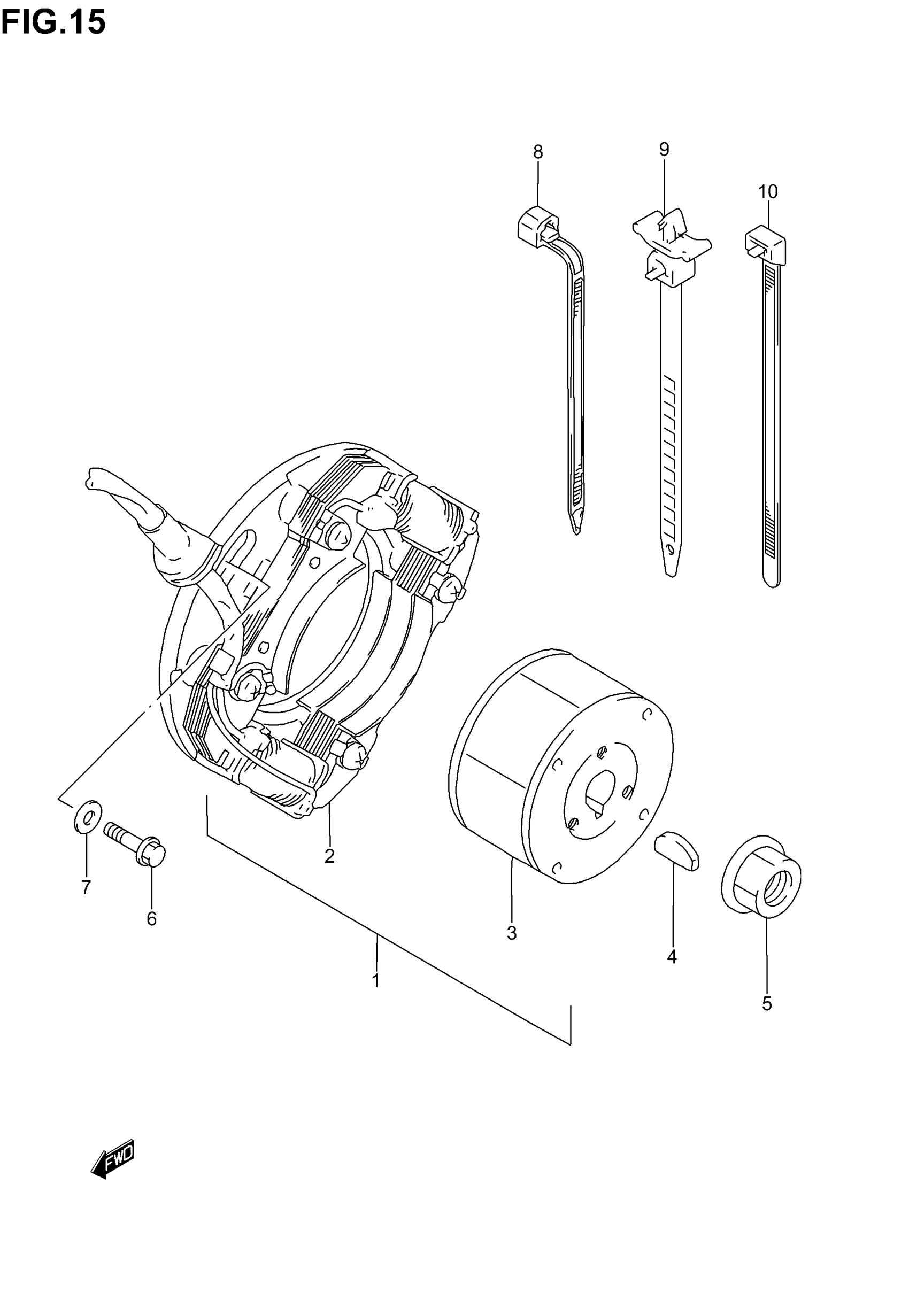

Suzuki RM85 (2006) MAGNETO Diagram
