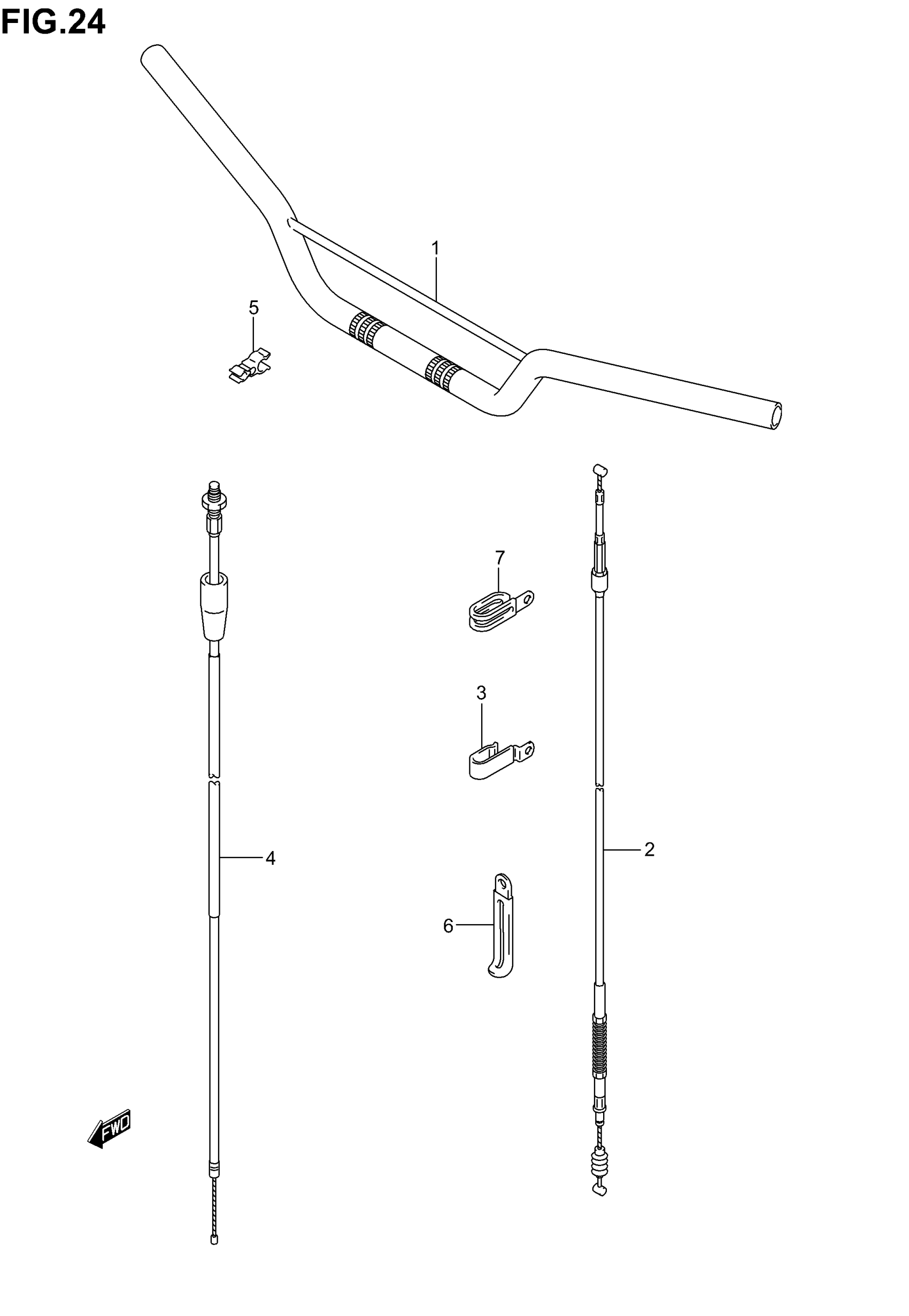

Suzuki RM85 (2006) HANDLEBAR Diagram

#

Description

Price

1

HANDLEBAR (SILVER) This part replaces 56110-03B00-13L.

56110-03B01-13L

$107.98

2

CABLE ASSY, CLUTCH | MODEL K2/K3/K4

58200-02B13

$31.83

2

CABLE ASSY, CLUTCH | MODEL K5/K6

58200-03B00

$53.82

3

CLAMP | RM85L This part replaces 09403-06307.

09403-06329

$2.32

4

CABLE ASSY,THROTTLE This part replaces 58300-02B21.

58300-02B22

$26.13

5

CLAMP

09408-00085

$3.85

6

CLAMP | RM85 This part replaces 09404-06432.

09404-06039

$1.74

7

CLAMP | MODEL K5/K6

09403-11319

$5.10
