Description

Price

1

HUB, FR WHEEL

54111-02B42

$316.32

2

SPACER, FR HUB BEARING

54731-02B40

$13.67

3

BEARING

08133-62017

$18.47

4

AXLE, FRONT

54711-03B00

$46.90

5

SPACER, FR AXLE

54740-02B40

$15.68

6

DISC, FRONT BRAKE

59221-03B00

$227.45

7

SCREW (6X22)

09126-06009

$2.70

8

NUT

08319-31067

$2.03

9

WASHER

08211-12204

$4.32

10

NUT This part replaces 08314-40123.

08314-4012A

$2.50

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

TIRE, FRONT (70/100-17 40M D737F)(DUNLOP)

55110-02B70

Unavailable

13

TUBE ASSY, INNER

55200-02B70

Unavailable

14

PROTECTOR, INNER TUBE

55261-02B40

$6.88

15

RIM, FRONT WHEEL (1.40X17)

55311-02B10

Unavailable

16

SPOKE SET, FRONT WHEEL

55320-02B10

$63.97

17

STOPPER, BEAD

65270-28600

$54.75

18

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

19

NUT This part replaces 08310-00083.

08310-0008A

$1.84

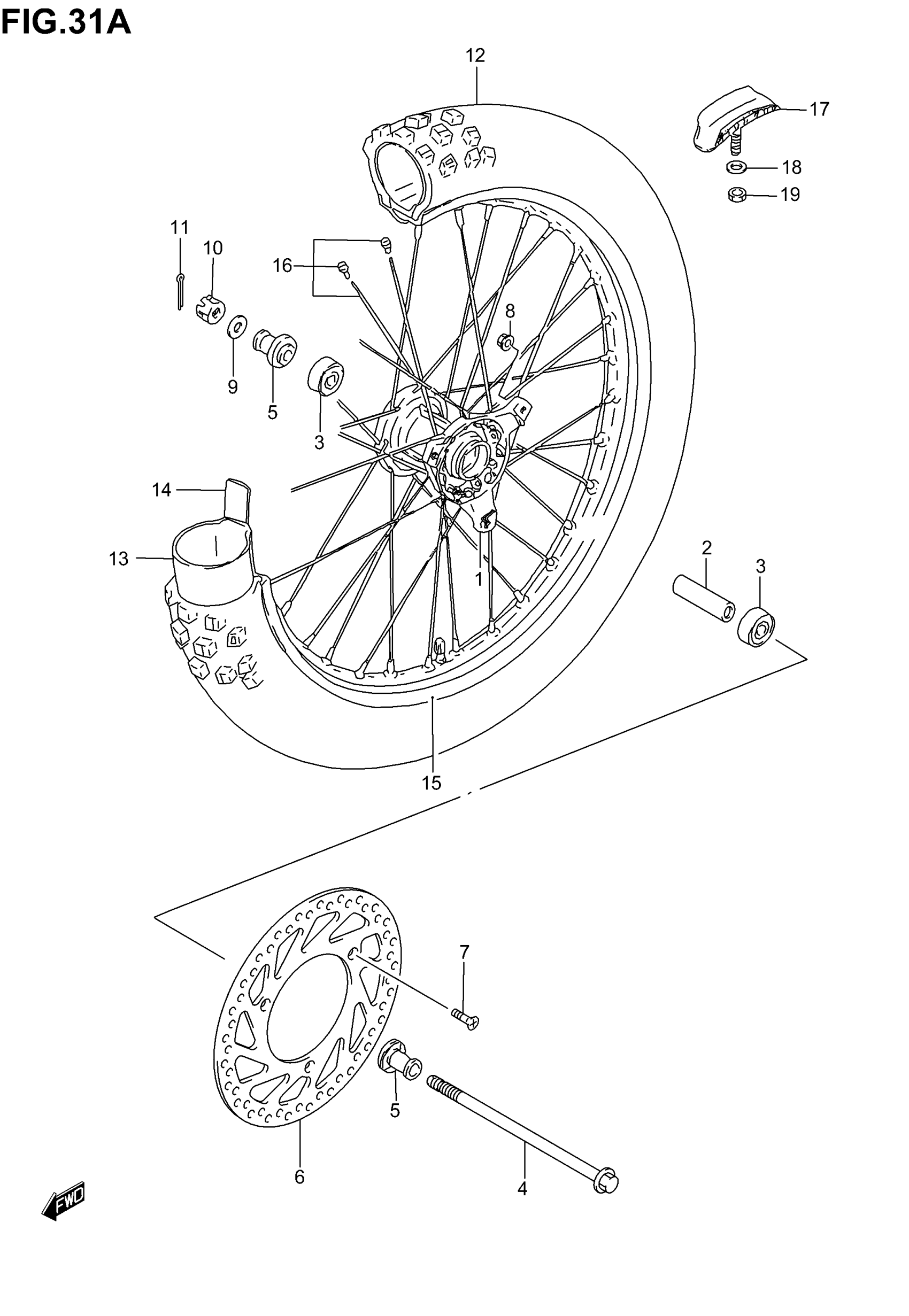

Suzuki RM85 (2006) FRONT WHEEL (RM85K5/K6) Diagram

HUB, FR WHEEL

SPACER, FR HUB BEARING

BEARING

AXLE, FRONT

SPACER, FR AXLE

DISC, FRONT BRAKE

SCREW (6X22)

NUT

WASHER

NUT This part replaces 08314-40123.

COTTER PIN This part replaces 04111-20208.

TIRE, FRONT (70/100-17 40M D737F)(DUNLOP)

TUBE ASSY, INNER

PROTECTOR, INNER TUBE

RIM, FRONT WHEEL (1.40X17)

SPOKE SET, FRONT WHEEL

STOPPER, BEAD

WASHER This part replaces 08322-01083.

NUT This part replaces 08310-00083.
