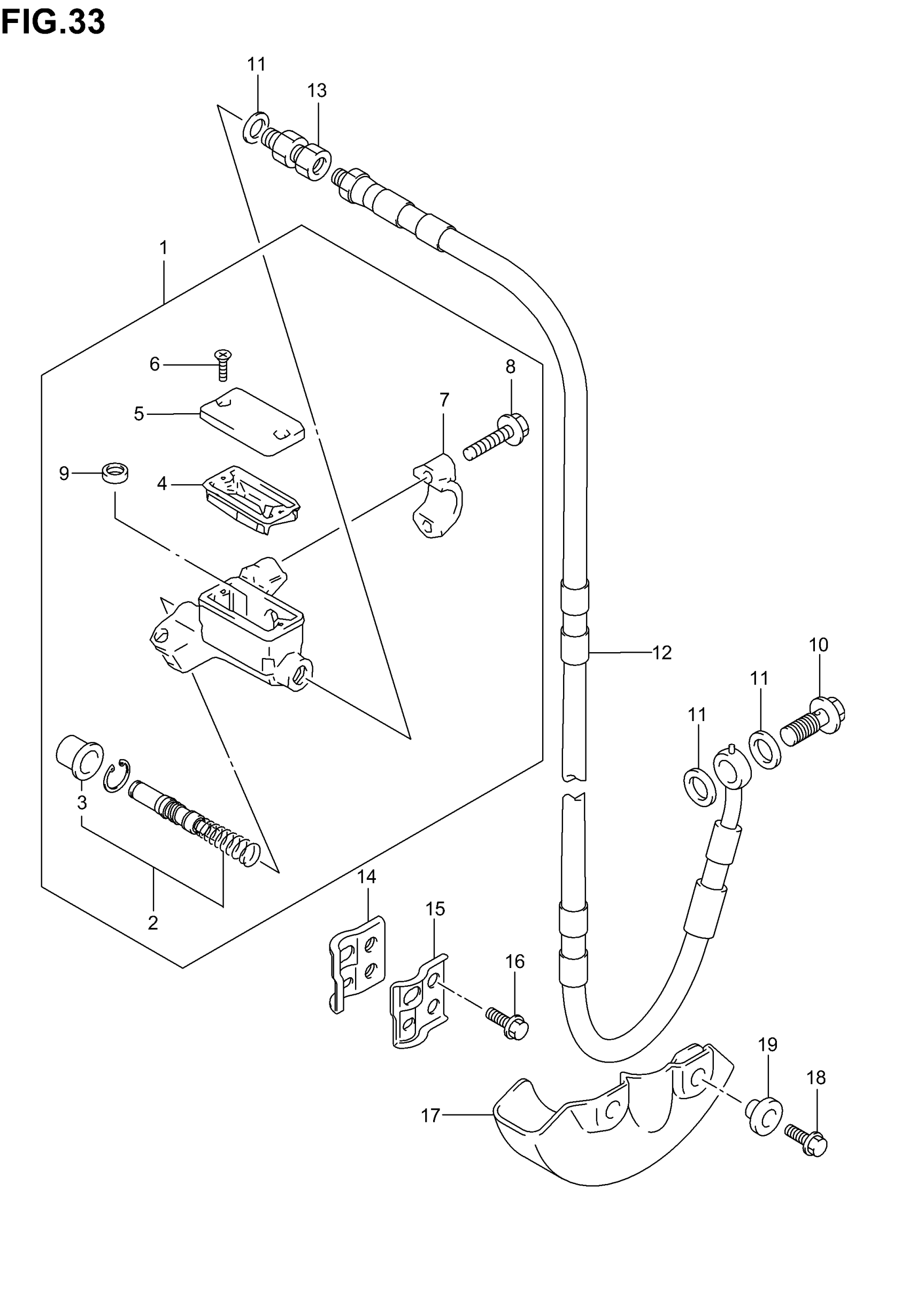

Suzuki RM85 (2006) FRONT MASTER CYLINDER (MODEL K2/K3/K4) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | MODEL K2/K3

59600-27C01

$292.48

1

CYLINDER ASSY, FRONT MASTER | MODEL K4; Includes Item(s) 2 - 9

59600-27C20

Unavailable

2

PISTON/CUP SET

59600-27820

$60.97

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-14500

$11.87

10

UNION This part replaces 09360-10040.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE, FRONT BRAKE | RM85K2/K3/K4

59480-03B60

Unavailable

12

HOSE, FRONT BRAKE | RM85LK3/LK4

59480-03B70

Unavailable

13

ADAPTER, BRAKE HOSE

59290-14501

$36.17

14

CLAMP, FRONT BRAKE HOSE | INNER

59260-03B00

$12.80

15

CLAMP, FRONT BRAKE HOSE | OUTER

59271-03B00

$10.95

16

BOLT

09103-06234

$2.35

17

COVER, FRONT BRAKE HOSE

59233-03B00

$26.38

18

BOLT, COVER

09103-06233

$2.11

19

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49
