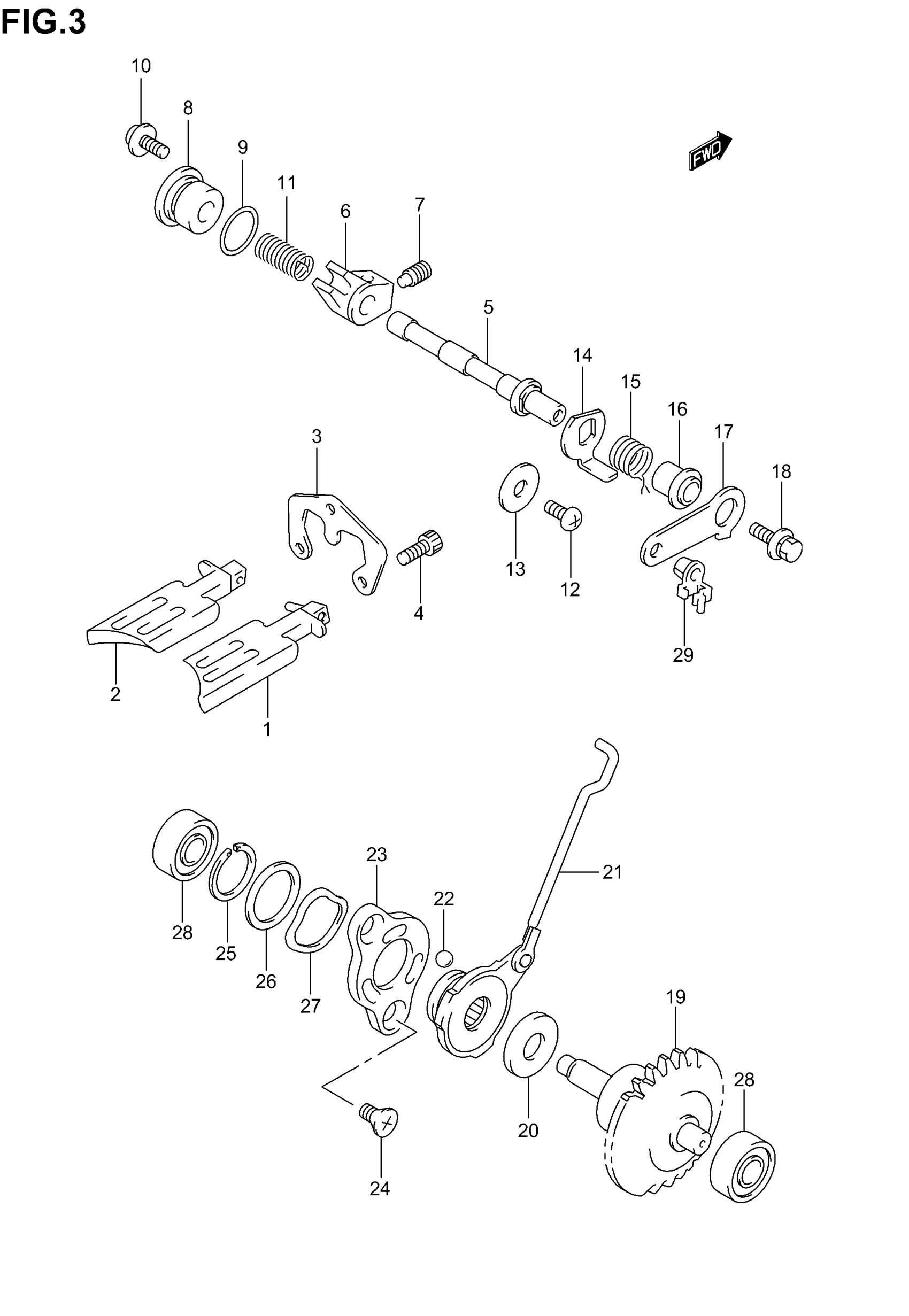

Suzuki RM85 (2006) EXHAUST VALVE (MODEL K2/K3/K4) Diagram

#

Description
Price

1

VALVE, EXHAUST RH

11250-03B00

Unavailable

2

VALVE, EXHAUST LH

11255-03B00

Unavailable

3

PLATE, EXHAUST VALVE

11261-03B00

Unavailable

4

BOLT This part replaces 07130-05123.

07130-0512B

$2.53

5

SHAFT, EXHAUST VALVE

11259-02B40

Unavailable

6

ARM, EXHAUST VALVE SHAFT

11264-00B24

Unavailable

7

SCREW (6X10)

09134-06013

$4.20

8

CAP, EXHAUST VALVE

11258-02B40

$86.48

9

O RING (D:1.9,ID:14.5)

09280-15006

$2.80

10

SCREW | MODEL K2/K3 This part replaces 02162-05103.

02162-0510A

$2.25

10

BOLT | MODEL K4

09103-05022

$2.27

11

SPRING

09448-10004

$6.03

12

SCREW This part replaces 02112-06083.

02112-0608A

$1.87

13

WASHER

08212-06201

$1.80

14

LEVER, EXHAUST VALVE NO.2

11267-00B21

$4.20

15

SPRING

09444-15008

$4.19

16

SPACER

11268-01B01

$8.14

17

LEVER, EXHAUST VALVE NO.1

11266-00B21

$3.14

18

BOLT (5X12)

09118-05005

$3.48

19

GOVERNOR ASSY, EXHAUST VALVE

12670-02B41

$146.87

20

BEARING (10X22X2.8)

09263-10002

$9.20

21

ACTUATOR, EXHAUST VALVE

12680-03811

Unavailable

22

BALL

06111-06003

$1.24

23

STATOR, ACTUATOR

12682-01B02

$40.83

24

SCREW (5X10)

09120-05003

$1.76

25

CIRCLIP

09380-19003

$2.35

26

SHIM (19.1X25X0.3)

09181-19004

$4.12

27

LOCK WASHER

09164-19001

$4.29

28

BEARING

09262-08005

$11.44

29

BUSH, EXHAUST VALVE ROD

12686-01B00

$1.94
