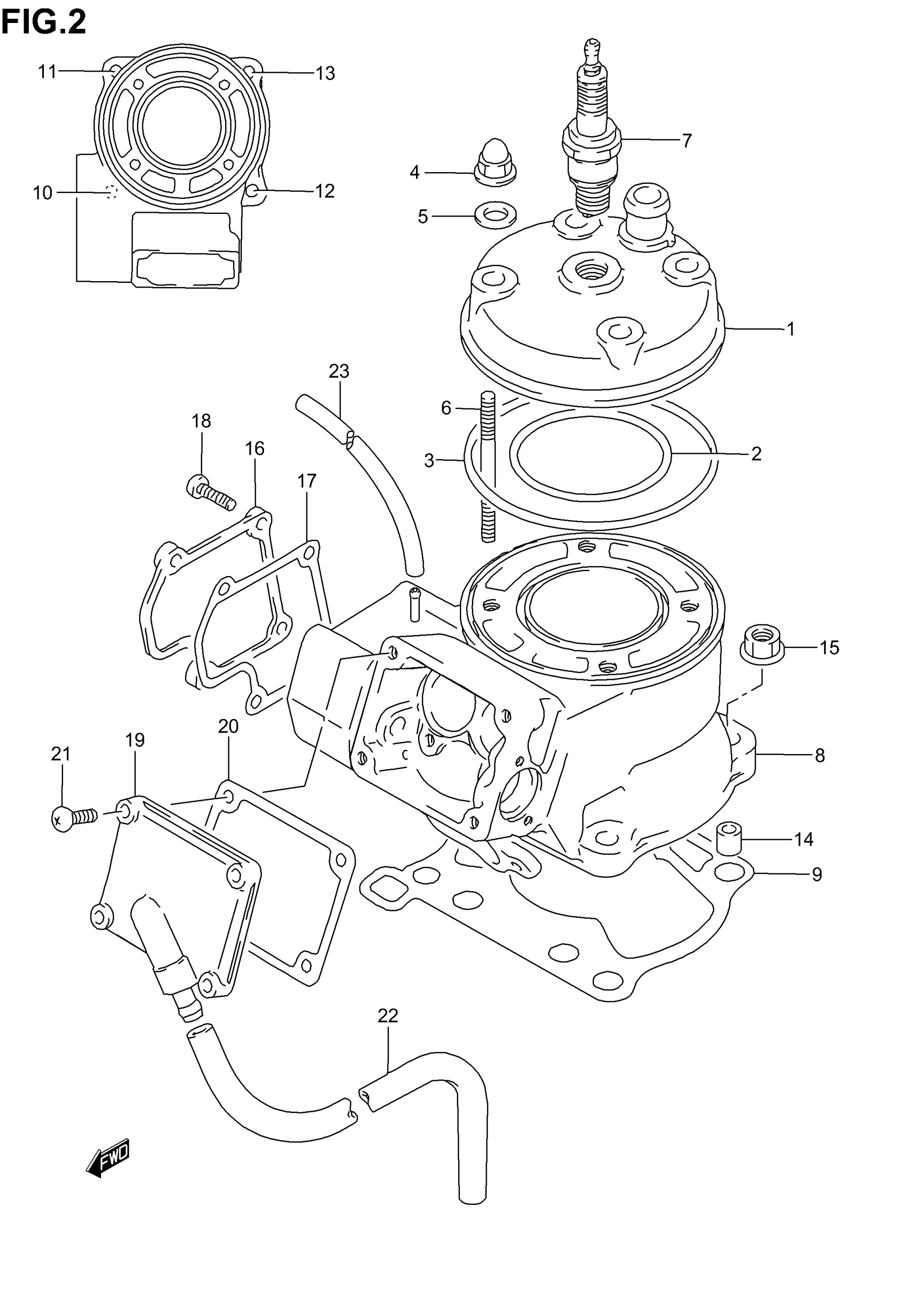

Suzuki RM85 (2006) CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER

11111-03B10

$140.02

2

O RING, CYLINDER HEAD NO.1

11147-03B00

$10.20

3

O RING, CYLINDER HEAD NO.2

11148-03B00

$5.35

4

NUT

09159-08049

$4.71

5

WASHER

09168-08021

$2.61

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

$3.42

7

SPARK PLUG (NGK,BR10ES)

09482-00360

$3.20

8

CYLINDER SET | MODEL K2/K3/K4 This part replaces 11200-03820.

11200-03821

$779.13

8

CYLINDER SET | MODEL K5/K6

11200-03830

$775.33

9

GASKET, CYLINDER

11241-03B01

$8.34

10

BOLT,T/M SIDE M | MODEL K2/K3/K4 This part replaces 09108-08200.

09108-08255

$3.93

10

STUD BOLT | MODEL K5/K6 This part replaces 01421-08208.

01421-0820A

$1.91

11

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

12

STUD BOLT (8X30) | MODEL K2/K3/K4

09108-08142

$3.18

12

STUD BOLT (8X33) | MODEL K5/K6

09108-08220

$3.18

13

STUD BOLT This part replaces 01421-08358.

01421-0835A

$2.29

14

PIN

09206-11004

$5.36

15

NUT | MODEL K2/K3 This part replaces 08316-10083.

08316-1008B

$2.66

15

NUT | MODEL K4/K5/K6

09159-08124

$2.66

16

COVER, CYLINDER NO.1

11231-02B40

$33.75

17

GASKET, CYLINDER COVER NO.1

11233-02B42

$6.22

18

BOLT | MODEL K2/K3 This part replaces 02162-05163.

02162-0516A

$1.71

18

BOLT (5X16) | MODEL K4/K5/K6 This part replaces 09103-05023.

09103-05016

$1.93

19

COVER, CYLINDER NO.2 | MODEL K2/K3/K4

11240-19D20

$37.75

19

COVER, CYLINDER NO.2 | MODEL K5/K6

11248-12C01

$33.93

20

GASKET, CYLINDER COVER NO.2

11238-01B30-H17

$4.03

21

BOLT | MODEL K2/K3 This part replaces 02162-05163.

02162-0516A

$1.71

21

BOLT (5X16) | MODEL K4/K5/K6 This part replaces 09103-05023.

09103-05016

$1.93

22

HOSE,6.5X11.5X6 | MODEL K2/K3/K4 L:600!140 This part replaces 09355-70125-600.

44421-12FR0

$12.33

22

HOSE(5X8.2X600) | MODEL K5/K6 L:600!150 This part replaces 09359-50823-600.

09359-50824-600

$7.98

23

HOSE,5X10X600 | MODEL K2/K3/K4 L:600!300 This part replaces 09352-50823-600.

44421-13ER0

$10.06

23

HOSE,5X10X600 | MODEL K5/K6 L:600!260 This part replaces 09352-50823-600.

44421-13ER0

$10.06
