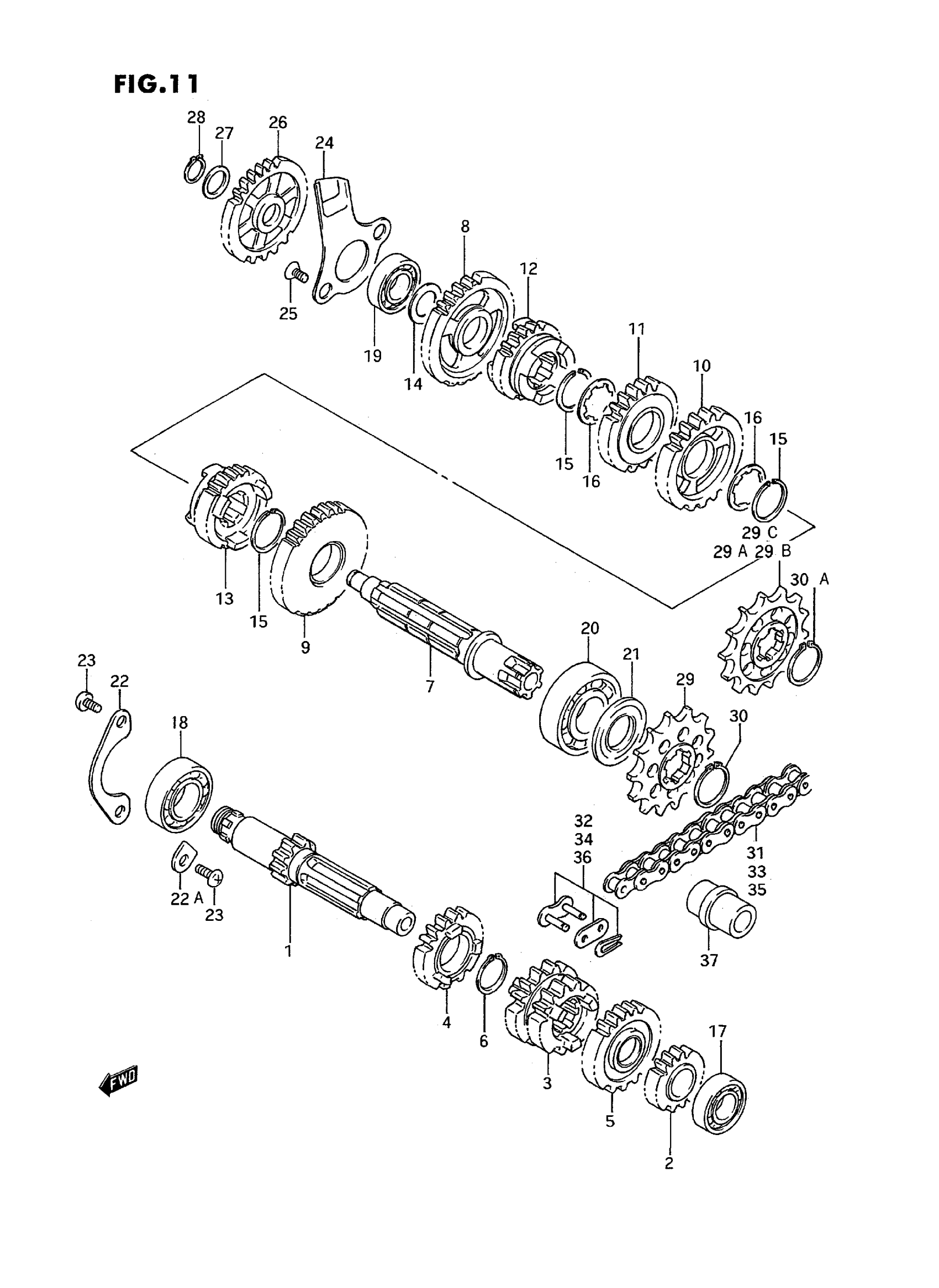

Suzuki RM80S (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:11) | MODEL G/H/J

24121-02B02

Unavailable

1

SHAFT,CNTR (NT:11) | MODEL K/L/M/N/P/R/S This part replaces 24121-02B40.

24121-02B42

$173.58

2

GEAR, 2ND DRIVE (NT:15) This part replaces 24221-02B01.

24221-02B02

$55.00

3

GEAR, 3/4 DRIVE (NT:14/15) This part replaces 24231-02B02.

24231-02B03

$109.08

4

GEAR, 5TH DRIVE (NT:18) This part replaces 24251-02B01.

24251-02B02

$80.52

5

GEAR, 6TH DRIVE (NT:22)

24260-02B01

$87.70

6

CIRCLIP

09380-20009

$2.20

7

DRIVESHAFT

24131-02B01

$174.33

8

GEAR, 1ST DRIVEN (NT:28) This part replaces 24311-02B01.

24311-02B02

$113.25

9

GEAR, 2ND DRIVEN (NT:29) This part replaces 24321-02B01.

24321-02B02

$113.25

10

GEAR, 3RD DRIVEN (NT:22) | MODEL G/H/J/K/L This part replaces 24331-02B01.

24331-03B02

$71.33

10

GEAR, 3RD DRIVEN (NT:22) | MODEL M/N/P/R/S This part replaces 24331-03B00.

24331-03B02

$71.33

11

GEAR, 4TH DRIVEN (NT:20) | MODEL G/H/J/K/L This part replaces 24341-02B01.

24341-03B02

$80.52

11

GEAR, 4TH DRIVEN (NT:20) | MODEL M/N/P/R/S This part replaces 24341-03B00.

24341-03B02

$80.52

12

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-02B01.

24351-02B02

$87.70

13

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-02B02.

24361-02B03

$74.56

14

WASHER, SUB T/M IDLE, LH This part replaces 08211-15261.

09181-15195

$2.57

15

CIRCLIP

09380-22006

$3.10

16

WASHER

09167-22011

$3.23

17

BEARING, LH | MODEL G/H/J/N

08113-60027

Unavailable

17

BEARING, LH | MODEL K/L/M

08123-62027

$18.57

17

BEARING, LH | MODEL P/R/S

08113-62027

$14.40

18

BEARING, RH

09262-20106

$29.35

19

BEARING, RH

08113-62027

$14.40

20

BEARING, LH

09262-20069

$23.28

21

OIL SEAL (20X35X5) This part replaces 09283-20038.

09283-20057

$6.02

22

RETAINER, BEARING | MODEL G/H/J

24741-48000

Unavailable

22A

RETAINER, BEARING | MODEL K/L/M/N/P/R/S

24741-21A00

$2.81

23

SCREW | MODEL G/H/J This part replaces 02112-06128.

02112-06127

$1.84

23

SCREW | MODEL K/L/M/N/P/R/S This part replaces 02112-06123.

02112-0612A

$1.49

24

RETAINER, BEARING | MODEL G/H/J

24751-02B02

Unavailable

25

SCREW | MODEL G/H/J This part replaces 02122-06128.

02122-06127

$1.84

26

GEAR, KICK IDLE (NT:27) | MODEL G/H/J

26260-02B00

Unavailable

26

GEAR, KICK IDLE (NT:24) | MODEL K/L/M/N/P/R/S

26260-02B40

$76.63

27

WASHER

08221-12205

$2.30

28

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

29

SPROCKET, ENGINE (NT:14) | MODEL G/H/J

27511-02B00

Unavailable

29

SPROCKET, ENGINE (NT:13) | MODEL G/H/J OPT

27511-04710

Unavailable

29A

SPROCKET, ENGINE (NT:14) | MODEL K/L This part replaces 27511-20420.

27511-20421

$23.32

29B

SPROCKET, ENGINE (NT:14) | MODEL M/N/P/R/S

27511-20421

$23.32

29C

SPROCKET, ENGINE (NT:13) | MODEL K/L/M/N/P/R/S OPT

27511-20401

$26.90

30

CIRCLIP | MODEL G/H/J

09380-20007

$2.43

30A

CIRCLIP | MODEL K/L/M/N/P/R/S

09380-20009

$2.20

31

CHAIN ASSY,DRIV | MODEL G/H/J; Includes Item(s) 32 This part replaces 27600-02B11-120.

27600-01012-130

Unavailable

32

JOINT (DID) | MODEL G/H/J

27620-02B11

Unavailable

32

JOINT (RK) | MODEL G/H/J

27620-02B20

Unavailable

33

CHAIN ASSY,DRIV | 132->118L,MODEL K; Includes Item(s) 34 This part replaces 27600-20931.

27600-46912-134

$70.38

34

.JOINT SET, CHAIN | MODEL K This part replaces 27620-20910.

27620-20911

$5.30

34

JOINT (RK) | MODEL K This part replaces 27620-05220.

27620-40220

$11.07

35

CHAIN, DRIVE (DID428DS,118L) | MODEL K/L/M/N/P/R/S; Includes Item(s) 36 This part replaces 27600-02B40-118.

27600-05350

$183.50

36

JOINT SET, CHAIN | MODEL K/L/M/N/P/R/S This part replaces 27620-02B40.

27620-03B00

$11.18

37

CUSHION, CHAIN | MODEL G/H/J

09180-12116

Unavailable
