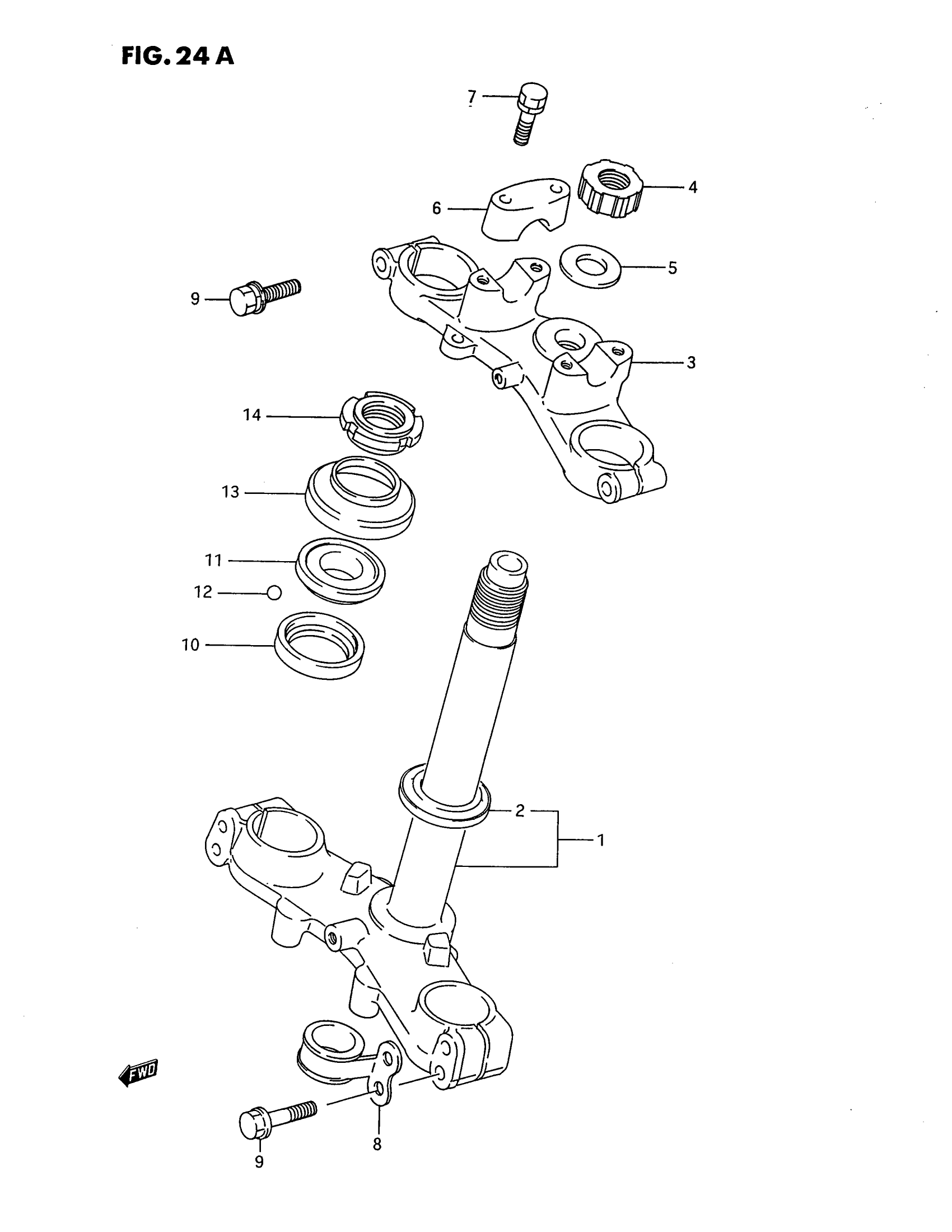

Suzuki RM80S (1995) STEERING STEM (MODEL K) Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-02B20

Unavailable

2

RACE

51621-02B00

Unavailable

3

STEM HEAD, STEERING

51311-02B20

Unavailable

4

NUT This part replaces 51353-02B20.

51353-14D00

Unavailable

5

WASHER This part replaces 51356-02B20.

51354-14D00

$12.08

6

HOLDER, HANDLE UPPER

56211-27100

$15.23

7

BOLT This part replaces 01517-08357.

01550-08357

$3.49

8

CLIP

51452-02B00

Unavailable

9

BOLT This part replaces 01517-08407.

01550-08407

$3.42

10

RACE, INNER

51611-40201

Unavailable

11

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

12

STEEL BALL

06111-08003

$1.49

13

SEAL, STEERING DUST This part replaces 51643-34A00.

51643-49002

$12.32

14

NUT, STEERING STEM

51631-28000

$17.37

15

REFER TO FIG.24B (F-11) FOR

SPECIAL NOTE

Unavailable
