1995 Suzuki RM80S Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1995 Suzuki RM80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

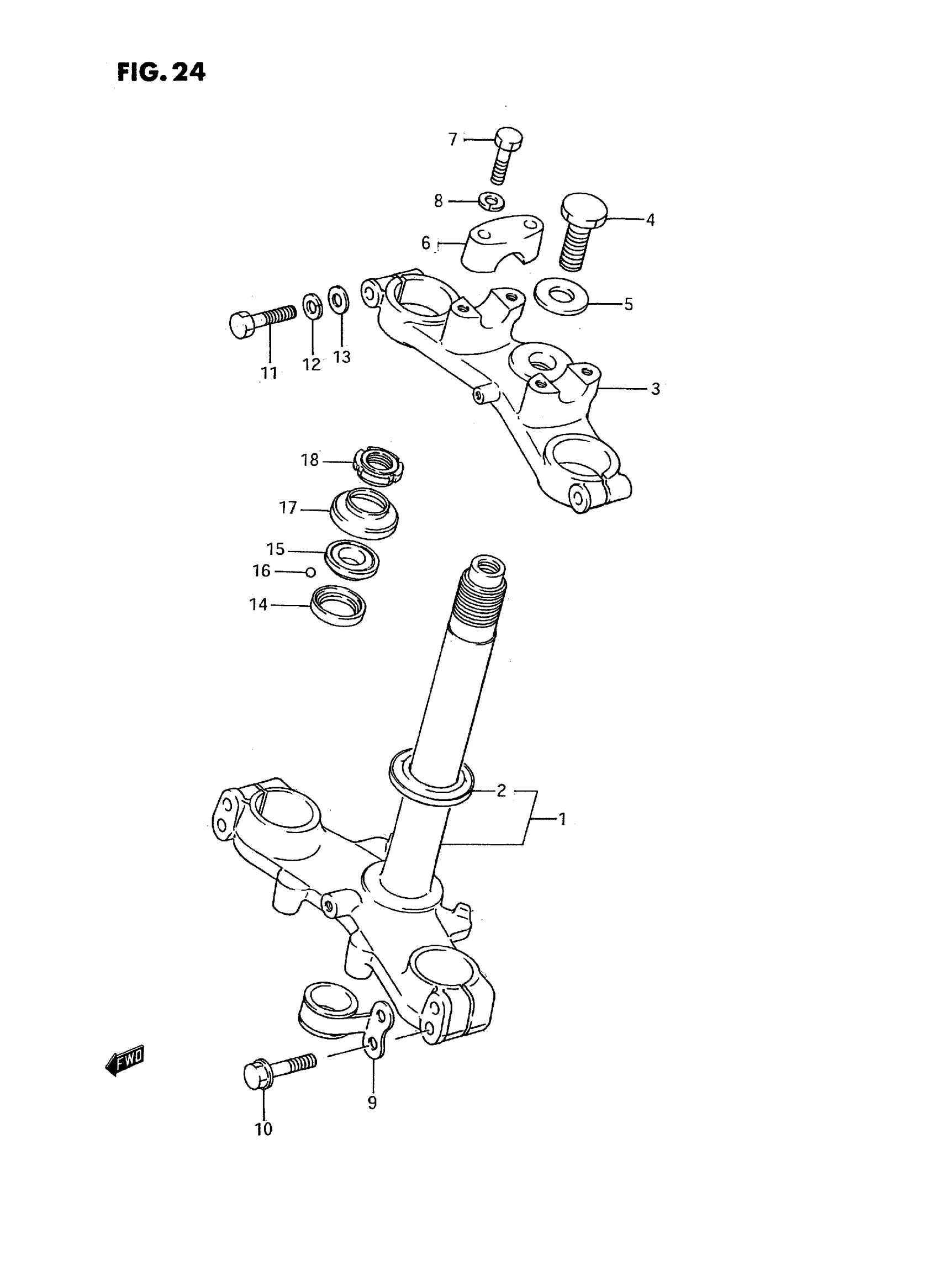

1995 Suzuki RM80S Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | Includes Item(s) 2

51410-02B00

1
Out of stock

2

RACE

51621-02B00

1
Out of stock

3

STEM HEAD, STEERING

51311-02B00

1
Out of stock

4

BOLT This part replaces 51352-02B00.

51352-43530

1
Out of stock

5

WASHER This part replaces 51356-02B00.

51356-43530

1
Out of stock

6

HOLDER, HANDLE UPPER

56211-27100

2
Out of stock

7

BOLT This part replaces 01107-08358.

01500-0835B

4
Out of stock

8

4

$2.28

In stock

9

CLIP

51452-02B00

1
Out of stock

10

BOLT This part replaces 01517-08407.

01550-08407

4
Out of stock

11

BOLT This part replaces 01107-08408.

01500-0840A

2
Out of stock

12

2

$2.28

In stock

13

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

14

RACE, INNER

51611-40201

2
Out of stock

15

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

1
Out of stock

16

STEEL BALL

06111-08003

36
Out of stock

17

SEAL, STEERING DUST This part replaces 51643-34A00.

51643-49002

1
Out of stock

18

NUT, STEERING STEM

51631-28000

1
Out of stock

19

REFER TO FIG.24A(F-10) FOR

SPECIAL NOTE

—
Out of stock
