1995 Suzuki RM80S Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1995 Suzuki RM80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

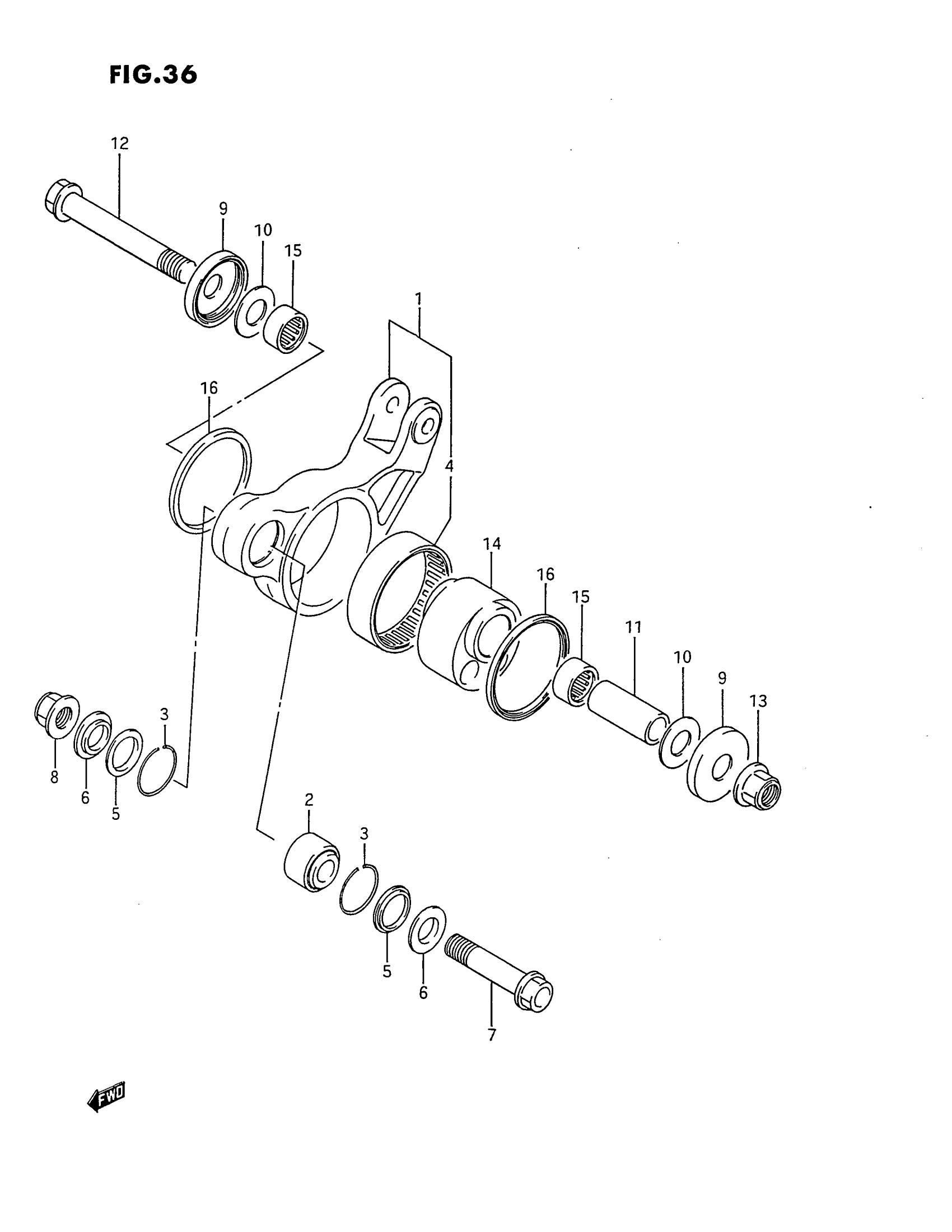

1995 Suzuki RM80S Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4 This part replaces 62600-02821.

62600-02830

1
Out of stock

2

BEARING, FRONT

09269-14001

1
Out of stock

3

RING, STOPPER

62657-01B00

2
Out of stock

4

BEARING

09263-55002

1
Out of stock

5

SEAL, DUST FRONT

62647-01B00

2
Out of stock

6

SPACER

62316-02B00

2
Out of stock

7

BOLT, FRONT

62658-02B00

1
Out of stock

8

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

9

SEAL This part replaces 62683-01B00.

62683-27C01

2
Out of stock

10

THRUST WASHER

08211-14322

2
Out of stock

11

SPACER, CENTER

62646-02B00

1
Out of stock

12

SHAFT

62621-02B00

1
Out of stock

13

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

14

SPACER, ECCENTRIC | ->62623-02B01W/62646-02B01W/08211-14321 2PCS This part replaces 62623-02B00.

62623-02B01

1
Out of stock

15

BEARING

09263-20041

2
Out of stock

16

SEAL, DUST

62624-01B01

2
Out of stock

17

REFER TO FIG.37 (H-8) FOR

SPECIAL NOTE

—
Out of stock
