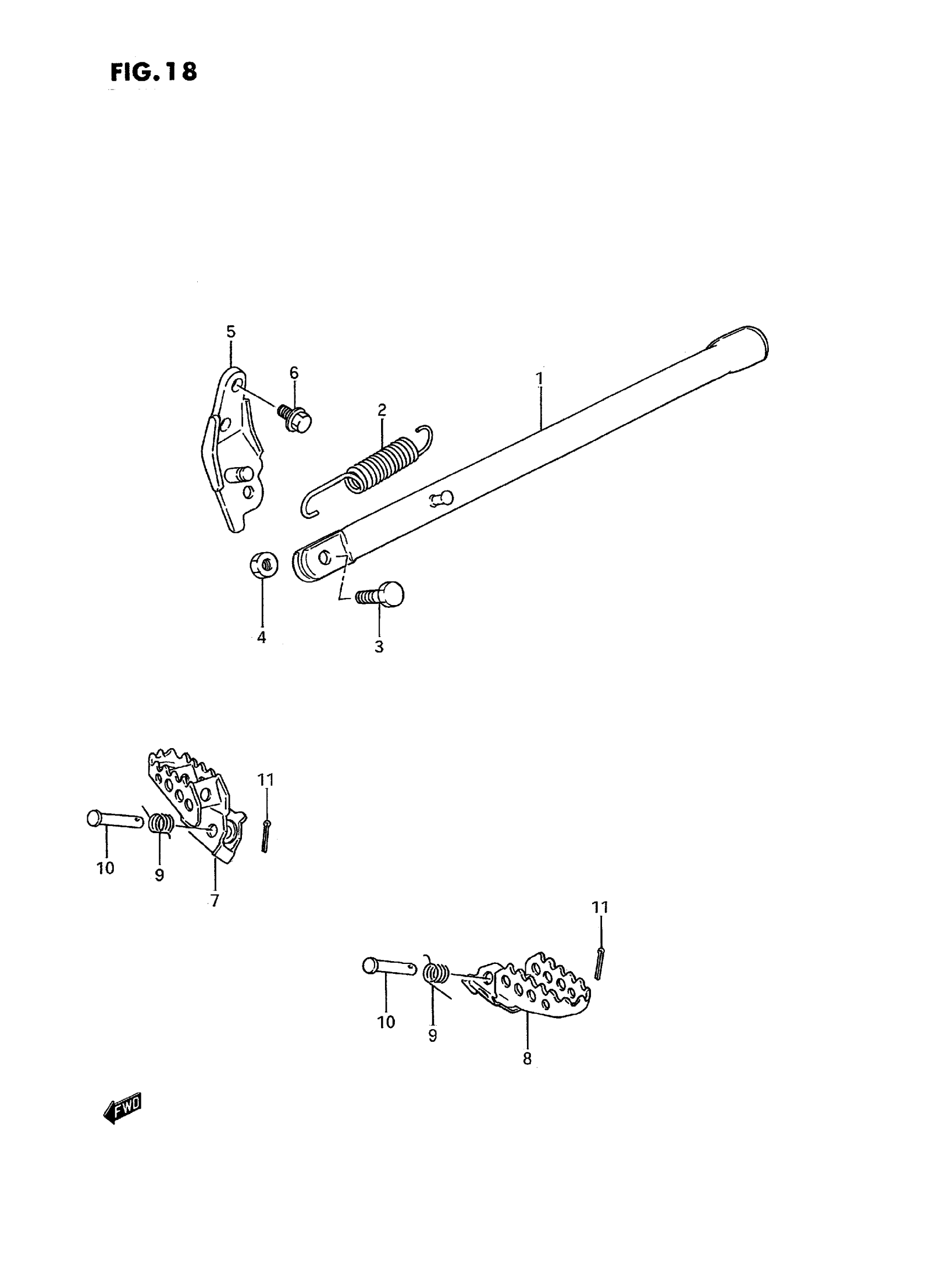

Suzuki RM80S (1995) STAND Diagram

#

Description
Price

1

STAND, PROP (BLACK) | MODEL G/H/J/K/L This part replaces 42310-02B00-19F.

42310-02B00-019

$54.72

1

STAND, PROP (BLACK) | MODEL M/N/P/R/S

42310-02B00-019

$54.72

2

SPRING

09443-17007

$3.91

3

BOLT

09100-08140

$2.10

4

NUT | MODEL G/H/J/K/L/M/N/P This part replaces 08310-22088.

08310-00087

$2.13

4

NUT | MODEL R/S This part replaces 08310-00083.

08310-0008A

$1.84

5

BRACKET, PROP STAND (BLACK) | MODEL G This part replaces 42330-02B00-19F.

42330-02B01-019

Unavailable

5

BRACKET, PROP STAND (BLACK) | MODEL H/J/K/L This part replaces 42330-02B01-19F.

42330-02B01-019

Unavailable

5

BRACKET, PROP STAND (BLACK) | MODEL M/N/P/R/S

42330-02B01-019

Unavailable

6

BOLT (8X16) | MODEL G This part replaces 01517-08166.

01550-0816A

$2.32

6

PLUG, DRAIN | MODEL H/J/K/L/M/N/P This part replaces 01107-08166.

01500-0816B

$2.50

6

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

$2.32

7

FOOTREST, FRONT RH (BLACK) | MODEL G/H/J This part replaces 43550-02B00-19F.

43550-02B01-019

Unavailable

7

FOOTREST, FRONT RH (BLACK) | MODEL K/L This part replaces 43550-02B01-19F.

43550-02B01-019

Unavailable

7

FOOTREST, FRONT RH (BLACK) | MODEL M This part replaces 43550-02B01-0RP.

43550-02B01-019

Unavailable

7

FOOTREST, FRONT RH (BLACK) | MODEL N This part replaces 43550-02B01-1AZ.

43550-02B01-019

Unavailable

7

FOOTREST, FRONT RH (BLACK) | MODEL P/R/S

43550-02B01-019

Unavailable

8

FOOTREST, FRONT LH (BLACK) | MODEL G/H/J/K/L This part replaces 43560-02B00-19F.

43560-02B00-019

Unavailable

8

FOOTREST, FRONT LH (BLACK) | MODEL M This part replaces 43560-02B00-0RP.

43560-02B00-019

Unavailable

8

FOOTREST, FRONT LH (BLACK) | MODEL N This part replaces 43560-02B00-1AZ.

43560-02B00-019

Unavailable

8

FOOTREST, FRONT LH (BLACK) | MODEL P/R/S

43560-02B00-019

Unavailable

9

SPRING

09448-14012

$3.04

10

PIN

09200-08057

$2.36

11

COTTER PIN | MODEL G/H/J/K/L/N This part replaces 04111-20208.

04111-2020A

$1.49

11

PIN | MODEL N/P/R/S

09204-01002

$1.61
