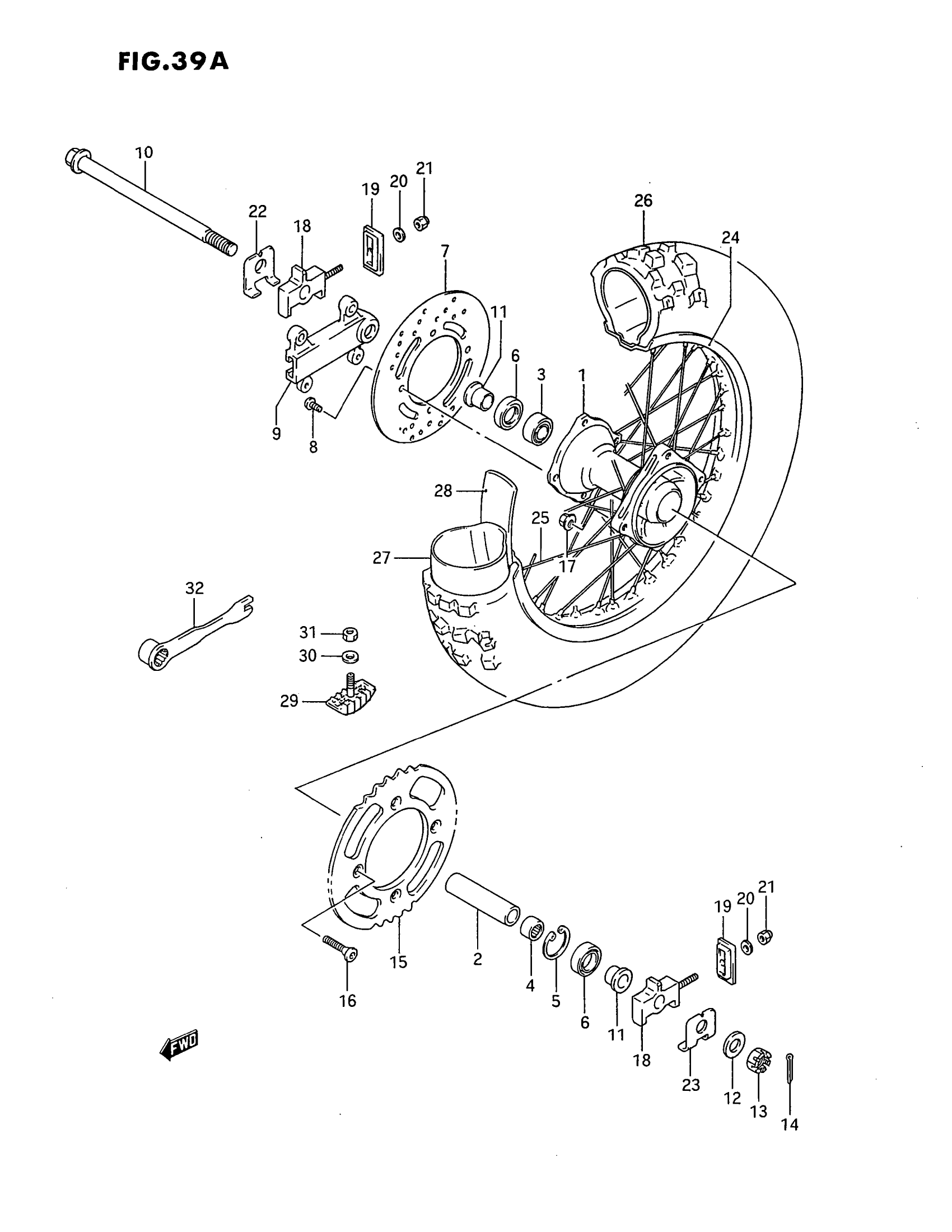

Suzuki RM80S (1995) REAR WHEEL (MODEL L/M/N/P/R/S) Diagram

#

Description
Price

1

HUB, REAR WHEEL This part replaces 64111-02B42.

64111-02B43

$322.15

2

SPACER, HUB BEARING

64731-02B40

$27.55

3

BEARING, RH

08123-60027

$25.32

4

BEARING, LH

09262-15021

$23.75

5

CIRCLIP This part replaces 08331-41356.

08331-41359

$2.28

6

SEAL, DUST

09283-20024

$4.68

7

DISC,REAR BRAKE This part replaces 69211-02B40.

69211-02B41

Unavailable

8

SCREW | MODEL L/M/N/P This part replaces 02122-06128.

02122-06127

$1.83

8

SCREW | MODEL R/S This part replaces 02122-06123.

02122-0612A

$1.43

9

BRACKET, CALIPER | MODEL L/MWITH 2-M6 This part replaces 69721-02B40.

69721-02B42

Unavailable

9

BRACKET, CALIPER | MODEL N/P/R/SWITH OUT 2-M6 This part replaces 69721-02B41.

69721-02B42

Unavailable

10

AXLE, REAR

64711-02B40

Unavailable

11

SPACER, AXLE This part replaces 64741-02B40.

64741-02B41

$71.23

12

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

$2.79

13

NUT

09141-14004

$3.52

14

PIN This part replaces 04111-30308.

04111-3030A

$1.37

15

SPROCKET, REAR (NT:48)

64511-20920

Unavailable

15

SPROCKET, REAR (NT:46) | OPT

64511-20980

Unavailable

15

SPROCKET, REAR (NT:47) | OPT

64511-20550

Unavailable

15

SPROCKET, REAR (NT:49) | OPT

64511-02B40

Unavailable

16

SCREW

09120-08010

$2.39

17

NUT | MODEL L

09159-08034

$1.62

17

NUT | MODEL M/N/P/R/S

09159-08067

$5.03

18

ADJUSTER, CHAIN

61410-02B02

Unavailable

19

PLATE,CHAIN ADJ This part replaces 61421-02B00.

61421-02B0V

$7.85

20

WASHER | MODEL L/M/N/P This part replaces 08322-21067.

08322-01067

$1.86

20

.WASHER | MODEL R/S This part replaces 08322-01063.

08322-0106B

$2.24

21

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

22

WASHER, RH

64712-02B00

$4.05

23

WASHER, LH

64713-02B00

$3.90

24

RIM, WHEEL (1.60X14)

65311-02B40

Unavailable

25

SPOKE ASSY, WHEEL | MODEL L

65320-02B40

Unavailable

25

SPOKE ASSY, WHEEL | MODEL M/N/P/R This part replaces 65320-02B50.

65320-02B51

Unavailable

25

SPOKE ASSY, WHEEL | MODEL S

65320-02B51

Unavailable

26

TIRE, REAR (90/100-14)

65110-02B40

Unavailable

27

TUBE ASSY, INNER

65200-02B40

Unavailable

28

PROTECTOR, TUBE

65261-02B40

$7.48

29

STOPPER, BEAD | ->65270-43D00 This part replaces 65270-46910.

65270-43D00

$66.32

29

STOPPER, BEAD

65270-43D00

$66.32

30

WASHER | MODEL L/M/N/P This part replaces 08322-11088.

08322-01087

$1.86

30

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$2.18

31

NUT | MODEL L/M/N/P This part replaces 08310-12088.

08310-00087

$1.83

31

NUT | MODEL R/S This part replaces 08310-00083.

08310-0008A

$1.86

32

BOLT, SPANNER

09816-00126

Unavailable
