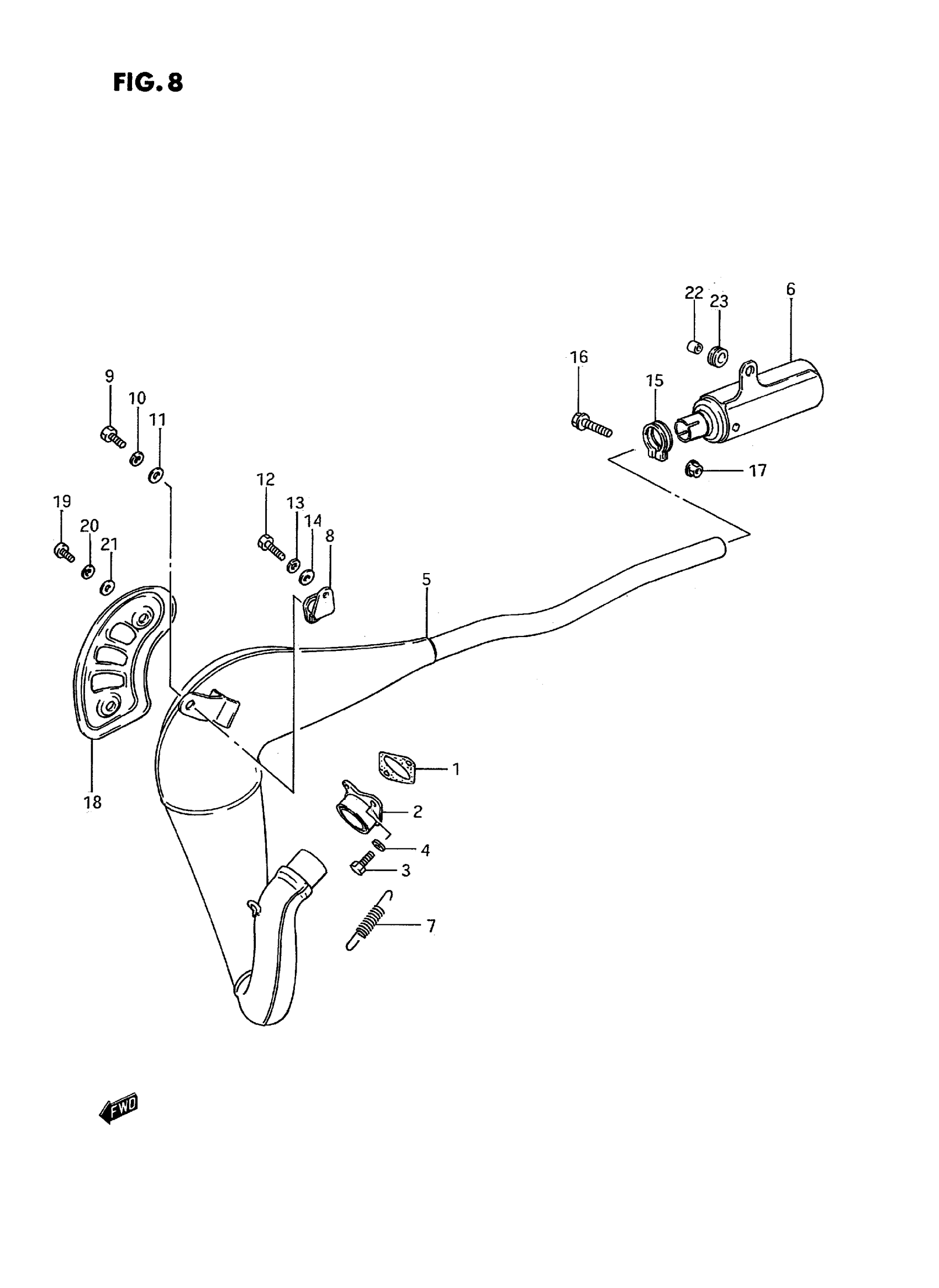

Suzuki RM80S (1995) MUFFLER (MODEL G/H/J) Diagram

#

Description
Price

1

GASKET, EXHAUST FLANGE

14181-02B00-H17

Unavailable

2

FLANGE, EXHAUST PIPE

14170-02B10

Unavailable

3

BOLT | MODEL G This part replaces 01107-06165.

01500-0616A

$1.77

3

BOLT, CANISTER | MODEL H/J This part replaces 01107-06167.

01500-06167

$1.97

4

LOCK WASHER | MODEL G This part replaces 08321-21064.

08321-0106A

$1.83

4

LOCK WASHER | MODEL H/J This part replaces 08321-21067.

08321-01067

$1.83

5

MUFFLER, 1ST | MODEL G/H This part replaces 14310-02B12-H01.

14310-02B13-H01

Unavailable

5

MUFFLER, 1ST | MODEL J

14310-02B13-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 14330-02B15-H01.

14330-02B30

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14330-02B30-H01.

14330-02B30

Unavailable

7

SPRING

09443-12033

$5.20

8

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$10.75

9

BOLT This part replaces 01107-06125.

01500-0612A

$1.80

10

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

11

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

12

BOLT This part replaces 01107-06165.

01500-0616A

$1.77

13

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

14

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

15

CLAMP

14772-20401

Unavailable

16

BOLT This part replaces 01517-06257.

01550-06257

$2.31

17

NUT This part replaces 08316-26068.

08316-2006A

$2.87

18

COVER, MUFFLER

14781-20910

Unavailable

19

SCREW This part replaces 02112-06104.

02112-0610B

$1.83

20

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83

21

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

22

SPACER This part replaces 09180-06152.

09180-06262

$2.64

23

CUSHION

09320-08037

$4.03

24

REFER TO FIG.8A (C-14) FOR

SPECIAL NOTE

Unavailable
