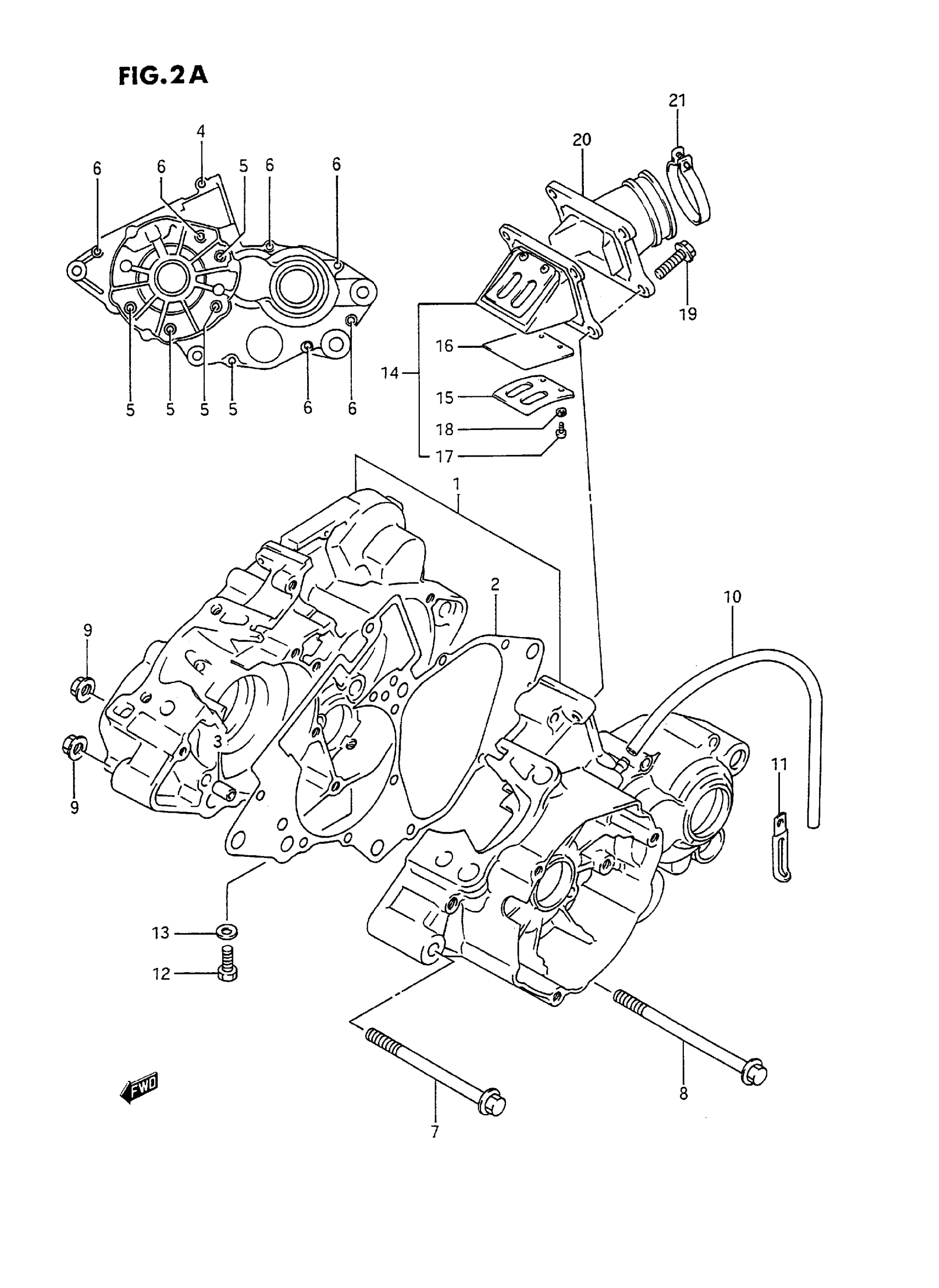

Suzuki RM80S (1995) CRANKCASE (MODEL K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11305-02830.

11300-03812

Unavailable

2

GASKET, CRANKCASE

11481-02B40

Unavailable

3

PIN

04211-09129

$1.64

4

BOLT

01547-06357

$2.01

5

BOLT

01547-06407

$2.34

6

BOLT

01547-06507

$2.42

7

BOLT (8X95)

09103-08183

Unavailable

8

BOLT (8X105)

09103-08184

Unavailable

9

NUT

09159-08067

$5.03

10

HOSE 4X7X600 | L:600->350 This part replaces 09352-40703-600.

09352-40706-600

$4.68

11

CLAMP This part replaces 09404-06402.

09404-06039

$1.73

12

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

13

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

14

VALVE ASSY,REED | Includes Item(s) 15 - 18 This part replaces 13150-02B40.

13150-02B51

$161.65

15

STOPPER, REED VALVE

13152-02B40

Unavailable

16

VALVE, REED

13153-02B40

$14.91

17

SCREW This part replaces 02112-03066.

02112-0306B

$1.61

18

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.78

19

BOLT

01547-06207

$2.01

20

PIPE, INTAKE

13110-02B40

Unavailable

21

CLAMP This part replaces 09402-42306.

09402-42303

$4.36

22

REFER TO FIG.2B (B-10) FOR

SPECIAL NOTE

Unavailable
