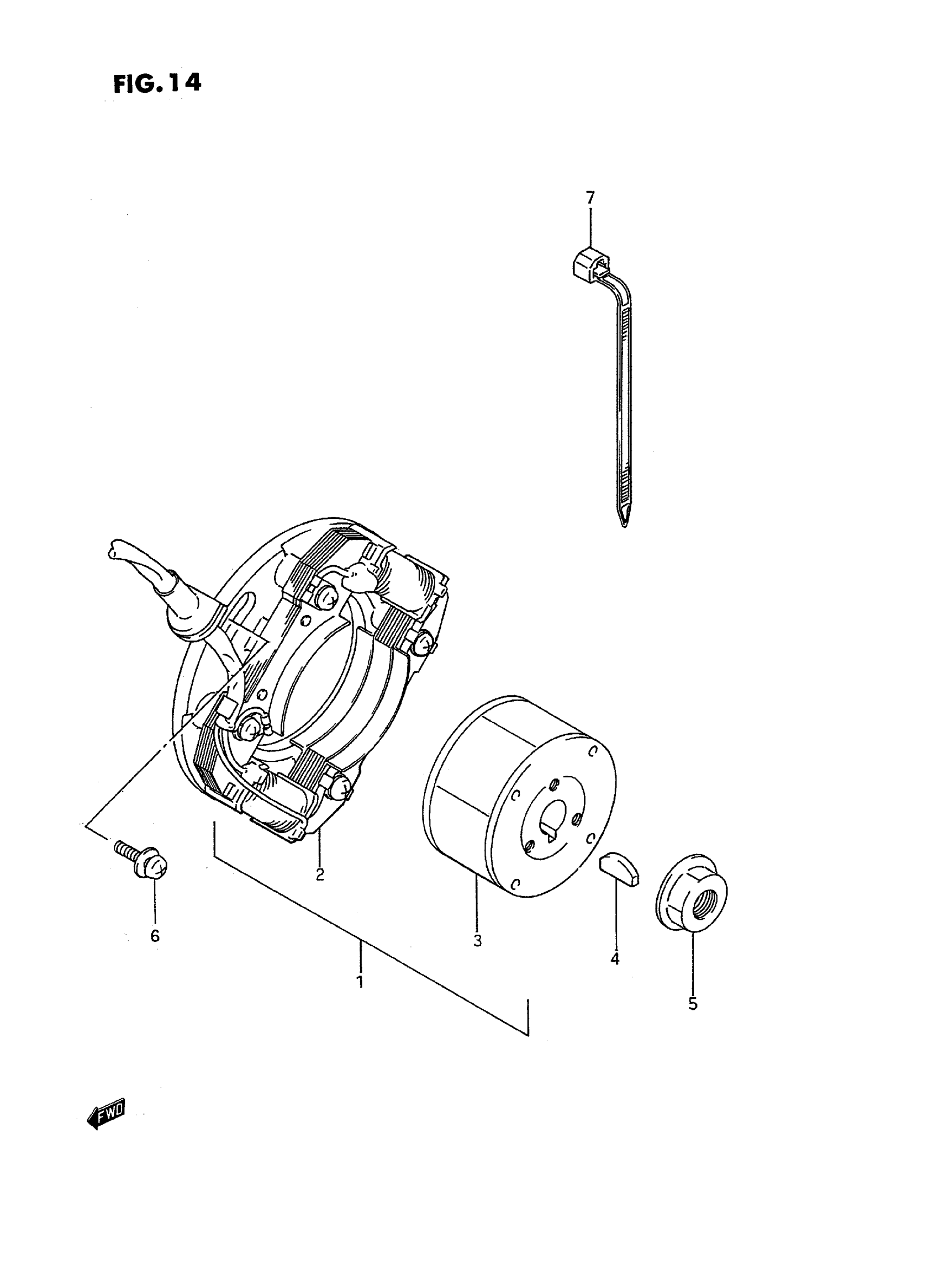

Suzuki RM80S (1995) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL G/H

32100-02B21

Unavailable

1

MAGNETO ASSY | MODEL J/K/L/M This part replaces 32100-02B30.

32100-02B32

Unavailable

1

MAGNETO ASSY | MODEL N/P/R/S; Includes Item(s) 2 - 3 This part replaces 32100-02B31.

32100-02B32

Unavailable

2

STATOR | MODEL G/H This part replaces 32101-02B21.

32101-02B32

$436.10

2

STATOR | MODEL J/K/L/M This part replaces 32101-02B30.

32101-02B32

$436.10

2

STATOR | MODEL N/P/R/S This part replaces 32101-02B31.

32101-02B32

$436.10

3

ROTOR | MODEL G/H

32102-02B20

Unavailable

3

ROTOR | MODEL J/K/L/M/N/P/R/S This part replaces 32102-02B30.

32102-02B31

Unavailable

4

KEY | MODEL G/H/J/K/L/M/N/P/R This part replaces 08341-31049.

09420-04008

$3.42

4

KEY | MODEL S

09420-04008

$3.42

5

NUT, WHEEL SET | MODEL G/H/J/K/L/M/N This part replaces 08316-16108.

08316-10107

$2.39

5

NUT | MODEL P/R/S This part replaces 08316-10103.

08316-1010B

$2.66

6

SCREW This part replaces 02112-16203.

02112-1620B

$2.62

7

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP This part replaces 09407-18403.

09407-18402

$2.19
