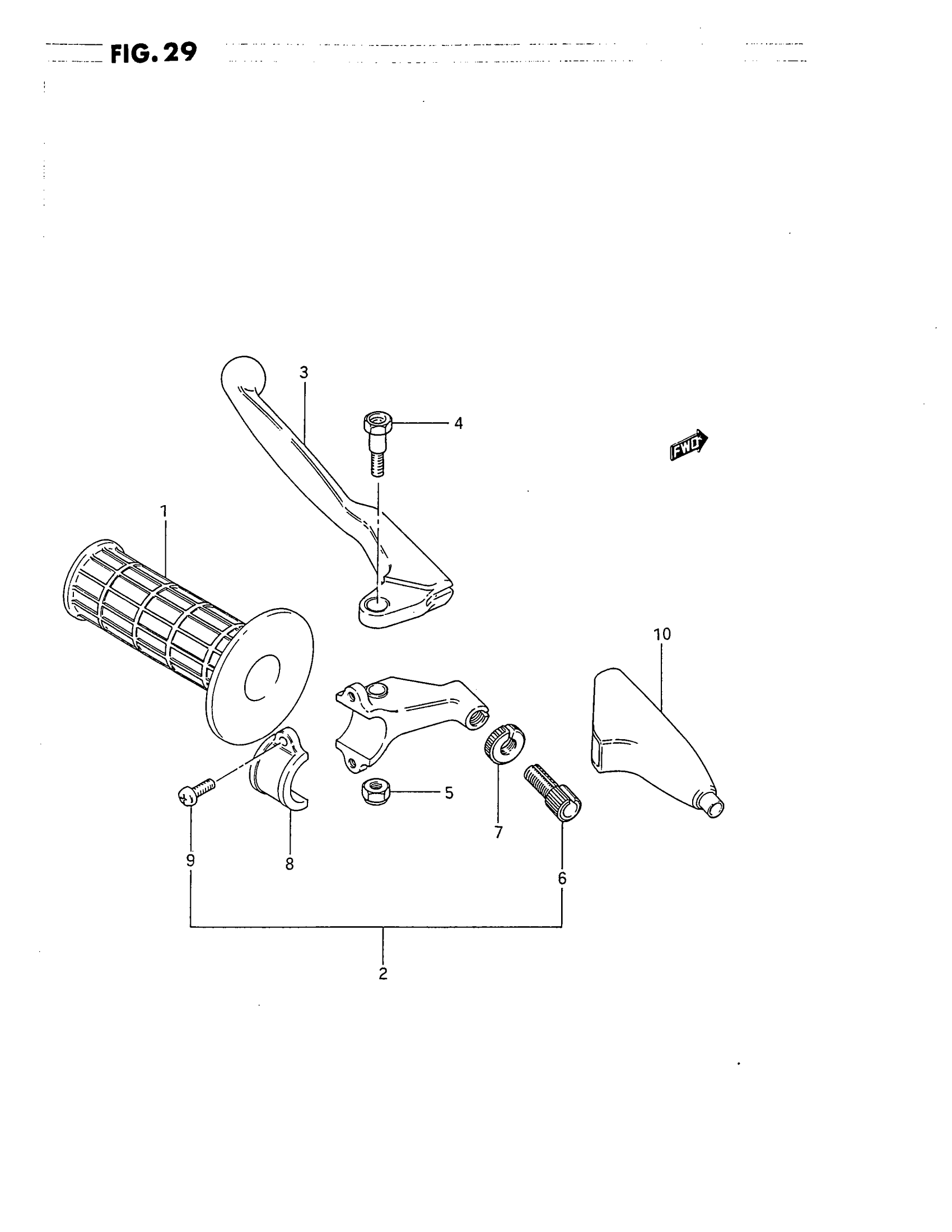

Suzuki RM80S (1995) LEFT HANDLE GRIP (MODEL G/H/J) Diagram

#

Description

Price

1

GRIP LH This part replaces 57211-40201.

57211-27C00

$11.75

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 9 This part replaces 57500-14311.

57500-14300

Unavailable

3

LEVER, CLUTCH

57620-14310

$30.33

4

BOLT This part replaces 57431-14311.

57431-14301

$6.33

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.38

6

ADJUSTER, CABLE This part replaces 57441-14310.

57441-14210

$11.20

7

NUT This part replaces 57442-14310.

57442-14200

$6.60

8

BRACKET This part replaces 57512-14310.

57512-14300

$46.20

9

SCREW

09125-05051

Unavailable

10

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.24

11

REFER TO FIG.29A(G- 5) FOR

SPECIAL NOTE

Unavailable
