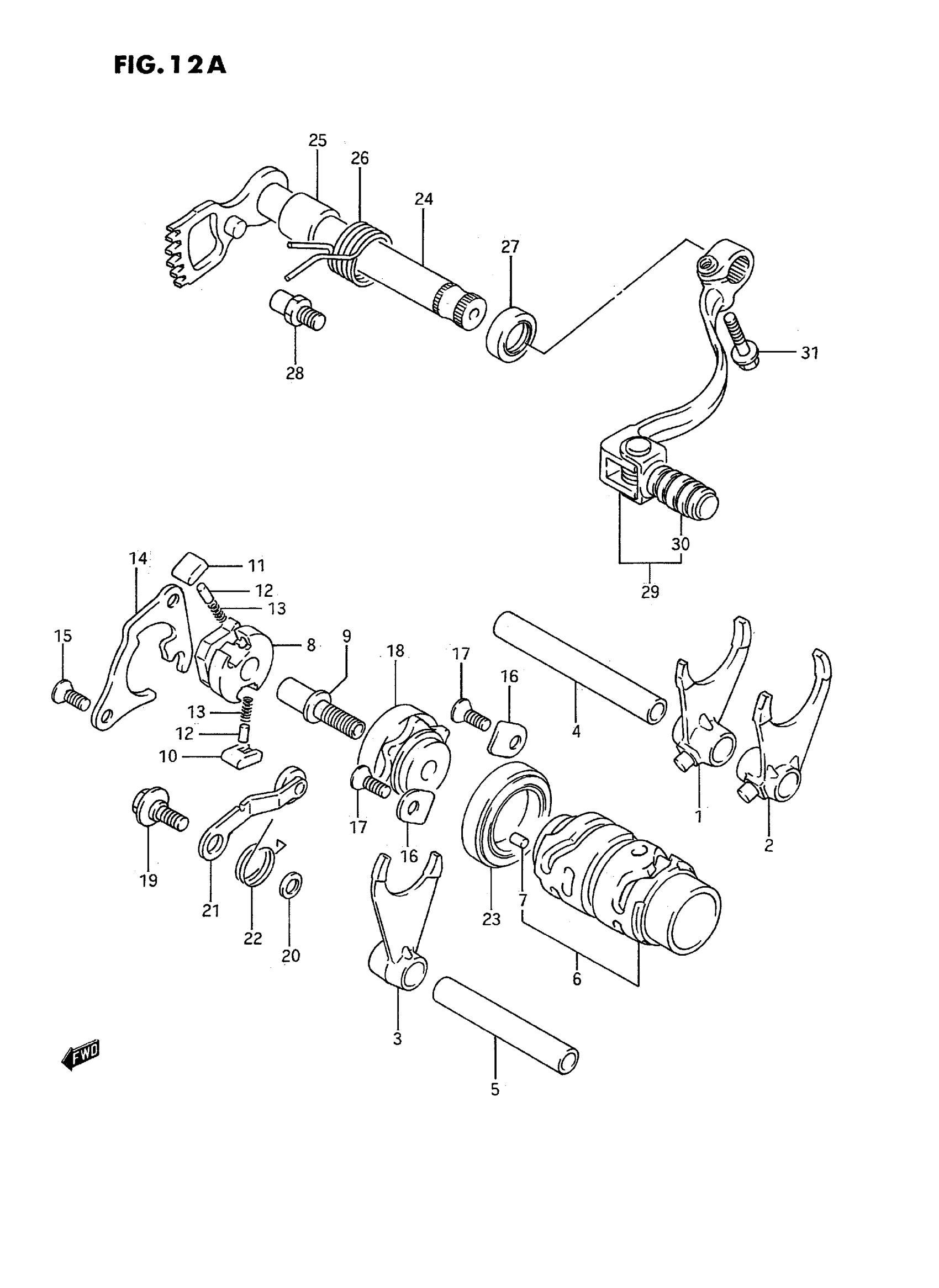

Suzuki RM80S (1995) GEAR SHIFTING (MODEL K/L/M/N/P/R/S) Diagram

#

Description
Price

1

FORK, NO.1

25211-02B41

$71.03

2

FORK, NO.2

25221-02B41

$71.03

3

FORK, NO.3

25231-02B40

$66.48

4

SHAFT, NO.1 (L:90) This part replaces 25411-02B40.

25411-02B41

Unavailable

5

SHAFT, NO.2 (L:60) This part replaces 25421-27C00.

25421-27C01

$20.82

6

CAM | MODEL K This part replaces 25310-02B41.

25310-03B00

Unavailable

6

CAM | MODEL L This part replaces 25310-02B50.

25310-03B00

Unavailable

6

CAM | MODEL M/N/P/R/S; Includes Item(s) 7 - 7

25310-03B00

Unavailable

7

PIN, SHIFT CAM STOPPER PLATE | L:11.8,MODEL K

09261-04011

Unavailable

7

PIN (4X13.8) | MODEL L/M/N/P/R

04221-04089

$1.10

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL G/H/J/K/L/M/N This part replaces 25313-27C00.

25313-27C02

$14.73

9

PIN, SHIFT CAM DRIVEN GEAR | MODEL P/R/S This part replaces 25313-27C01.

25313-27C02

$14.73

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN

09261-05003

$1.69

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-27C00

$27.32

15

SCREW This part replaces 02122-06123.

02122-0612A

$1.43

16

RETAINER

24741-20A00

$2.80

17

SCREW This part replaces 02122-06123.

02122-0612A

$1.43

18

PLATE, SHIFT CAM STOPPER | MODEL K This part replaces 25381-27C02.

25381-28C20

Unavailable

18

PLATE, SHIFT CAM STOPPER | MODEL L This part replaces 25381-27C10.

25381-28C20

Unavailable

18

PLATE, STOPPER | MODEL M/N/P/R/S

25381-28C20

Unavailable

19

BOLT, SHIFT CAM STOPPER

09111-06041

$2.63

20

WASHER

08211-06121

$1.56

21

STOPPER, CAM | MODEL K/L This part replaces 25350-27C00.

25350-27C30

$18.03

21

STOPPER, CAM | MODEL M/N/P/R/S

25350-27C30

$18.03

22

SPRING

09448-18020

Unavailable

23

BEARING, RH

08140-69050

$32.18

24

SHAFT, GEAR SHIFTING | MODEL K/L/M This part replaces 25510-02B42.

25510-28C30

$108.60

24

SHAFT, GEAR SHIFTING | MODEL N/P/R/S

25510-28C30

$108.60

25

SPACER (14X20X17.5)

09180-14016

$3.57

26

SPRING

09444-26013

$2.84

27

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

29

LEVER ASSY,GEAR | MODEL K/L This part replaces 25600-02B41.

25600-02B44

Unavailable

29

LEVER ASSY,GEAR | MODEL M This part replaces 25600-02B42.

25600-02B44

Unavailable

29

LEVER ASSY,GEAR | MODEL N/P/R/S; Includes Item(s) 30 This part replaces 25600-02B43.

25600-02B44

Unavailable

30

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$25.80

31

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73
