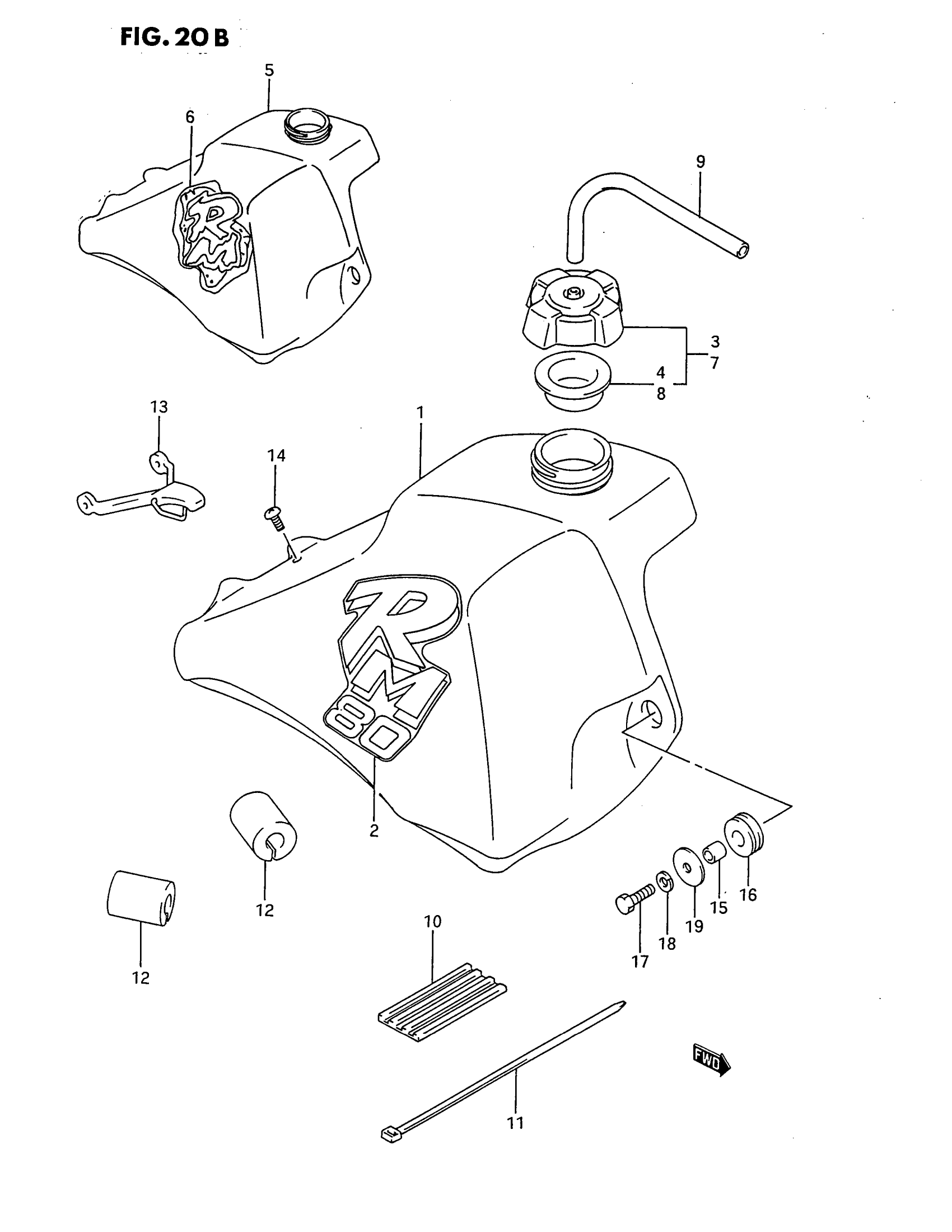

Suzuki RM80S (1995) FUEL TANK (MODEL L/M) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L; Includes Item(s) 2 - 4 This part replaces 44100-02890-25Y.

44101-02841-25Y

Unavailable

2

EMBLEM | MODEL L This part replaces 68111-02B40-3MB.

68111-03B30-C2M

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-14820.

44200-27871

$22.96

4

GASKET This part replaces 44248-40400.

44248-05211

$3.76

5

NO DESCRIPTION AVAILABLE | MODEL M; Includes Item(s) 6 - 8 This part replaces 44101-02810-25Y.

44101-02811-25Y

Unavailable

6

EMBLEM, FUEL TANK | MODEL M

68111-03B00-0WN

Unavailable

7

CAP SET,FUEL TA This part replaces 44200-14820.

44200-27871

$22.96

8

GASKET This part replaces 44248-40400.

44248-05211

$3.76

9

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

$10.06

10

CUSHION, UPPER FRONT

44541-14300

$8.12

11

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

12

CUSHION, UPPER REAR

44542-17300

$8.12

13

BAND, REAR

44560-26C00

$16.25

14

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

15

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

16

CUSHION This part replaces 09320-10029.

09320-10080

$7.80

17

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

$1.86

20

REFER TO FIG.20C(E-12) FOR

SPECIAL NOTE

Unavailable
