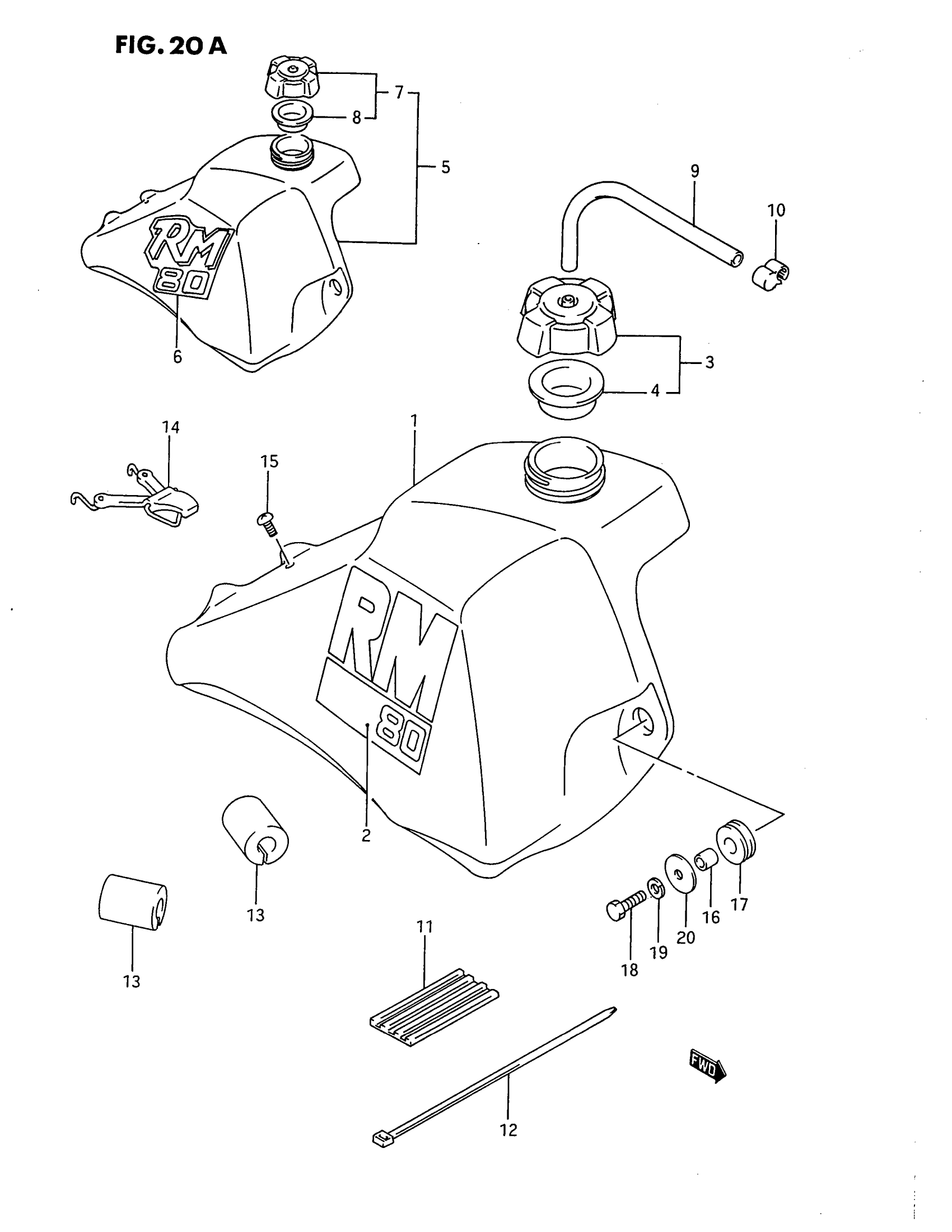

Suzuki RM80S (1995) FUEL TANK (MODEL J/K) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | MODEL J; Includes Item(s) 2 - 4 This part replaces 44100-02870-25Y.

44110-02B00-25Y

Unavailable

2

EMBLEM, FUEL TANK | MODEL J This part replaces 68111-02B20-9UR.

68111-03B00-0WN

Unavailable

3

CAP SET,FUEL TA | MODEL J This part replaces 44200-14820.

44200-27871

$22.96

4

GASKET | MODEL J This part replaces 44248-40400.

44248-05211

$3.76

5

NO DESCRIPTION AVAILABLE | MODEL K; Includes Item(s) 6 - 8 This part replaces 44100-02880-25Y.

44101-02841-25Y

Unavailable

6

EMBLEM, FUEL TANK | MODEL K

68111-02B30-2DP

Unavailable

7

CAP SET,FUEL TA | MODEL K This part replaces 44200-14820.

44200-27871

$22.96

8

GASKET | MODEL K This part replaces 44248-40400.

44248-05211

$3.76

9

HOSE,5X10X600 | MODEL J This part replaces 09352-50823-240.

44421-13ER0

$10.06

9

HOSE,5X10X600 | MODEL K This part replaces 09352-50823-280.

44421-13ER0

$10.06

10

CLAMP | MODEL J

44486-32101

$3.65

11

CUSHION, UPPER FRONT

44541-14300

$8.12

12

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

13

CUSHION, UPPER REAR

44542-17300

$8.12

14

BAND, REAR

44560-02B00

Unavailable

15

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

16

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

17

CUSHION This part replaces 09320-10029.

09320-10080

$7.80

18

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

19

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

20

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

$1.86

21

REFER TO FIG.20B (E-11) FOR

SPECIAL NOTE

Unavailable
