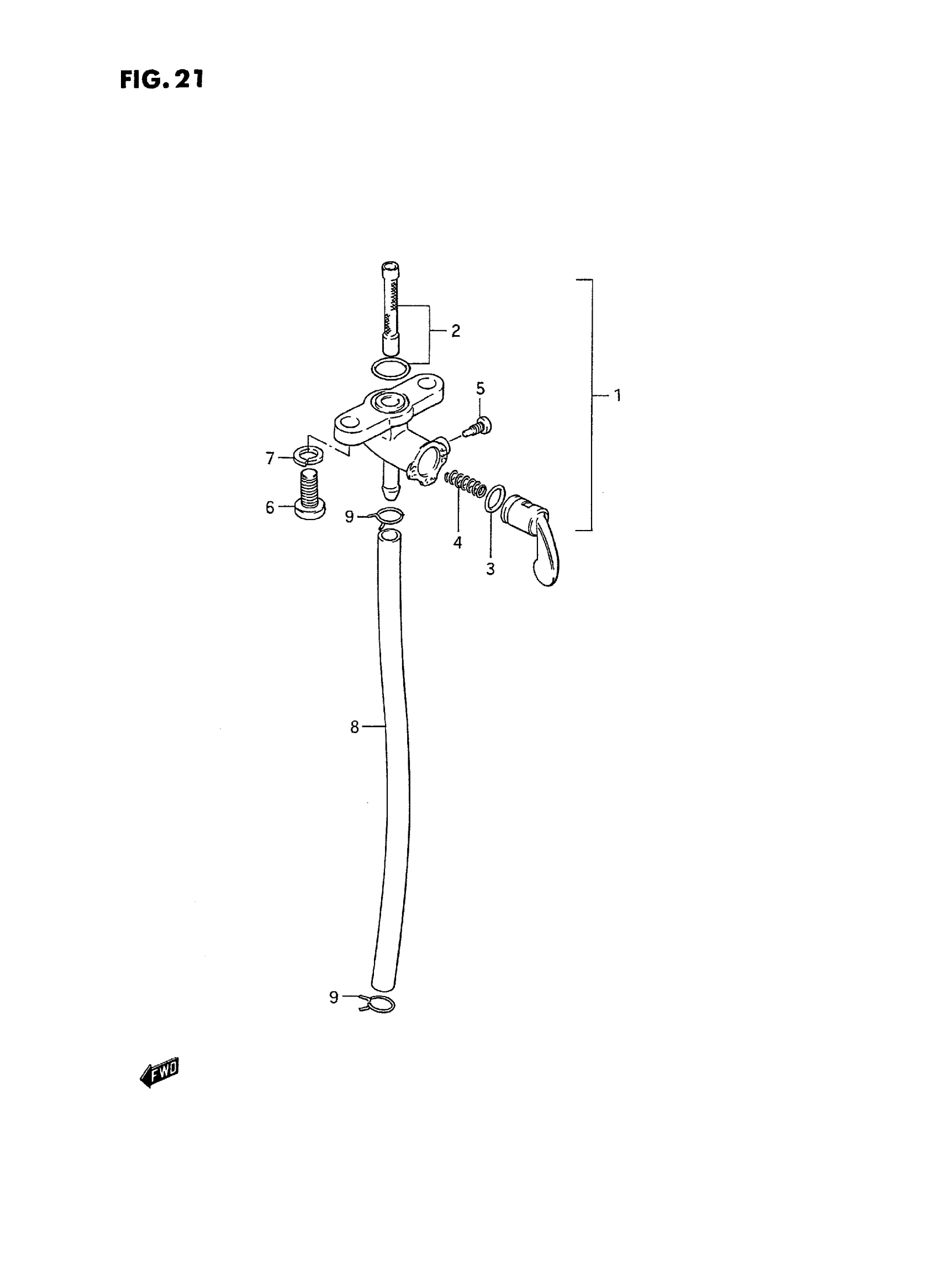

Suzuki RM80S (1995) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY, FUEL | Includes Item(s) 2 - 5

44300-41371

$46.36

2

FILTER SET

44300-41810

$11.24

3

O RING

44353-41370

$4.37

4

SPRING This part replaces 44357-41370.

44357-32470

$2.21

5

SCREW

44343-41370

$2.22

6

SCREW | MODEL G/H/J/K

02112-06167

$1.49

6

SCREW | MODEL L/M/N/P This part replaces 02112-36168.

02112-36167

$2.34

6

SCREW | MODEL R/S This part replaces 02112-36163.

02112-3616A

$1.97

7

LOCK WASHER | MODEL G/H/J/K This part replaces 08321-21067.

08321-01067

$2.13

8

HOSE,5X10X600 | MODEL G/H This part replaces 09343-05129.

44421-13ER0

$10.06

8

HOSE,5X10X600 | MODEL J This part replaces 09352-50823-240.

44421-13ER0

$10.06

8

HOSE | MODEL K

09352-50823-180

Unavailable

8

HOSE,5X10X600 | MODEL L/M/N/P/R This part replaces 09352-50823-300.

44421-13ER0

$10.06

8

HOSE,5X10X600 | MODEL S This part replaces 09352-50823-600.

44421-13ER0

$10.06

9

CLIP

09401-08401

$1.54
