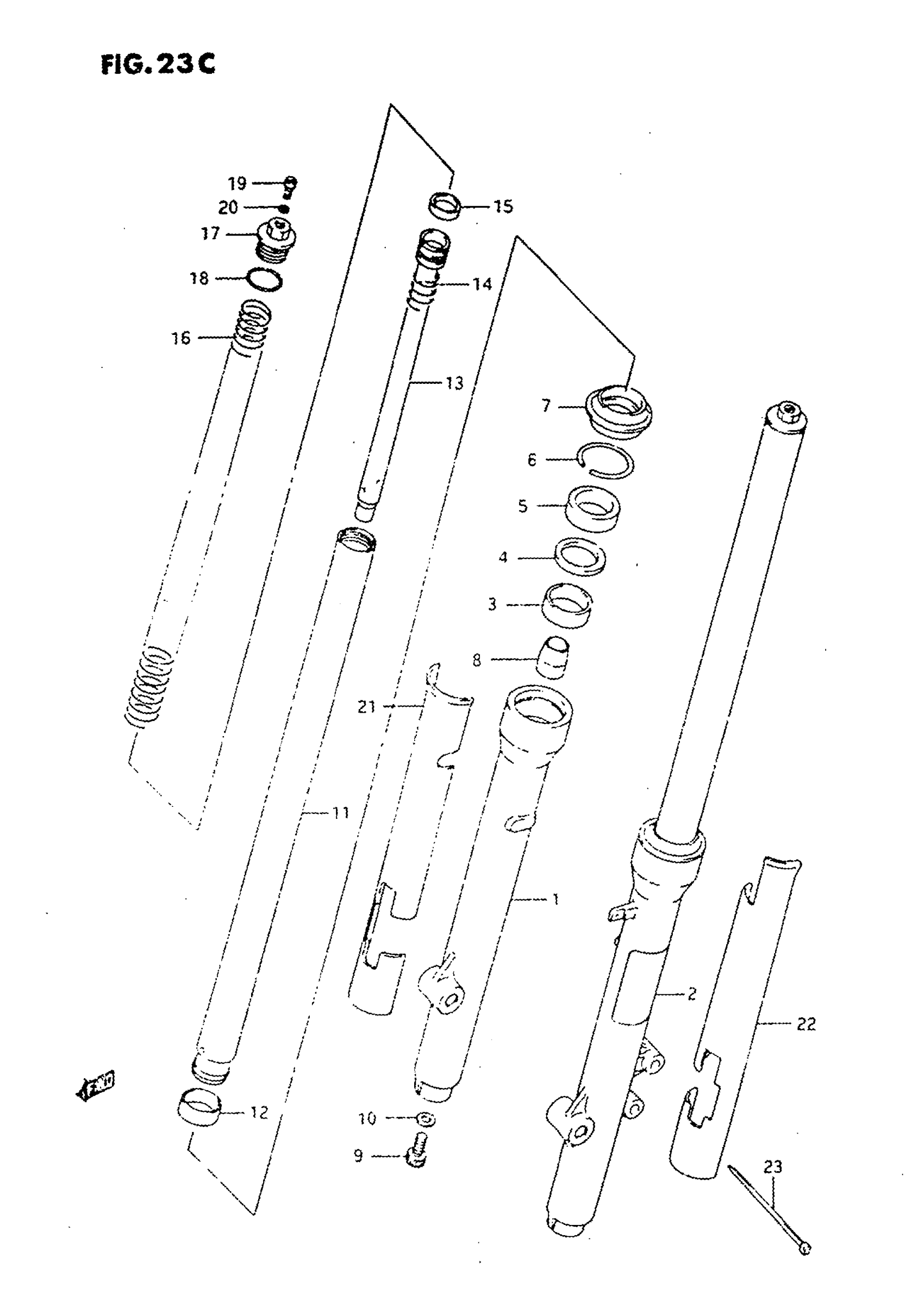

Suzuki RM80S (1995) FRONT FORK (MODEL S) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-02B60

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 20

51104-02B60

Unavailable

1

TUBE, OUTER RH

51130-02B60

Unavailable

2

TUBE, OUTER LH

51140-02B60

Unavailable

3

BUSH, GUIDE

51152-45400

$15.10

4

SPACER, SEAL

51168-30B00

$6.31

5

SEAL, OIL

51153-19D10

$22.96

6

RING, STOPPER

51156-01A00

$4.34

7

SEAL, DUST This part replaces 51571-34A00.

51571-03B20

$29.82

8

PIECE, OIL LOCK

51195-02B40

Unavailable

9

BOLT

51147-48130

$4.34

10

O RING

51148-36011

$3.56

11

TUBE, INNER

51110-02B40

Unavailable

12

BUSH, SLIDE

51121-34A00

Unavailable

13

SEAT, UNDER

51194-02B40

Unavailable

14

SPRING, REBOUND

51177-02B20

Unavailable

15

RING, PISTON

51196-02B40

Unavailable

16

SPRING

51171-02B40

Unavailable

17

BOLT, FORK

51351-02B60

Unavailable

18

O RING

51117-02B20

Unavailable

19

BOLT, PLUG

51357-27C40

$10.45

20

O RING

51117-19C10

$4.10

21

PROTECTOR, FRONT FORK RH | OPT

51201-02B00

Unavailable

22

PROTECTOR, FRONT FORK LH | OPT

51202-02B00

Unavailable

23

CLAMP | OPT This part replaces 09407-20404.

09407-25402

$4.64
