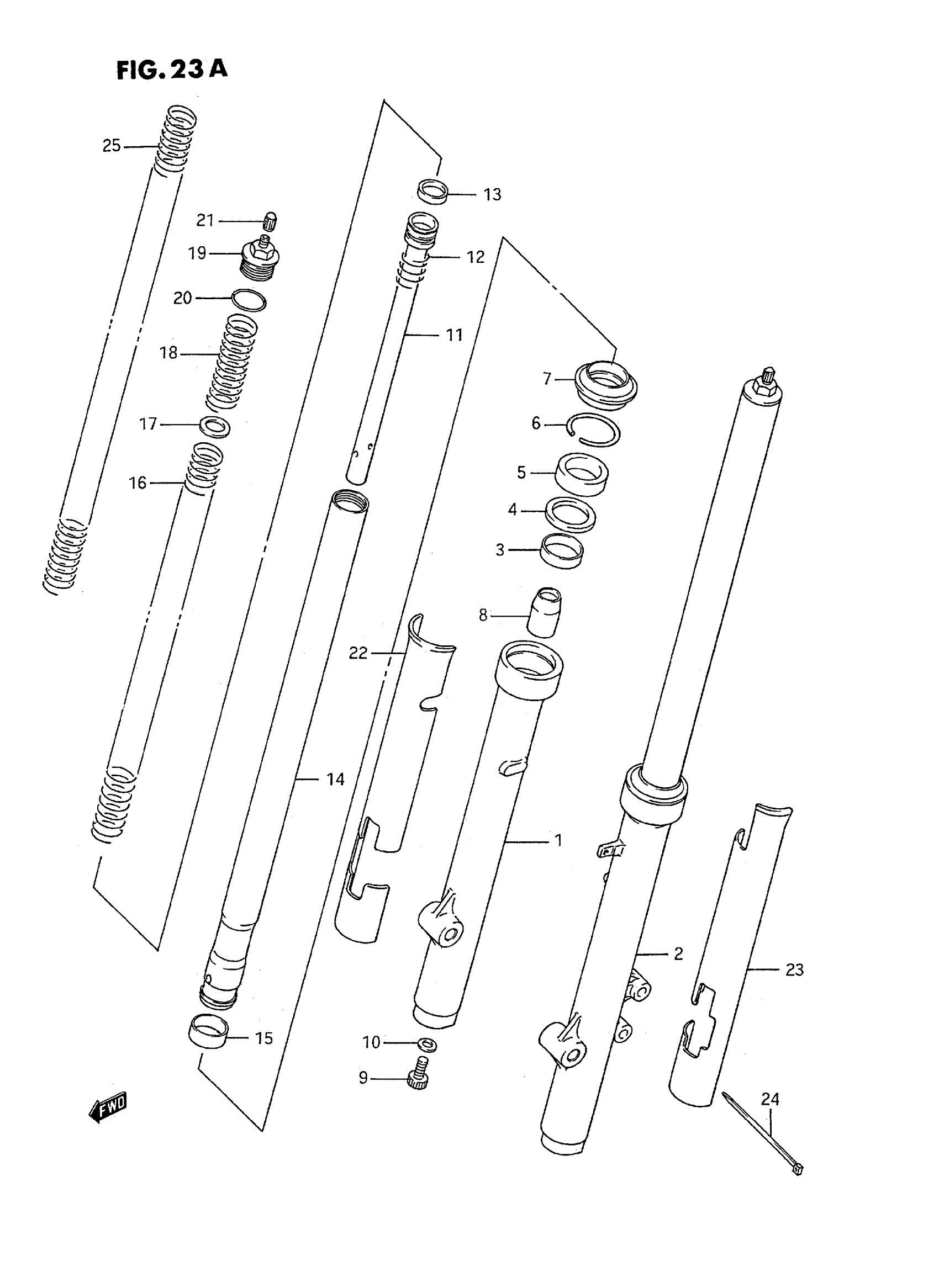

Suzuki RM80S (1995) FRONT FORK (MODEL K) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-02B20

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 21

51104-02B20

Unavailable

1

TUBE, OUTER RH

51130-02B20

Unavailable

2

TUBE, OUTER LH

51140-02B20

Unavailable

3

BUSH, GUIDE

51152-45400

$15.10

4

SPACER, SEAL

51168-30B00

$6.31

5

SEAL, OIL This part replaces 51153-34A00.

51153-19D10

$22.96

6

RING, STOPPER

51156-01A00

$4.34

7

SEAL, DUST This part replaces 51571-34A00.

51571-03B20

$29.82

8

PIECE, OIL LOCK

51195-02B20

Unavailable

9

BOLT

51147-02B01

Unavailable

10

O RING

51148-02B00

Unavailable

11

SEAT, UNDER

51194-02B20

Unavailable

12

SPRING, REBOUND

51177-02B20

Unavailable

13

RING, PISTON

51196-38A00

Unavailable

14

TUBE, INNER

51110-02B20

Unavailable

15

BUSH, SLIDE

51121-34A00

Unavailable

16

SPRING, LOWER

51174-02B20

Unavailable

17

JOINT, SPRING

51172-34370

$3.37

18

SPRING, UPPER

51171-02B20

Unavailable

19

BOLT, FORK

51351-02B20

Unavailable

20

O RING

51117-02B20

Unavailable

21

CAP, VALVE

51294-20400

$7.37

22

PROTECTOR, FRONT FORK RH | OPT

51201-02B00

Unavailable

23

PROTECTOR, FRONT FORK LH | OPT

51202-02B00

Unavailable

24

CLAMP | OPT This part replaces 09407-20401.

09407-25402

$4.64

25

SPRING (HARD) | OPT

51171-02B30

Unavailable

26

REFER TO FIG.23B (F-7) FOR

SPECIAL NOTE

Unavailable
