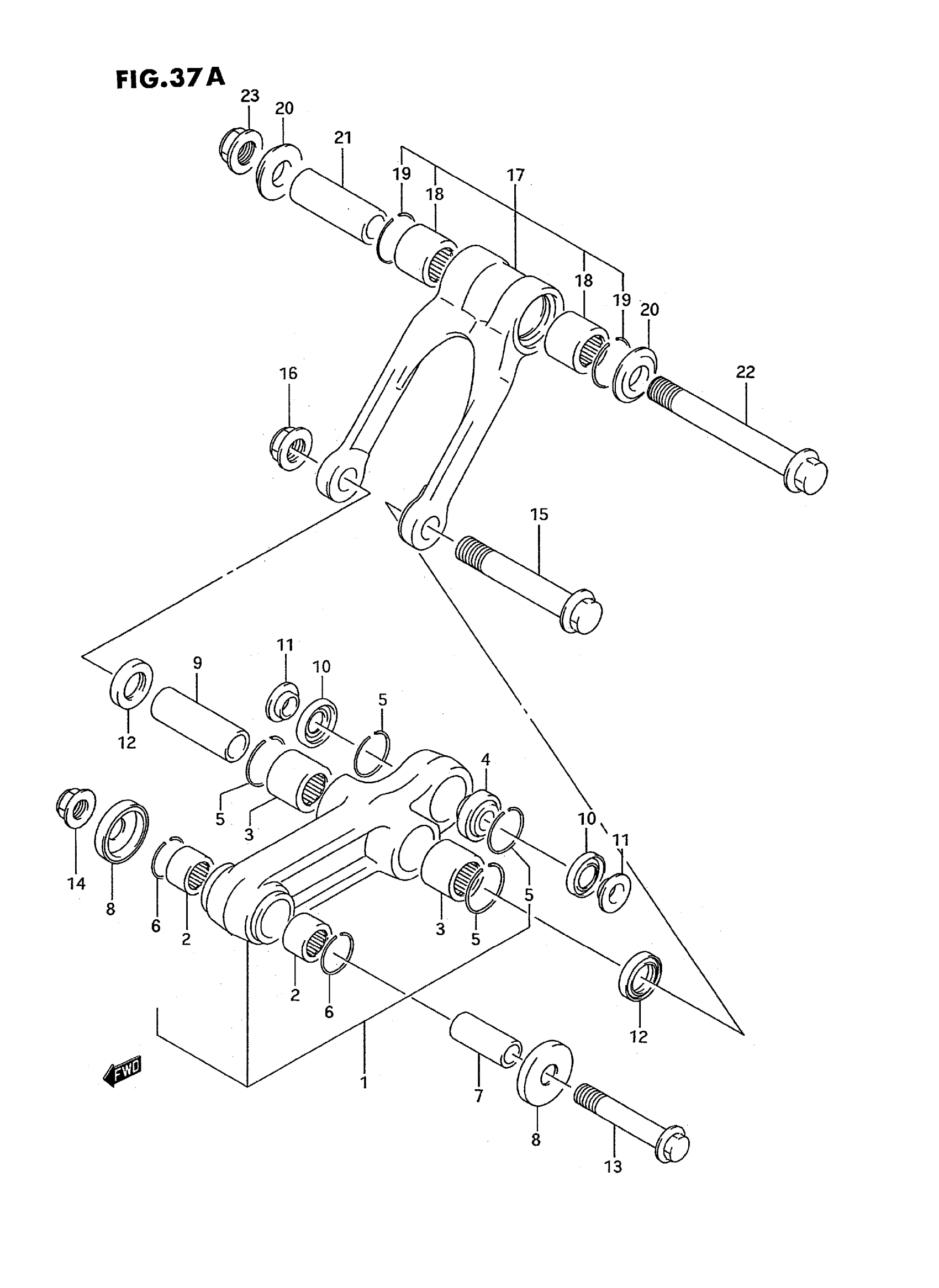

Suzuki RM80S (1995) CUSHION LEVER (MODEL L/M/N/P/R/S) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 6

62600-02840

Unavailable

2

BEARING, FRONT

09263-14027

$13.52

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

BEARING, REAR (10x24x14.5) | ->62175-00B00 This part replaces 62175-27C00.

62175-00B00

$61.15

4

BEARING, REAR

62175-00B00

$61.15

5

RING, STOPPER

62657-34A01

$1.99

6

RING, STOPPER FRONT

09381-20004

$1.65

7

SPACER, RR CUSHION LEVER FR

62317-02B40

$18.02

8

OIL SEAL | MODEL L This part replaces 62162-02B40.

62162-03B01

$9.37

8

OIL SEAL | MODEL M/N/P/R/S This part replaces 62162-03B00.

62162-03B01

$9.37

9

SPACER, CENTER

62626-02B40

$20.45

10

DUST SEAL, REAR

62226-28C00

$10.07

11

SPACER, REAR

62684-28C10

$14.85

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

13

BOLT, FRONT

62658-02B40

$9.17

14

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

15

SHAFT, CENTER

62621-02B40

$18.02

16

NUT This part replaces 08319-31128.

08319-3112A

$3.76

17

ROD SET, CUSHION LEVER | MODEL L/M/N/P This part replaces 62600-02850.

62600-03850

Unavailable

17

ROD SET, CUSHION LEVER | MODEL R/S; Includes Item(s) 18 - 19 This part replaces 62600-02851.

62600-03850

Unavailable

18

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

19

RING, STOPPER

62657-34A01

$1.99

20

SPACER, ROD

62647-02B40

$8.18

21

SPACER, ROD

62646-02B40

$20.45

22

BOLT

62622-02B40

$18.02

23

NUT This part replaces 08319-31128.

08319-3112A

$3.76
