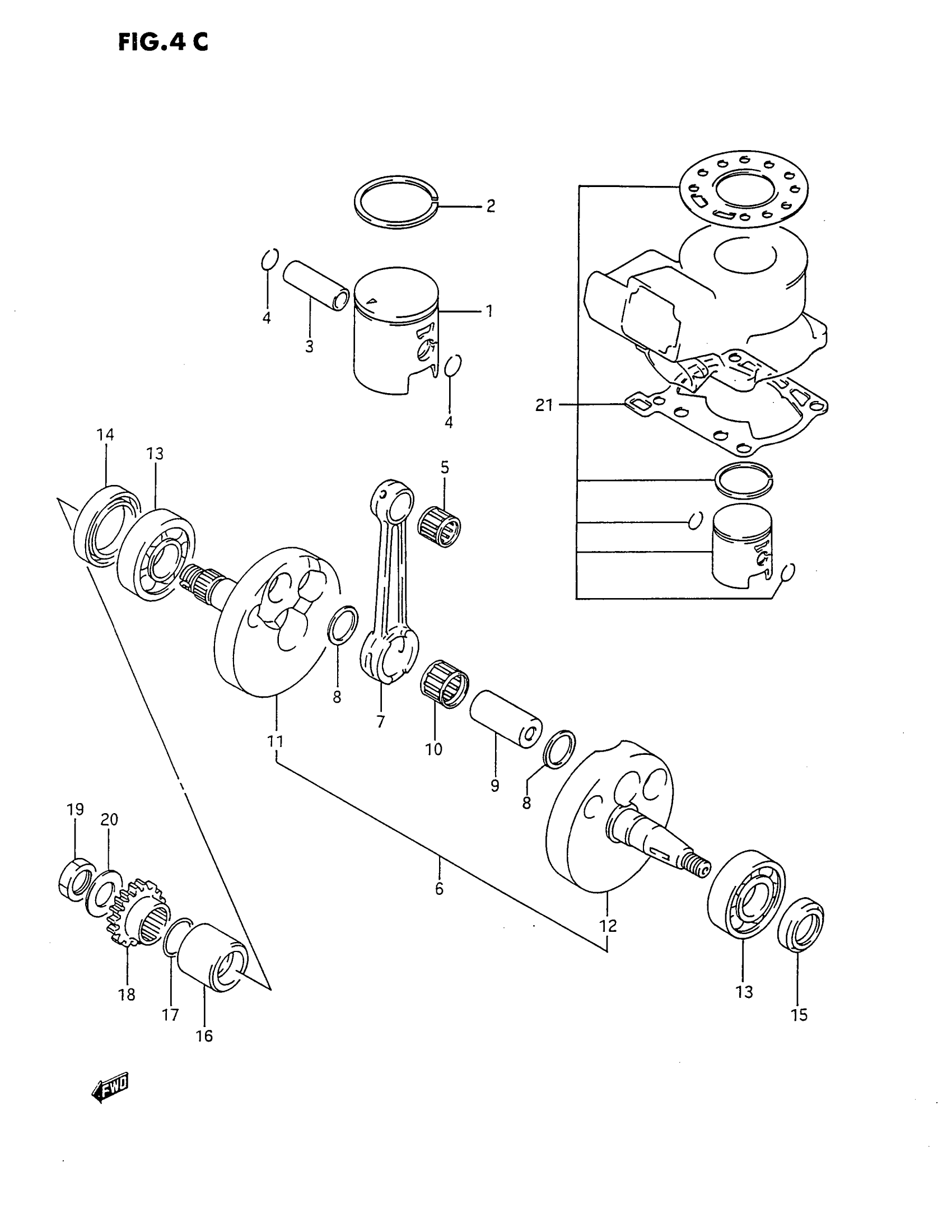

Suzuki RM80S (1995) CRANKSHAFT (MODEL L) Diagram

#

Description
Price

1

PISTON

12110-02B43-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-02B43-050.

12103-02821-050

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-02B43-100.

12103-02820-100

Unavailable

2

RING, PISTON

12141-02B70

$29.65

2

RING, PISTON (OS:0.5) | OPT

12141-02B70-050

Unavailable

2

RING, PISTON (OS:1.0) | OPT

12141-02B70-100

Unavailable

3

PIN, PISTON

12151-20910

$15.70

4

RING

09381-14001

$1.49

5

BEARING, PISTON PIN

09263-14016

$13.52

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-02B50

Unavailable

7

ROD, CONNECTING This part replaces 12161-02B51.

12161-02B52

Unavailable

8

WASHER

08211-20252

$3.83

9

PIN, CRANK

12211-02B50

$36.17

10

BEARING This part replaces 09263-20076.

09263-20079

Unavailable

11

CRANKSHAFT, RH

12221-02B50

Unavailable

12

CRANKSHAFT, LH

12261-02B50

Unavailable

13

BEARING (20X52X15)

09262-20082

$30.63

14

SEAL,OIL (30X40X7) This part replaces 09283-30060.

09283-30076

$15.32

15

OIL SEAL, LH (18X30X6)

09283-18006

$12.14

16

SPACER This part replaces 12359-27C10.

12359-27C30

$19.72

17

O RING

09280-20004

$1.58

18

GEAR, PRIMARY DRIVE (NT:18) This part replaces 21111-02B40.

21111-02B41

$62.32

19

NUT

09140-16019

$3.70

20

WASHER

09164-16002

$3.16

21

NO DESCRIPTION AVAILABLE | OPT This part replaces 12102-02821.

12102-02823

Unavailable

21

NO DESCRIPTION AVAILABLE | OPT This part replaces 12102-02821-050.

12102-02823-050

Unavailable

22

REFER TO FIG.4D (C- 6) FOR

SPECIAL NOTE

Unavailable
