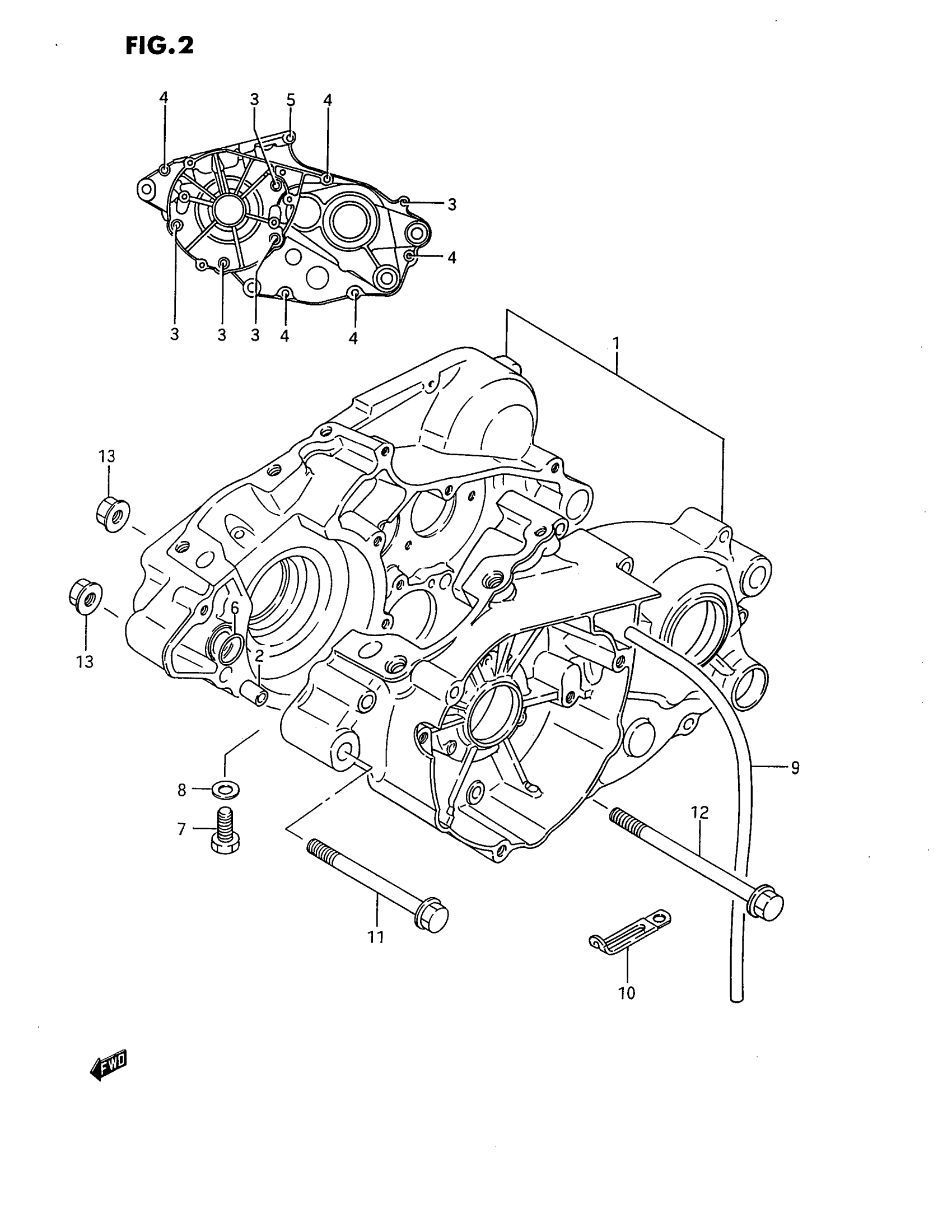

Suzuki RM80S (1995) CRANKCASE (MODEL G/H/J) Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 6

11305-02820

Unavailable

2

PIN

04211-09129

$1.65

3

SCREW (6X40)

02112-06407

$1.78

4

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

5

SCREW This part replaces 02112-06558.

02112-06557

$2.53

6

O RING

09280-14004

$1.65

7

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

8

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

9

HOSE 4X7X600 | L:600->350 This part replaces 09352-40703-600.

09352-40706-600

$5.11

10

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

11

BOLT (8X95)

09103-08183

Unavailable

12

BOLT (8X105)

09103-08184

Unavailable

13

NUT

09159-08067

$5.57

14

REFER TO FIG.2A (B- 9) FOR

SPECIAL NOTE

Unavailable
