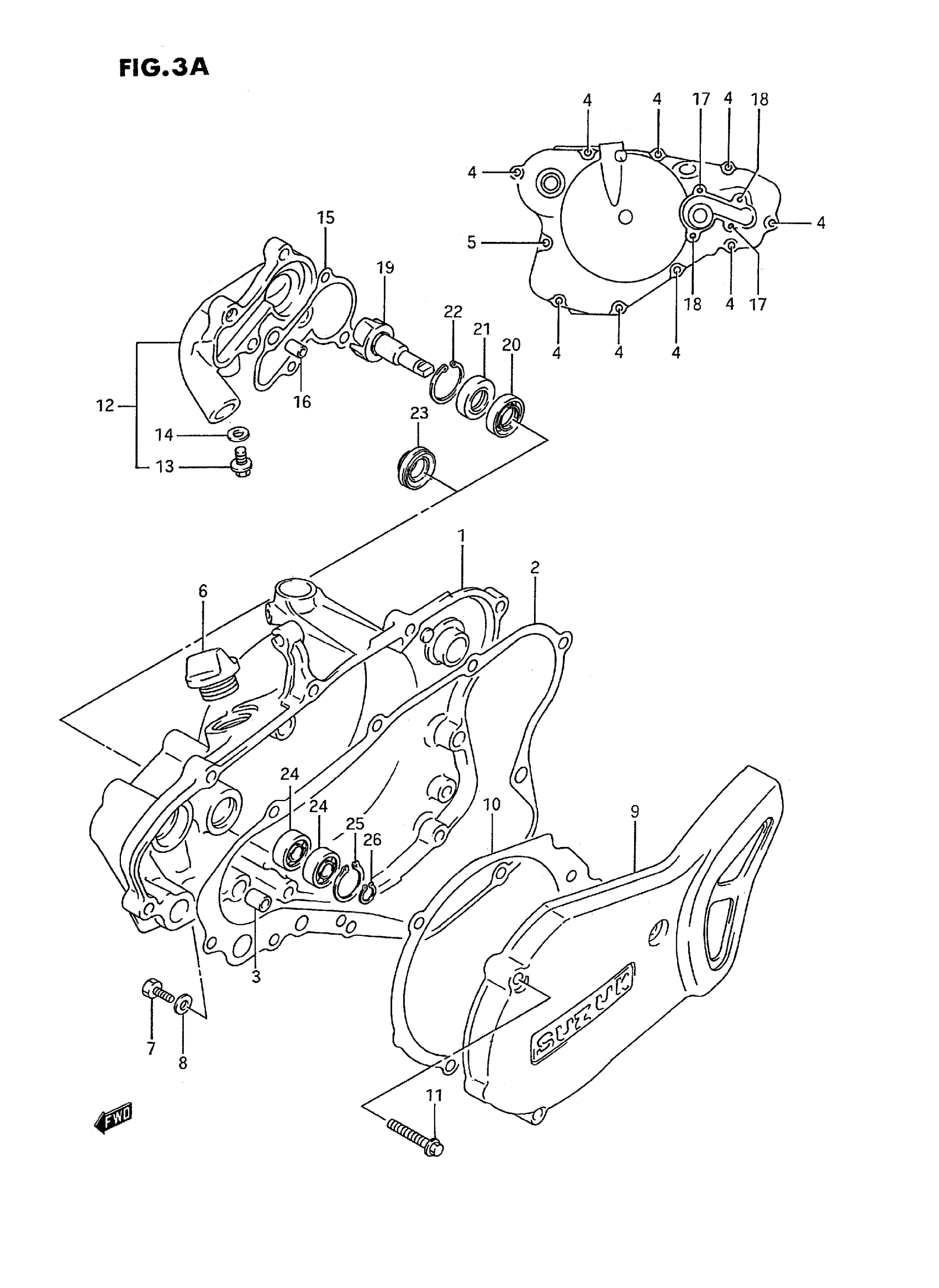

Suzuki RM80S (1995) CRANKCASE COVER- WATER PUMP (MODEL K/L/M/N/P/R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M/N This part replaces 11341-02B40.

11341-02B43

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P/R/S This part replaces 11341-02B42.

11341-02B43

Unavailable

2

.GASKET, CLUTCH COVER This part replaces 11482-27C00.

11482-27C02

$13.88

3

PIN

04211-09129

$1.65

4

BOLT | MODEL K/L/M/N/P

01547-06257

$2.03

4

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

5

BOLT | MODEL K/L/M/N/P

01547-06357

$2.03

5

BOLT, WATER PUMP | MODEL R/S This part replaces 01547-06353.

01547-0635B

$2.73

6

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

8

GASKET

09168-06004

$1.49

9

COVER, MAGNETO | MODEL K/L/M/N This part replaces 11351-02B40.

11351-02B41

Unavailable

9

COVER, MAGNETO | MODEL P/R/S

11351-02B41

Unavailable

10

GASKET, MAGNETO COVER | MODEL K This part replaces 11483-02B01.

11483-02B50

Unavailable

10

GASKET, MAGNETO COVER | MODEL L/M/N/P/R/S

11483-02B50

Unavailable

11

BOLT | MODEL K/L/M/N/P

01547-06257

$2.03

11

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

12

CASE, WATER PUMP | MODEL K/L This part replaces 17410-02B42.

17410-02B44

Unavailable

12

CASE, WATER PUMP | MODEL M/N This part replaces 17410-02B43.

17410-02B44

Unavailable

12

CASE, WATER PUMP | MODEL P/R/S; Includes Item(s) 13 - 14

17410-02B44

Unavailable

13

BOLT, DRAIN | MODEL K/L/M/N This part replaces 17415-00B00.

17415-43D00

$4.35

13

BOLT, DRAIN | MODEL P/R/S

17415-43D00

$4.35

14

GASKET | MODEL K/L This part replaces 17413-00B00.

17413-28C10

$2.14

14

GASKET | MODEL M/N/P/R/S

17413-28C10

$2.14

15

.GASKET, WATER PUMP CASE This part replaces 17431-02B41.

17431-02B42

$6.93

16

PIN (L:10) | MODEL K/L

04211-09109

$1.65

16

PIN (L:12) | MODEL M/N/P/R/S

04211-09129

$1.65

17

BOLT | MODEL K/L/M/N/P

01547-06207

$2.01

17

..BOLT | MODEL R/S This part replaces 01547-06203.

01547-0620B

$2.45

18

BOLT | MODEL K/L/M/N/P

01547-06307

$2.03

18

BOLT, FINAL GEAR CASE | MODEL R/S This part replaces 01547-06303.

01547-0630B

$2.73

19

IMPELLER, WATER PUMP This part replaces 17491-02B40.

17491-02B41

$27.75

20

OIL SEAL, INNER (12X24X3.6) | MODEL K

09282-12006

Unavailable

21

OIL SEAL, OUTER (12X24X6.4) | MODEL K

09289-12004

Unavailable

22

CIRCLIP | MODEL K

08331-41249

$2.26

23

OIL SEAL, WATER PUMP | MODEL L/M/N/P/R/S This part replaces 17461-28C10.

17461-03B00

$8.26

24

BEARING (8X19X6)

08113-06980

$12.67

25

CIRCLIP

09381-19003

$2.11

26

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78
