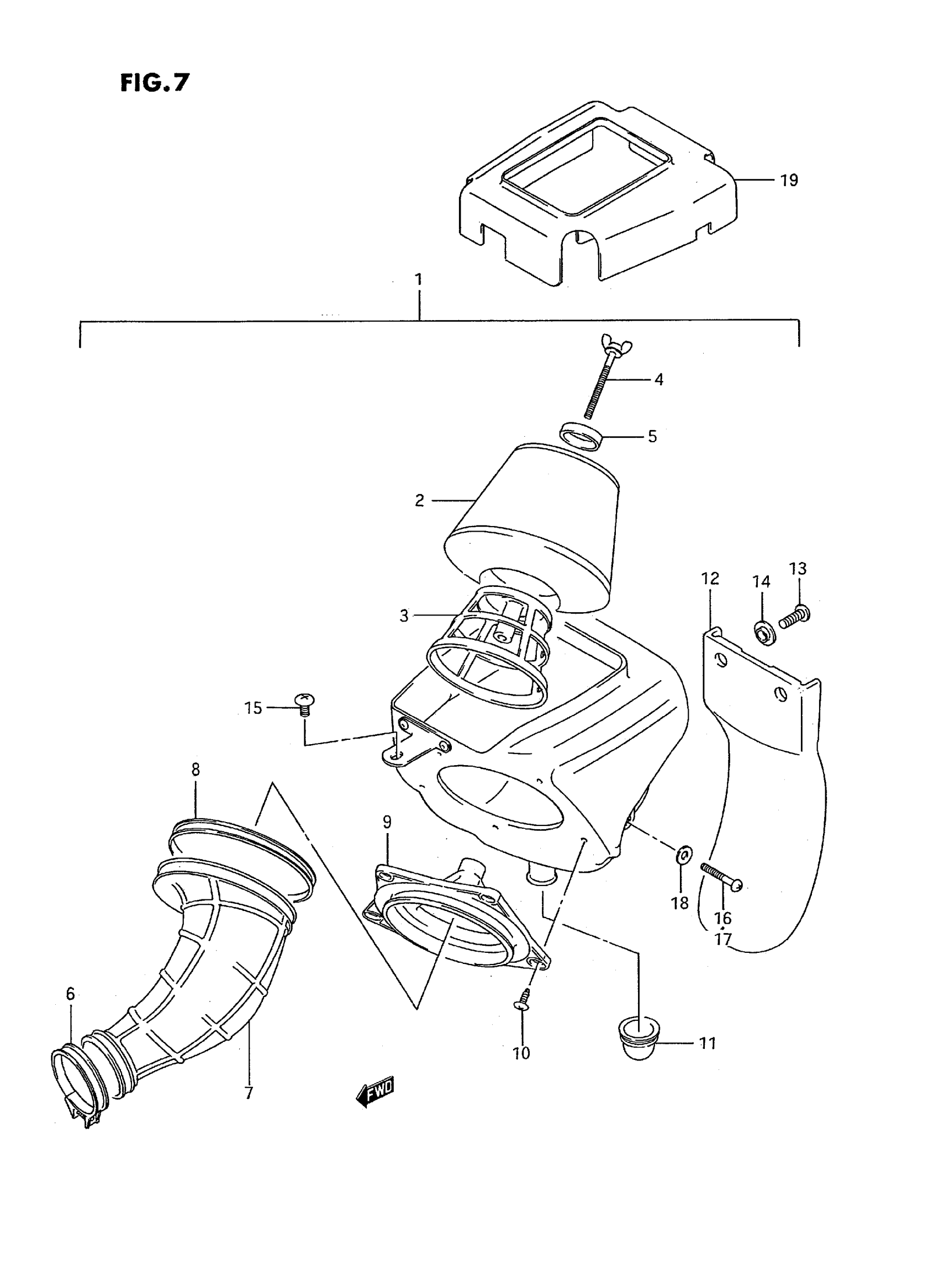

Suzuki RM80S (1995) AIR CLEANER (MODEL H/J/K/L/M/N/P/R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 13700-02B10.

13700-02B11

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 13700-02B40.

13700-02B41

Unavailable

1

CLEANER ASSY, AIR | MODEL L

13700-02B50

Unavailable

1

CLEANER ASSY, AIR | MODEL M/N This part replaces 13700-02B51.

13700-02B53

Unavailable

1

CLEANER ASSY, AIR | MODEL P/R This part replaces 13700-02B52.

13700-02B53

Unavailable

1

CLEANER ASSY, AIR | MODEL S; Includes Item(s) 2 - 14

13700-02B53

Unavailable

2

FILTER

13780-02B00

$41.15

3

HOLDER, FILTER

13791-02B00

$18.20

4

BOLT, WING

13831-02B00

$5.80

5

WASHER

13792-13A01

$4.34

6

CLAMP

09402-50208

$4.77

7

TUBE, OUTLET | MODEL H/J

13881-02B10

Unavailable

7

TUBE, OUTLET | MODEL K

13881-02B40

Unavailable

7

TUBE, OUTLET | MODEL L/M/N/P/R/S

13881-02B50

Unavailable

8

CLAMP This part replaces 13826-02B10.

09402-00303

$5.76

9

BASE, FILTER

13790-02B10

$24.42

10

SCREW | MODEL H/J/K/L/M/N This part replaces 03242-05124.

03241-0512A

$1.49

10

SCREW | MODEL P/R/S This part replaces 03241-05123.

03241-0512A

$1.49

11

TUBE, DRAIN

13873-18900

Unavailable

12

MUD GUARD

13738-02B00

$19.43

13

SCREW

02142-06167

$1.49

14

WASHER

13838-02B00

$3.56

15

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

16

SCREW | MODEL H/J

02142-06357

$1.78

17

BOLT | MODEL K

01547-06357

$2.03

17

BOLT | MODEL L/M/N/P/R/S This part replaces 01547-06453.

01547-0645B

$2.73

18

WASHER | MODEL H/J/K This part replaces 09160-06006.

09160-06084

$1.78

19

MUD GUARD | MODEL H/J/K/L/M/N This part replaces 13739-02B12.

13739-02B14

$36.17

19

MUD GUARD | MODEL P/R/S This part replaces 13739-02B13.

13739-02B14

$36.17
