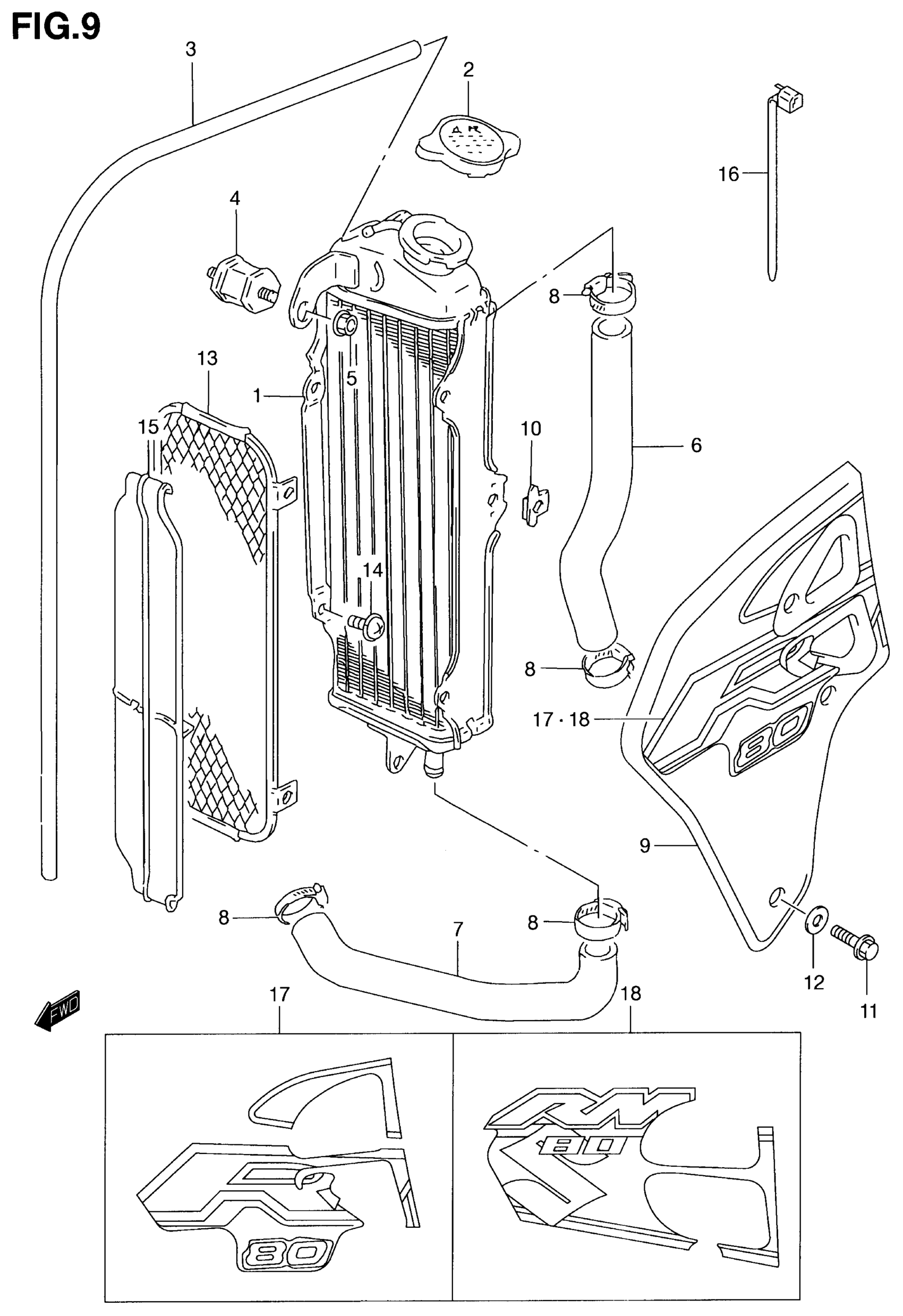

Suzuki RM80 (2001) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER

17710-02B04

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:1000?550 This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

4

BOLT,RADIATOR C This part replaces 17788-02B01.

17788-02B02

Unavailable

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

HOSE, INLET

17851-02B40

Unavailable

7

HOSE, OUTLET

17852-02B40

Unavailable

8

CLAMP

09402-28511

$6.88

9

COVER, RADIATOR (YELLOW) | MODEL Y

17761-03B00-25Y

Unavailable

9

COVER, RADIATOR (YELLOW) | MODEL K1

17761-03B00-YR1

Unavailable

10

PLATE, FITTING

17785-20930

Unavailable

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

12

WASHER (6.5X18X1.0)

09160-06028

$1.49

13

BUMPER, RADIATOR

17810-02B40

Unavailable

14

SCREW This part replaces 02112-76103.

02112-7610A

$2.28

15

LOUVER, RADIATOR

17830-20901

Unavailable

16

CLAMP (L:235)

09407-25401

$4.66

17

TAPE SET, RADIATOR COVER | MODEL Y

68670-03B90-N8J

Unavailable

18

TAPE SET, RADIATOR COVER | MODEL K1

68670-03BA0-DY9

Unavailable
