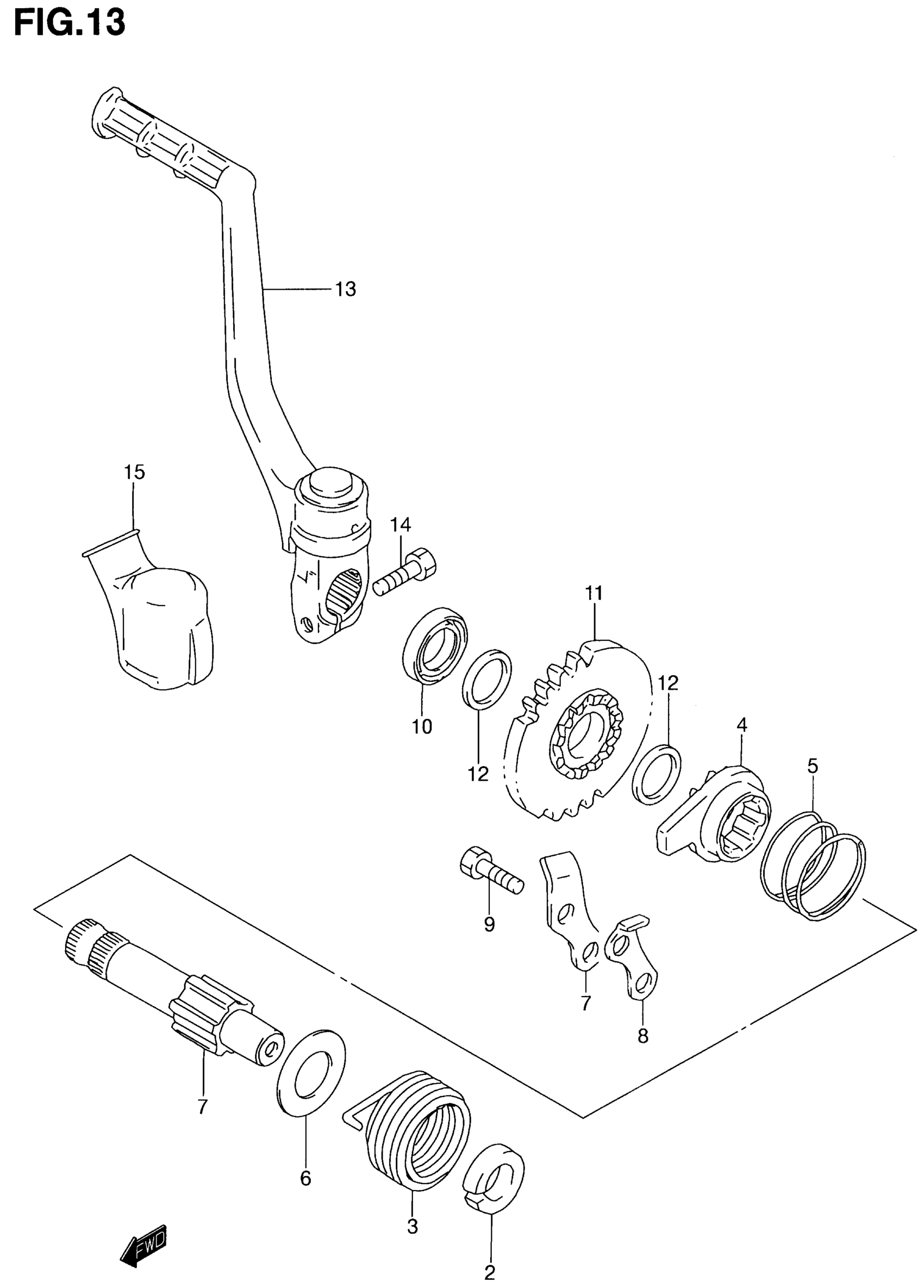

Suzuki RM80 (2001) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-02B03.

26211-02B04

$97.05

2

GUIDE, SPRING

26221-02B00

$3.25

3

SPRING

09448-35007

$10.77

4

STARTER, KICK This part replaces 26231-02B01.

26231-02B02

$36.17

5

SPRING

09440-31002

$2.22

6

PLATE

08211-12301

$2.03

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER

26233-40201

$5.52

9

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

10

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

11

GEAR, KICK DRIVE (NT:26)

26241-02B41

$83.92

12

WASHER (14X20X1.0)

09181-14139

$2.60

13

LEVER, KICK STARTER

26300-02B12

$125.18

14

BOLT

01500-06207

$2.28

15

COVER,JOINT This part replaces 26341-20401.

26341-20402

$8.52
