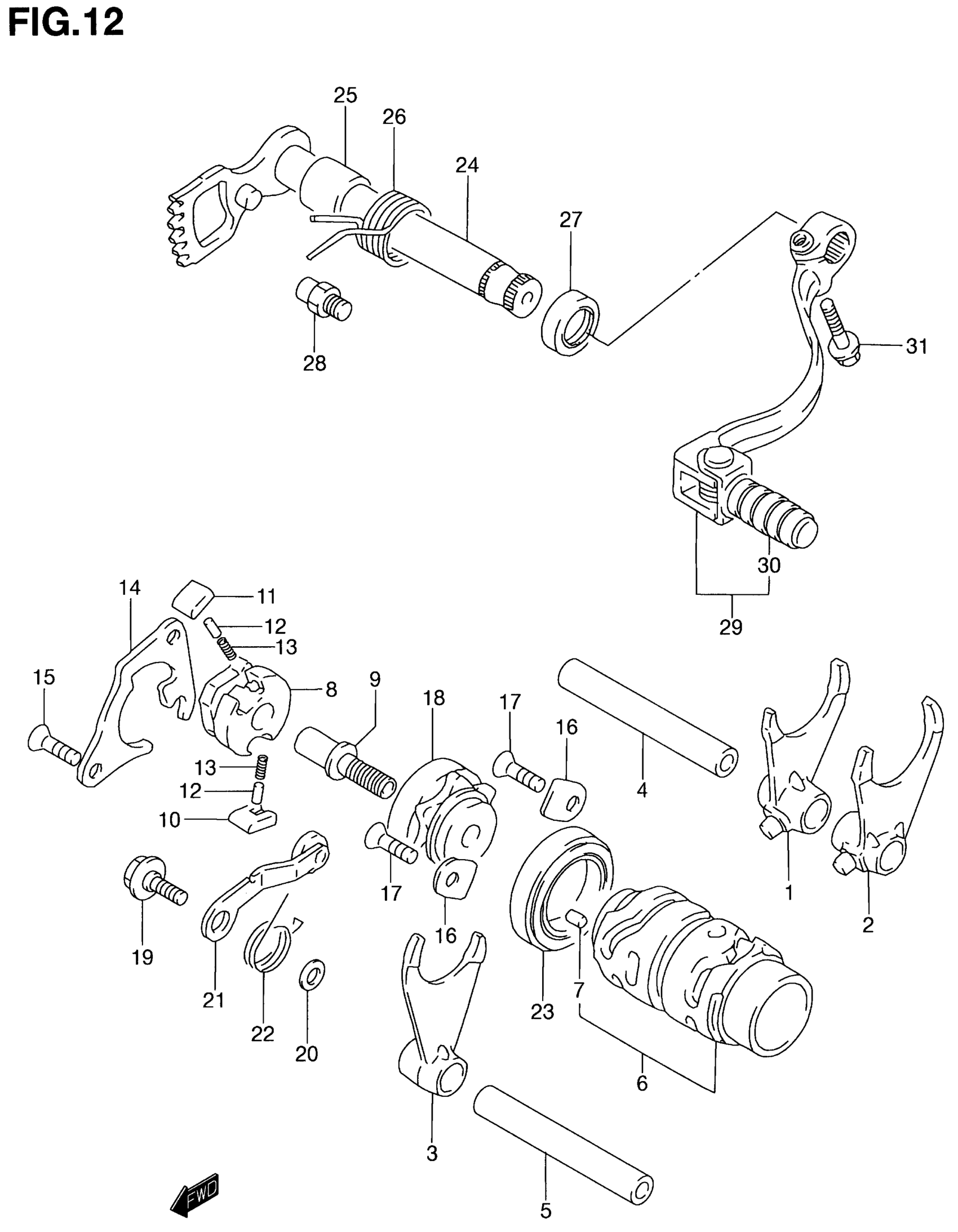

Suzuki RM80 (2001) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-02B41

$63.24

2

FORK, NO.2

25221-02B41

$53.75

3

FORK, NO.3

25231-02B40

$58.92

4

SHAFT, NO.1 (L:90)

25411-02B41

Unavailable

5

SHAFT, NO.2 (L:60)

25421-27C01

$18.43

6

CAM | Includes Item(s) 7

25310-03B00

Unavailable

7

PIN (4X13.8)

04221-04089

$1.49

8

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

9

PIN, SHIFT CAM DRIVEN GEAR

25313-27C02

$13.05

10

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

12

PIN (5X8)

09261-05003

$1.54

13

SPRING

09440-04003

$1.54

14

LIFTER, PAWL

25331-27C00

$24.20

15

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

16

RETAINER

24741-20A00

$2.81

17

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

18

PLATE, STOPPER

25381-28C20

Unavailable

19

BOLT, SHIFT CAM STOPPER

09111-06041

$2.61

20

WASHER

08211-06121

$1.54

21

STOPPER, CAM

25350-27C30

$15.98

22

SPRING

09448-18020

Unavailable

23

BEARING, RH

08140-69050

$35.66

24

SHAFT, GEAR SHIFTING

25510-28C30

$96.22

25

SPACER (14X20X17.5)

09180-14016

$3.96

26

SPRING

09444-26013

$3.10

27

OIL SEAL (14X22X6)

09283-14006

$6.70

28

STOPPER, ARM | MODEL Y This part replaces 25671-01000.

25671-01011

$4.48

28

STOPPER, ARM | MODEL K1

25671-01011

$4.48

29

LEVER ASSY,GEAR | Includes Item(s) 30 This part replaces 25600-02B43.

25600-02B44

Unavailable

30

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$22.85

31

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73
