Description

Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-27C01

$292.48

2

PISTON/CUP SET

59600-27820

$60.97

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-14500

$11.87

10

UNION This part replaces 09360-10040.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE This part replaces 59480-02B21.

59480-02B22

Unavailable

13

ADAPTER, BRAKE HOSE

59290-14501

$36.17

14

CLAMP, FR BRAKE

59243-03B01

$6.63

15

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

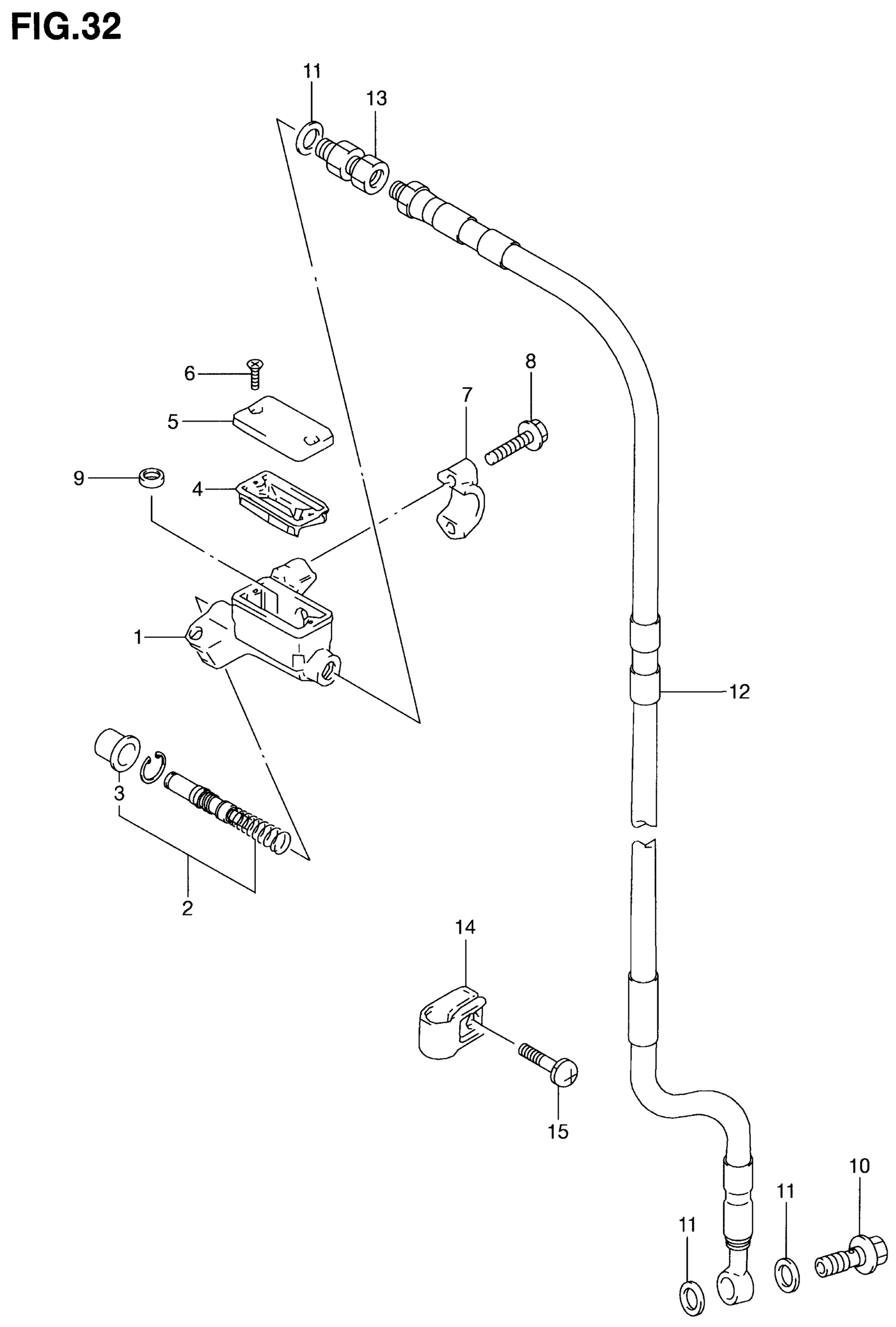

Suzuki RM80 (2001) FRONT MASTER CYLINDER Diagram
