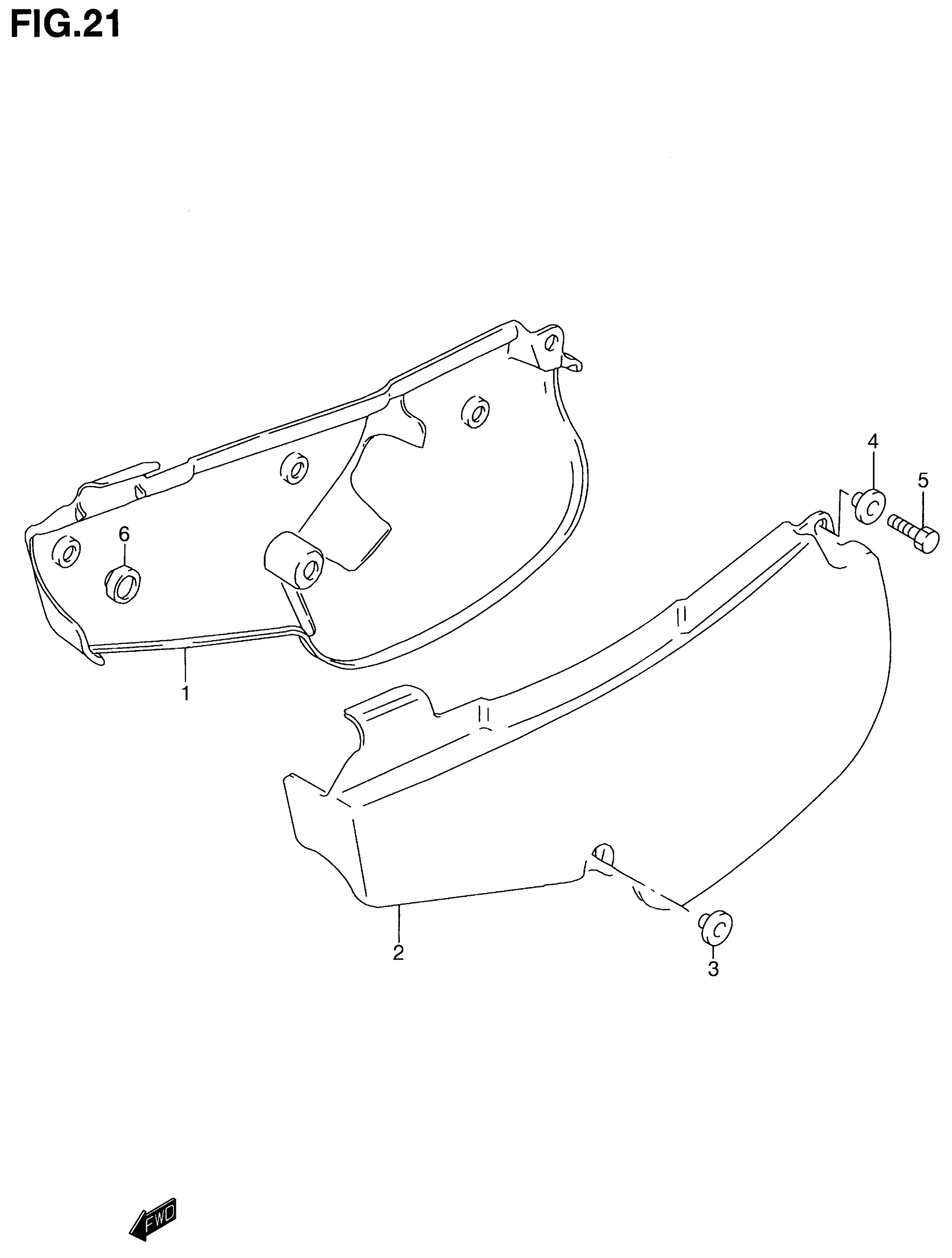

Suzuki RM80 (2001) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE) | MODEL Y This part replaces 47111-03B60-30H.

47111-03B70-30H

$73.38

1

COVER, FRAME RH (YELLOW) | MODEL K1 This part replaces 47111-03B60-YR1.

47111-03B70-YU1

$75.20

2

COVER, FRAME LH (WHITE) | MODEL Y This part replaces 47211-03B60-30H.

47211-03B70-30H

$74.75

2

COVER, FRAME LH (YELLOW) | MODEL K1 This part replaces 47211-03B60-YR1.

47211-03B70-YU1

$76.62

3

WASHER, LOWER

09169-06010

$2.60

4

WASHER, REAR

09160-06066

$1.89

5

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

6

CUSHION, RH FRONT

09321-10024

$5.29
