2001 Suzuki RM80 Crankcase Cover- Water Pump Diagram

← All diagrams

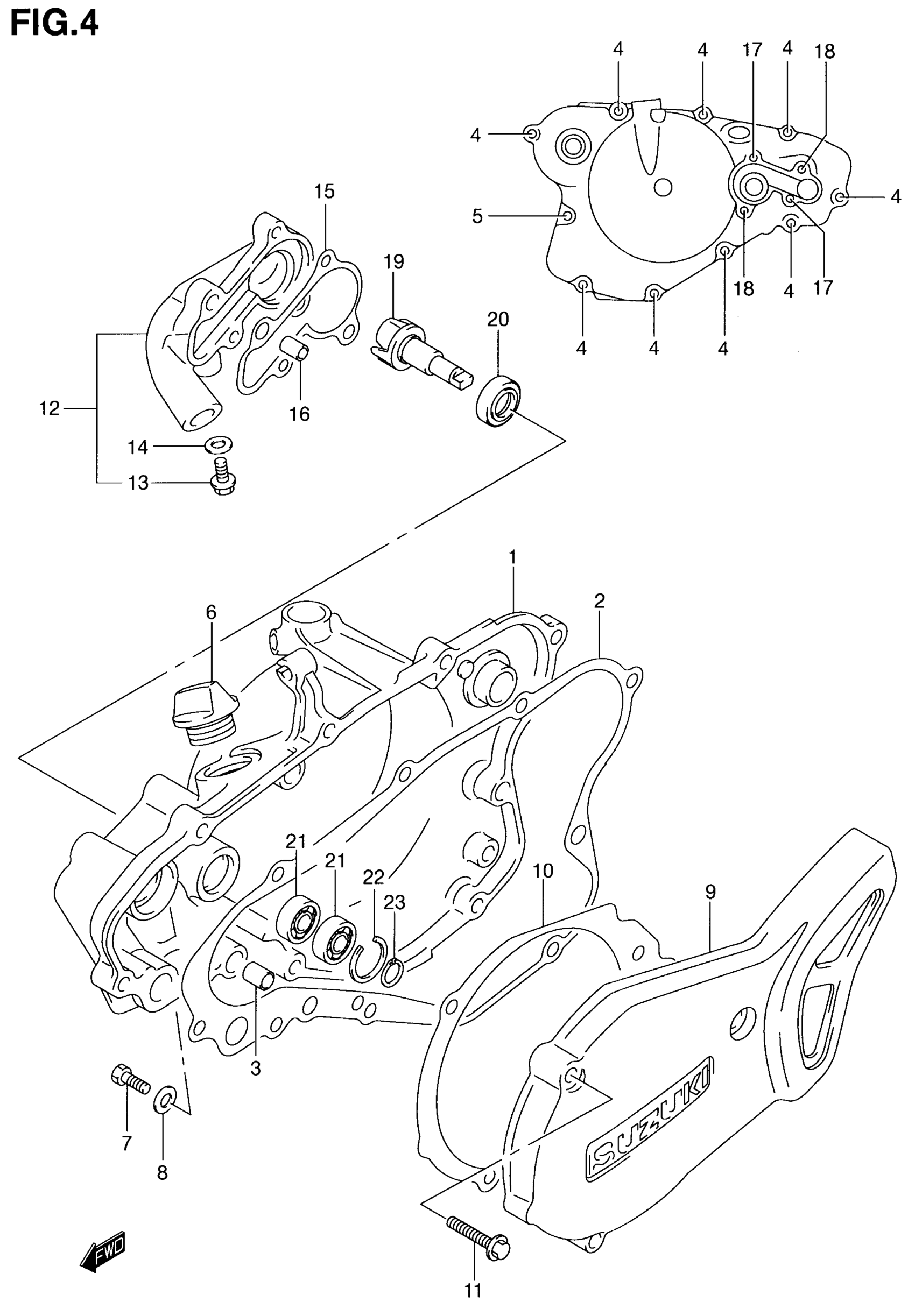

Find the part on the Crankcase Cover- Water Pump diagram for your 2001 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki RM80 Crankcase Cover- Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 11341-02B42.

11341-02B43

1
Out of stock

2

.GASKET, CLUTCH COVER This part replaces 11482-27C00.

11482-27C02

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

9
Out of stock

5

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

1
Out of stock

6

PLUG SET This part replaces 09200-20810.

09200-20811

1
Out of stock

7

SCREW, OIL LEVEL (6X10)

09128-06044

1
Out of stock

8

GASKET

09168-06004

1
Out of stock

9

COVER, MAGNETO

11351-02B41

1
Out of stock

10

GASKET, MAGNETO COVER

11483-02B50

1
Out of stock

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

3
Out of stock

12

CASE, WATER PUMP | Includes Item(s) 13 - 14

17410-02B44

1
Out of stock

13

BOLT, DRAIN

17415-43D00

1
Out of stock

14

GASKET

17413-28C10

1
Out of stock

15

.GASKET, WATER PUMP CASE This part replaces 17431-02B41.

17431-02B42

1
Out of stock

16

PIN (L:12)

04211-09129

2
Out of stock

17

..BOLT This part replaces 01547-06203.

01547-0620B

2
Out of stock

18

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

2
Out of stock

19

IMPELLER, WATER PUMP This part replaces 17491-02B40.

17491-02B41

1
Out of stock

20

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

1
Out of stock

21

BEARING (8X19X6)

08113-06980

2
Out of stock

22

CIRCLIP

09381-19003

1
Out of stock

23

CIRCLIP This part replaces 08331-31086.

08331-31089

1
Out of stock
