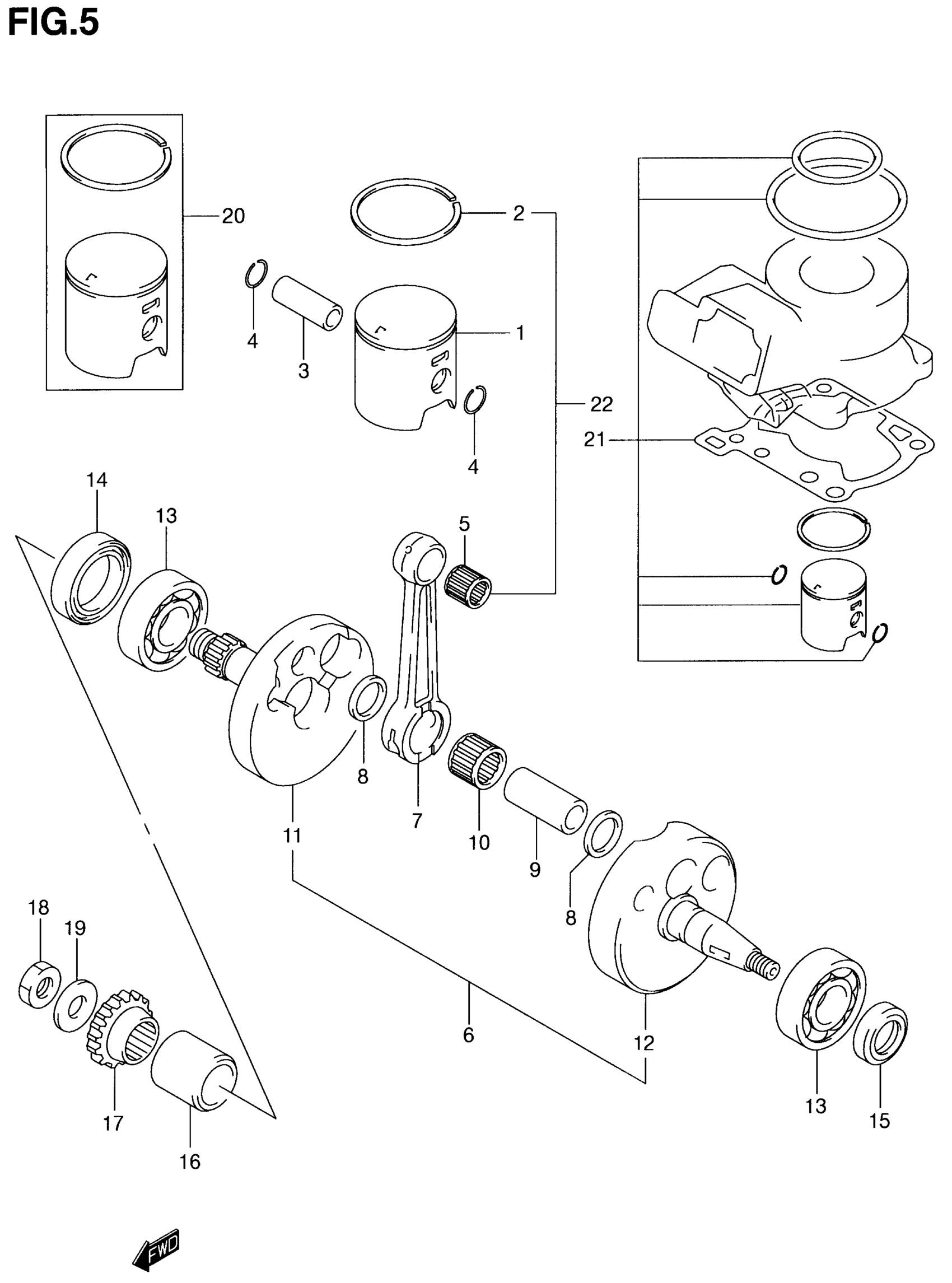

Suzuki RM80 (2001) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12110-03B00-0F0

Unavailable

2

RING, PISTON

12141-02B70

$33.47

3

PIN, PISTON

12151-20910

$17.23

4

RING

09381-14001

$1.46

5

BEARING, PISTON PIN

09263-14016

$12.57

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-03B00

Unavailable

7

ROD, CONNECTING

12161-02B52

Unavailable

8

WASHER

08211-20252

$2.70

9

PIN, CRANK

12211-02B50

$40.83

10

BEARING (20X26X13.7)

09263-20079

Unavailable

11

CRANKSHAFT, RH This part replaces 12221-03B00.

12221-03B01

Unavailable

12

CRANKSHAFT, LH This part replaces 12261-03B00.

12261-03B01

Unavailable

13

BEARING (20X52X15)

09262-20082

$33.28

14

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$14.23

15

SEAL,OIL This part replaces 09283-18007.

09283-18010

$5.52

16

SPACER, PRI DRIVE GEAR

12359-27C30

$22.25

17

GEAR, PRIMARY DRIVE (NT:18)

21111-02B41

$70.33

18

NUT

09140-16019

$3.44

19

WASHER

09164-16002

$3.00

20

PISTON SET (OS:0.5) | OPT P3

12100-03B00-050

Unavailable

20

PISTON SET (OS:1.0) | OPT P3

12100-03B00-100

Unavailable

21

TOP END KIT, ENGINE (STD) | OPT P3

12100-03830

Unavailable

21

TOP END KIT, ENGINE (OS:0.5) | OPT P3

12100-03830-050

Unavailable

22

PISTON KIT (STD) | OPT P28

12100-03810

Unavailable

22

PISTON KIT (OS:0.5) | OPT P28

12100-03810-050

Unavailable

22

PISTON KIT (OS:1.0) | OPT P28

12100-03810-100

Unavailable
