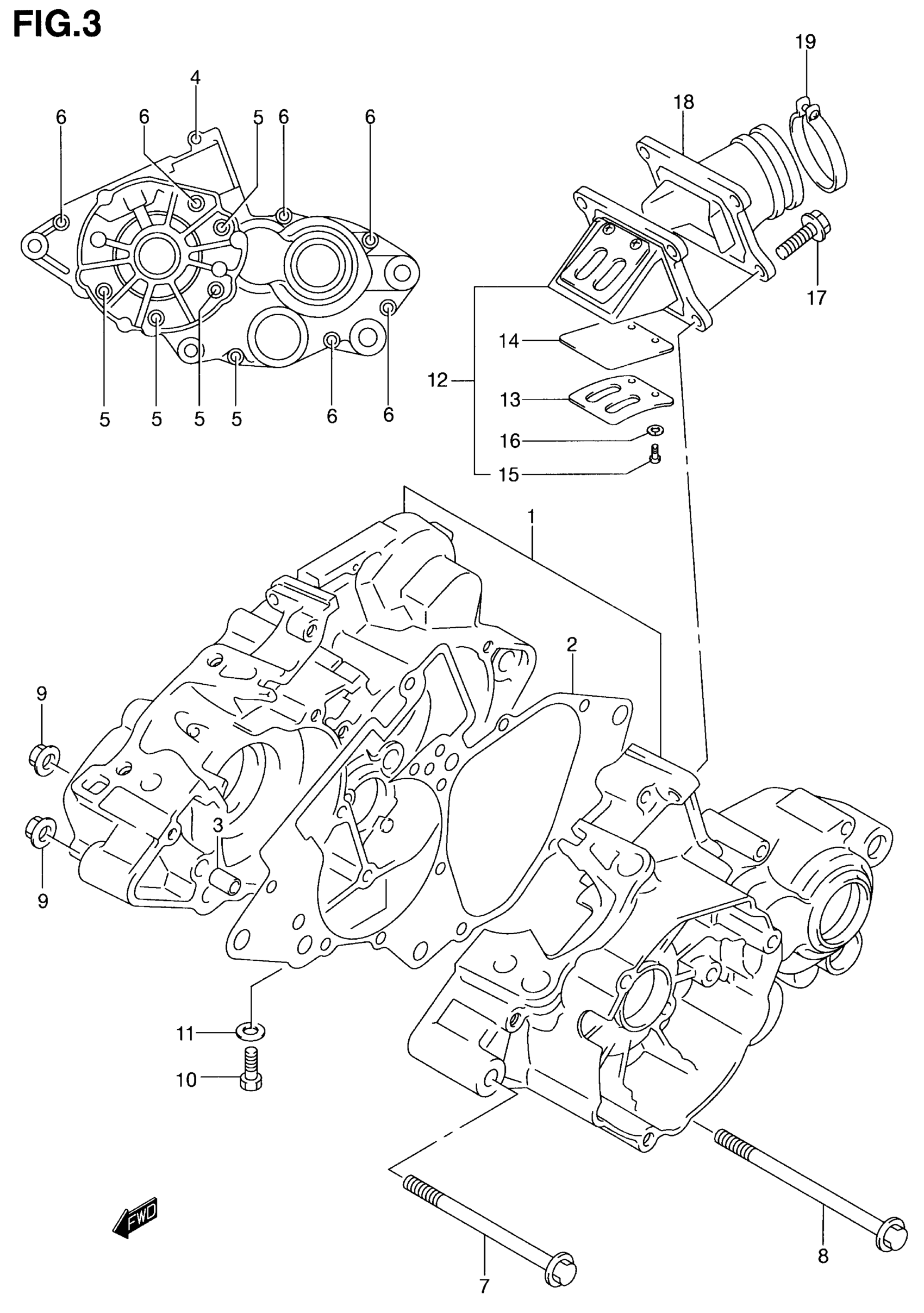

Suzuki RM80 (2001) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11300-03811.

11300-03812

Unavailable

2

GASKET, CRANKCASE

11481-02B40

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

6

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

7

BOLT (8X92)

09103-08295

Unavailable

8

BOLT (8X102)

09103-08296

$7.11

9

NUT

09159-08067

$5.57

10

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

11

GASKET (8.2X14X1)

09168-08016

$1.65

12

VALVE ASSY,REED | Includes Item(s) 13 - 16 This part replaces 13150-02B50.

13150-02B51

$143.92

13

STOPPER, REED VALVE

13152-02B50

$7.88

14

VALVE, REED

13153-02B40

$13.20

15

SCREW This part replaces 02112-03063.

02112-0306B

$1.59

16

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

17

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

18

PIPE,INTAKE This part replaces 13110-02B50.

13110-02B51

Unavailable

19

CLAMP This part replaces 09402-42306.

09402-42303

$4.77
